Refer to page 4-13 for the procedure for servic-
ing the convection fan motor.
1. Unplug range or disconnect power.
2. Disconnect one of the wires from the con-
vection fan motor terminals.
3. Set the ohmmeter to the R x 1 scale.
4. Touch the ohmmeter test leads to the
convection fan motor terminals. The meter
should indicate between 14 and 22 Ω.

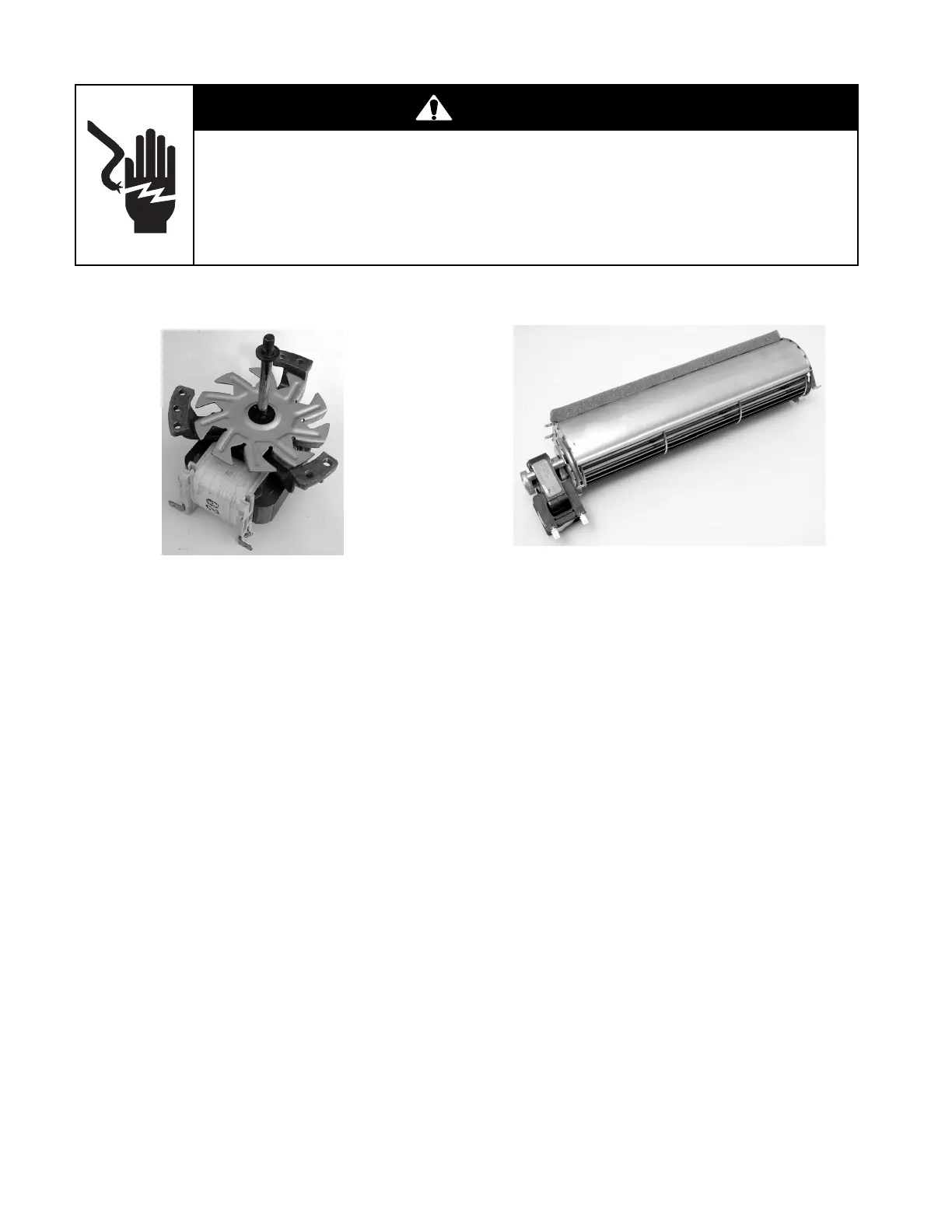

CONVECTION FAN MOTOR COOLING FAN MOTOR
Refer to page 4-15 for the procedure for servic-
ing the cooling fan.
1. Unplug range or disconnect power.
2. Disconnect one of the wires from the cool-
ing fan motor terminals.
3. Set the ohmmeter to the R x 1 scale.
4. Touch the ohmmeter test leads to the
cooling fan motor terminals. The meter
should indicate between 11 and 17 Ω.
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
