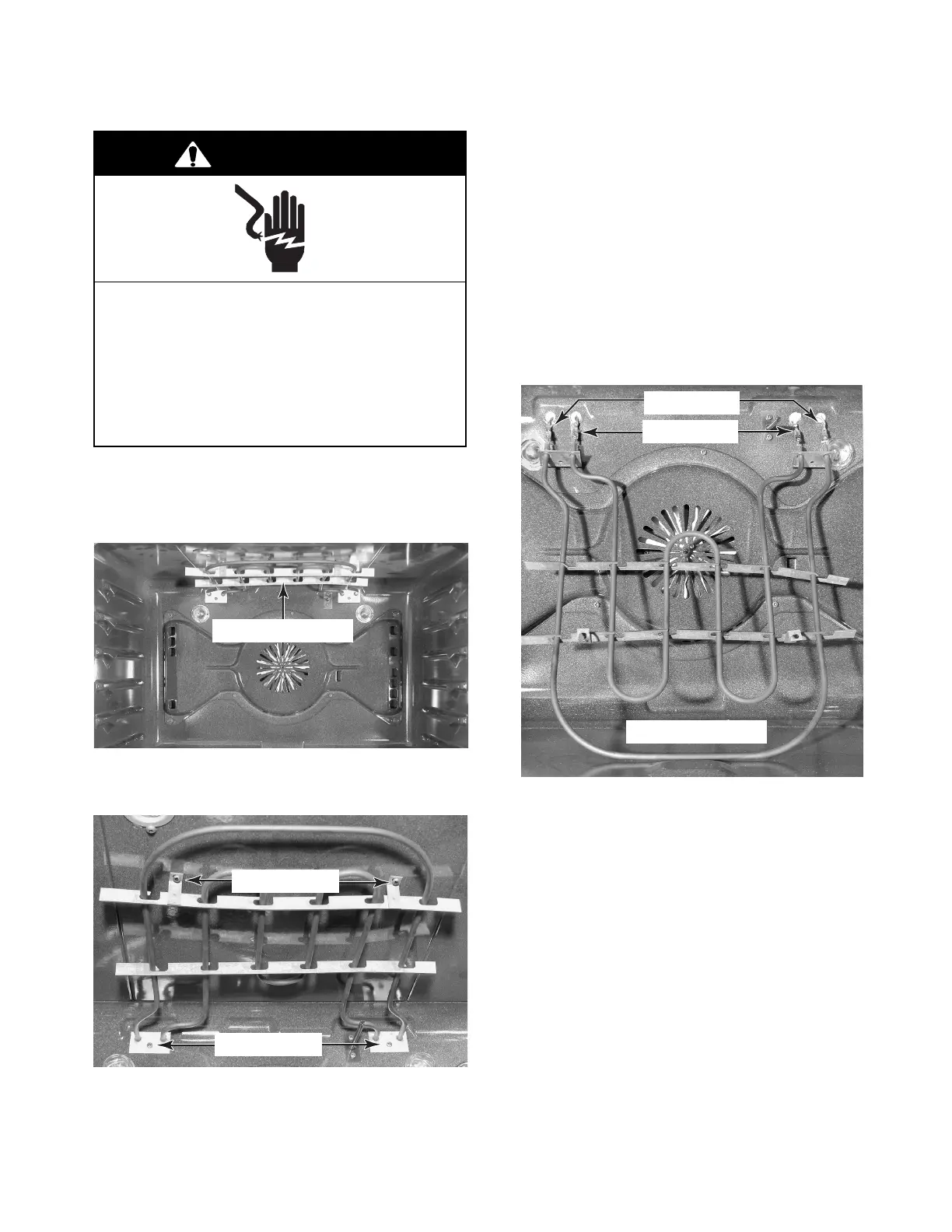

REMOVING THE DUAL BROIL ELEMENT
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
WARNING
1. Unplug range or disconnect power.
2. Open the oven door and remove the racks
from inside the oven.
3. Remove the two front and the two rear
dual broil element support screws.
4. Pull the dual broil element forward so that
the wire connectors are inside the oven
cavity.
5. Disconnect the four wires from the inner
and outer element terminals of the dual
broil element. NOTE: When you discon-
nect the wires, be careful not to allow them
to pull back behind the access holes where
you will not be able to retrieve them with-
out removing the unit from its mounting
location.
Rear Screws
Front Screws
Inner Wires
Outer Wires
Dual Broil Element
Dual Broil Element
