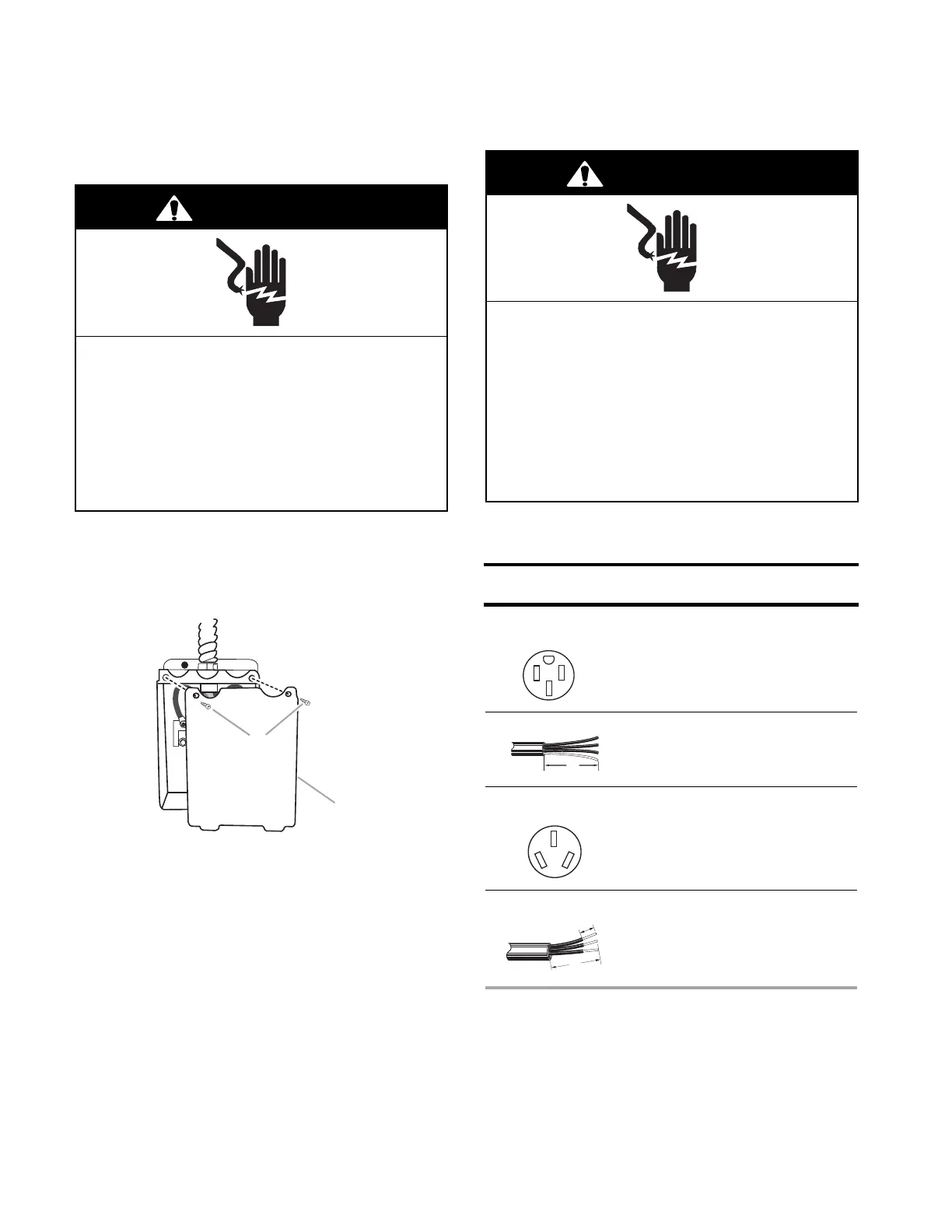

INSTALLATION INSTRUCTIONS
ELECTRICAL CONNECTION
Power Supply Cord
Electrical Shock Hazard
Disconnect power before servicing.
Use a new 40 amp power supply cord.
Plug into a grounded outlet.
Failure to follow these instructions can
result in death, fire, or electrical shock.
WARNING
1. Disconnect power.
2. Remove the hold-down screws and termi-
nal block cover from the back of the range.
3. Complete installation following instructions
for your type of electrical connection:
4-wire (recommended)
3-wire (if 4-wire is not available)
A. Hold-down screws
B. Terminal block cover
A
B
Electrical Shock Hazard
Disconnect power before servicing.
Use 8 gauge copper or 6 gauge
aluminum wire.
Electrically ground range.
Failure to follow these instructions can
result in death, fire, or electrical shock.
WARNING
If your home has: And you will be
connecting to:
Go to Section:
4-wire receptacle
(NEMA type 14-50R)
A UL listed,
250-volt
minimum,
40 amp, range
power supply
cord
4-wire connection:
Power supply cord
4-wire direct A fused
disconnect or
circuit breaker
box
4-wire connection:
Direct wire
3-wire receptacle
(NEMA type 10-50R)
A UL listed,
250-volt
minimum,
40 amp, range
power supply
cord
3-wire connection:
3-wire connection:
Power supply cord
3-wire direct A fused
disconnect or
circuit breaker
box
Direct wire
5"
(12.7 cm)
3"
(7.6 cm)
1"
(2.5 cm)
Electrical Connection Options
Direct Wire
