e) Remove the three screws from the top
retainer and remove the retainer from
the liner.

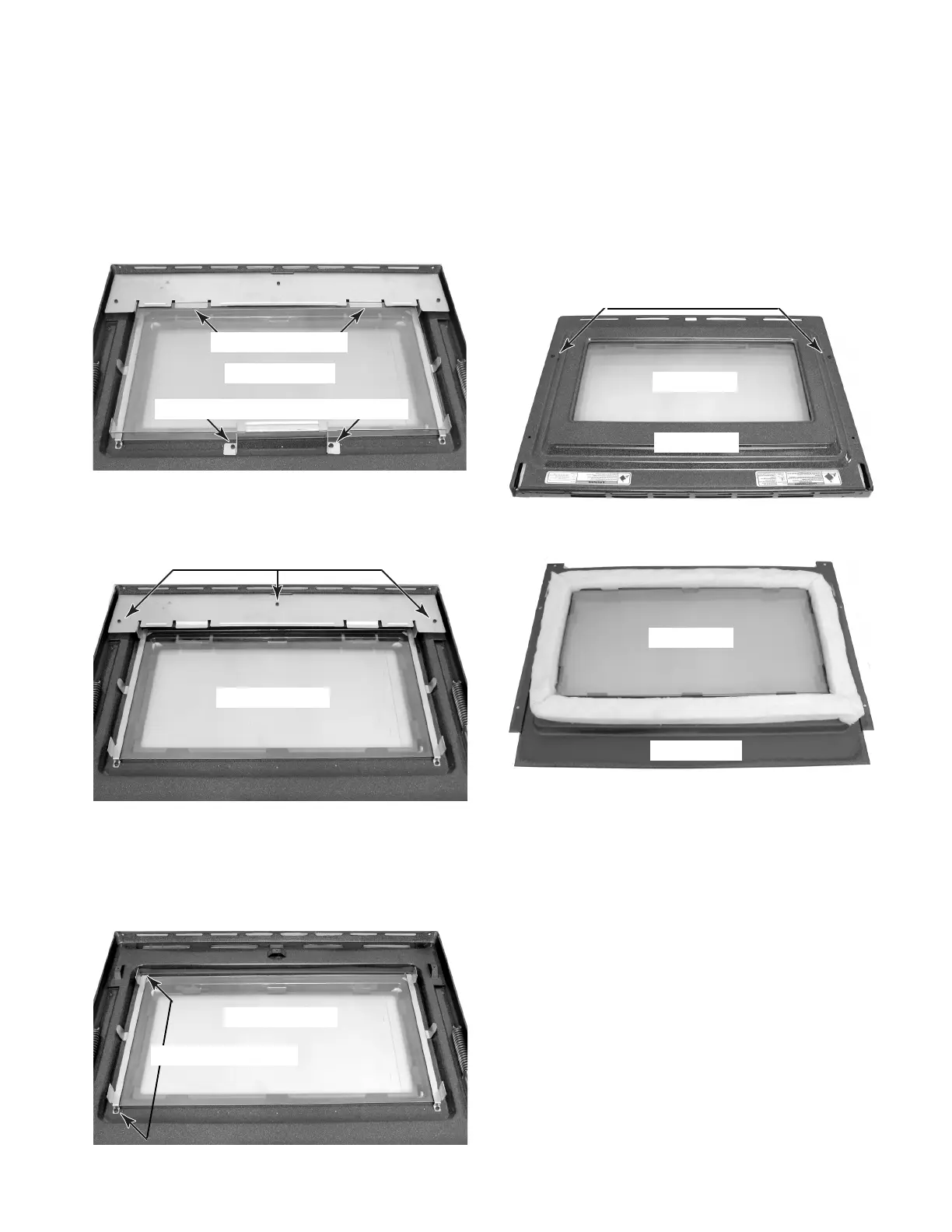

6. To remove the inner oven door glass:
a) Remove the decorative glass and
handle from the door liner (see step 3).
b) Remove the two hinges (see step 4).
c) Remove the first piece of outer door
glass (perform steps 5b through 5d).
d) Remove the two inner door liner screws
and lift the inner liner off the outer liner.
Lower Outer Glass Bracket Screws
Outer Glass #1
f) For the second piece of outer oven
glass, remove the two screws from the
left bracket, then remove the bracket
and second piece of glass from the
door liner.
Top Retainer Screws
e) Lift the inner oven door glass off the
outer liner.
Outer Glass #2
Outer Glass #2
Left Bracket Screws
b) Position the door liner with the outer
oven glass facing up, as shown.
c) Remove the two screws from the lower
bracket for the outer oven glass.
d) Slide the lower bracket off the first piece
of outer oven glass, then slide the glass
out of the top retainer tabs.
Inner Glass
Inner Liner
Inner Liner Screws
Inner Glass
Outer Liner
Top Retainer Tabs
To Next Page
