5.2.2. Crane
When it is unpacked the machine can be lifted by means of a crane and an adequately
dimensioned lifting beam. Figure 14 shows the regulations for transport by crane. Please also
refer to the Table 12 for the dimensions and descriptions of the Figure 14.

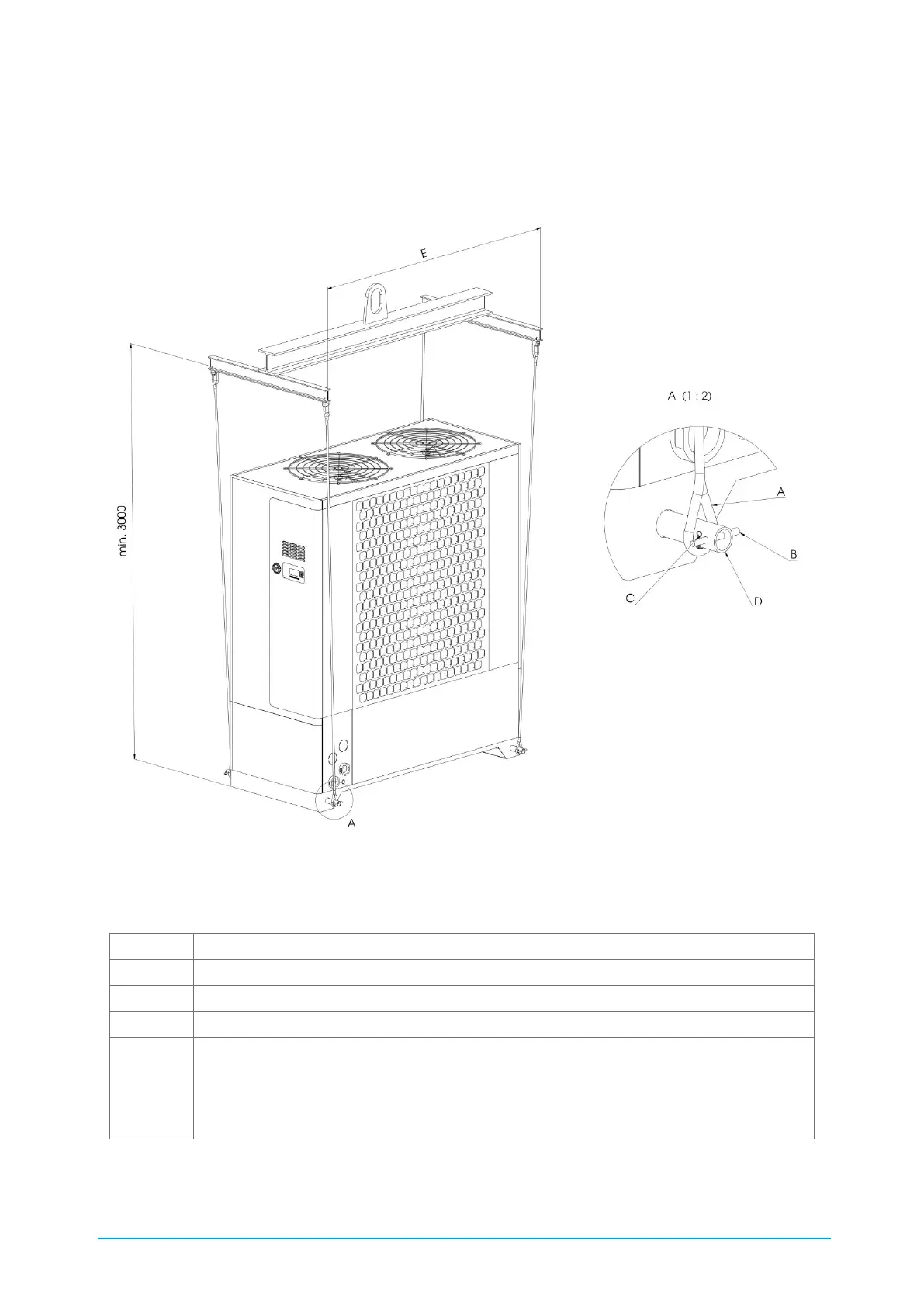

Figure 14: C6841-0 crane transport cBoxX 30 - 100
Table 12: Description of figure C6841-0
Transport sling or rope (do not use chains)
Pipe diameter: 30 – 50 mm, Wall thickness: min. 3 mm, Length: ~ 1000 mm
1300 mm (cBoxX 30 – cBoxX 60)
1900 mm (cBoxX 70 – cBoxX 100)
1400 mm (cBoxX 120 – cBoxX 160)
1900 mm (cBoxX 180 – cBoxX 200)
