6.2.12. Installation
6.2.13. Hydraulic installation
The system designer is responsible for choosing the material and the cross-section of the
hydraulic connections between the chiller and the application. Other dependent factors include
the accepted pressure loss in the connection lines and the available pump pressure. When
designing the connections attention must also be paid to the minimum flow rate to be maintained
and sufficient resistance to the maximum pump pressure.
In the case of chillers equipped with an internal tank the cold water cycle must be hydraulically
closed.

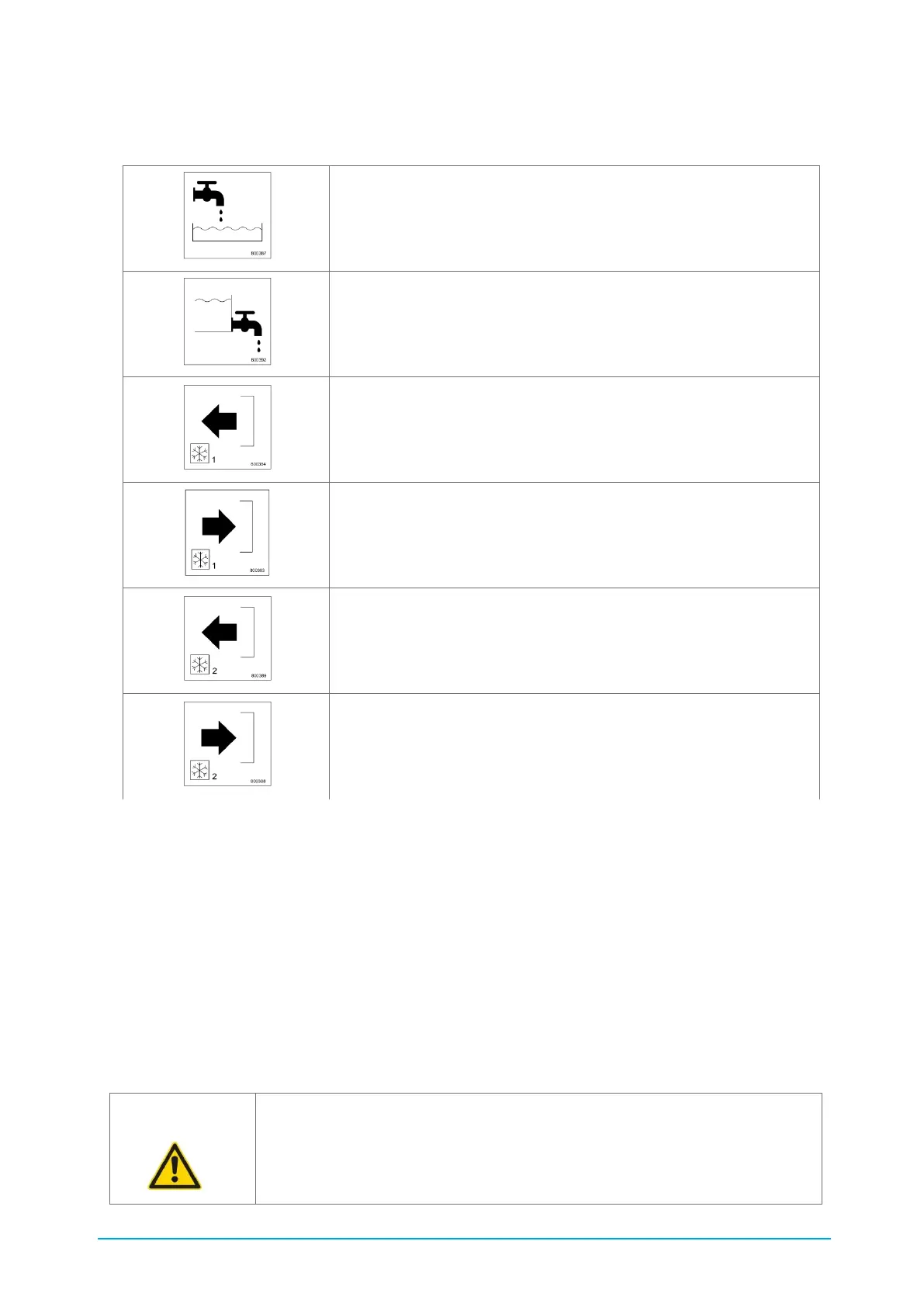

Filling and feed (topping up)
Draining
Unit outlet cold water circuit 1 (supply line)
Unit outlet cold water circuit 1 (return line)
Unit outlet cold water circuit 2 (supply line)
Unit outlet cold water circuit 2 (return line)
ATTENTION! Galvanised pipes must not be used if water-glycol mixtures are
used! Formation of decomposition products, which result in silting up of the
system!
