59 / 89 83000102.Ki

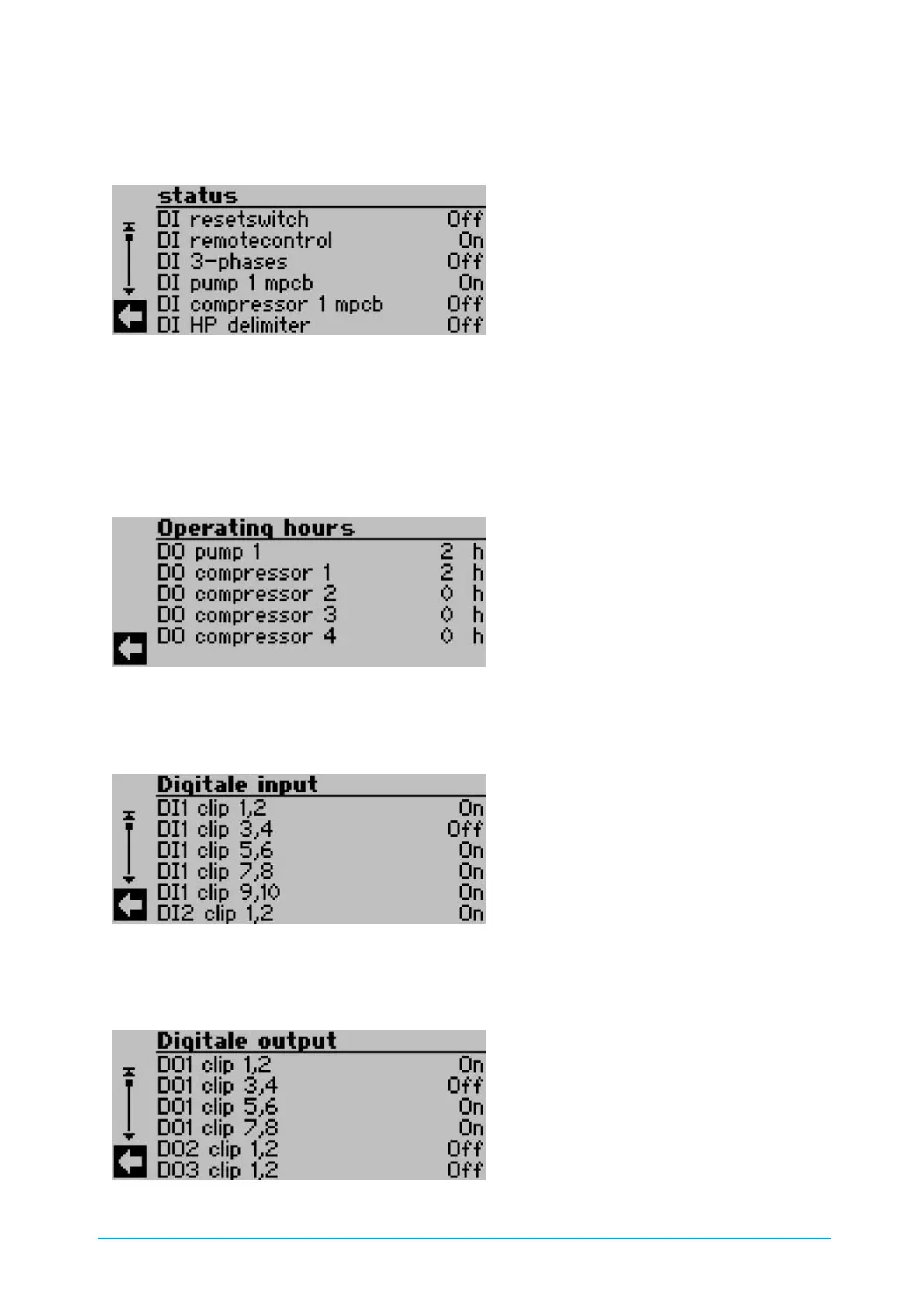

In the Status menu the states of the digital inputs and outputs and several internal control states
can be called up.
Figure 25: Status menu
The alarms are listed in the Alarm menu. A detailed description is given in Chapter 8.5.5 Alarm
menu.
The operating hours counter gives information on the operating hours of the individual
components and cannot be reset.
Figure 26: Operating hours counter
The digital inputs shows the state at the terminals of the digital inputs.
Figure 27: Digital inputs
The digital outputs show the state of the output relays.
Figure 28: Digital outputs
