Section 9
High Pressure Water System
20412997
8-2012/Rev 12
9-23
4. Remove the high pressure cylinder assembly, following the procedure, High Pressure
Cylinder Assembly Removal.
5. Use a flat screwdriver to remove the retaining ring from the hydraulic cylinder head.
6. Remove the bushing retainer flange and clean the surfaces, weep holes and grooves.
Check the retainer flange for cracks.
7. Replace the proximity switch by positioning the o-ring spacer and the switch. Apply
JL-M grease to the threads on the socket head screws and tighten, following the torque
specifications in Table 9-1.
It is recommended that the proximity switch be reinstalled as soon as practical.
Removal of the switch presents the potential of an oil spray hazard.
Ensure that the proximity switch is properly installed and secured prior to starting
the machine. Failure to tighten the two hold down screws on each switch will
result in the spray of hydraulic oil.
8. Remove the collet from the plunger removal tool and thread the large end of the tool onto
the hydraulic cartridge seal and pull the cartridge out, over the plunger.

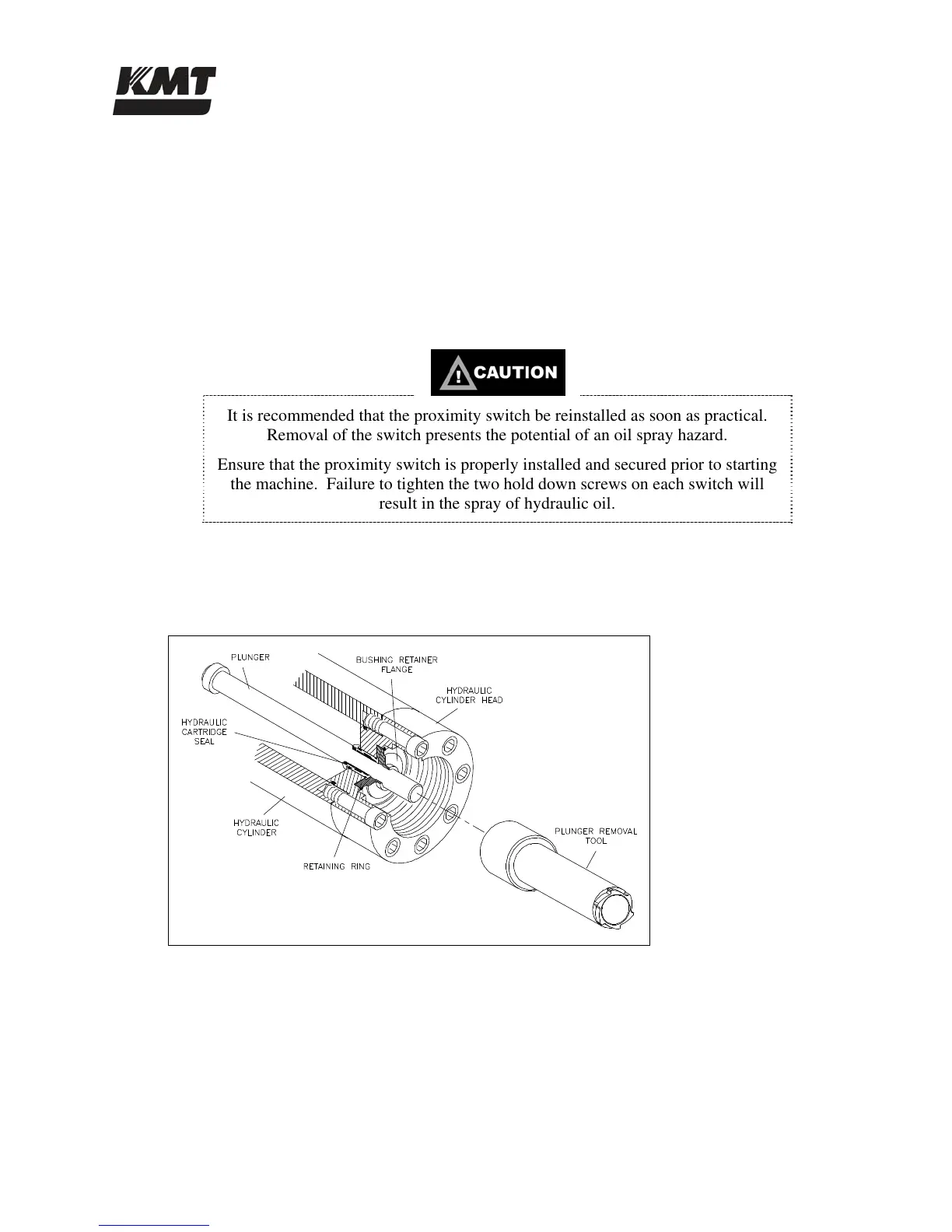

Figure 9-15: Hydraulic Cartridge Seal Removal
9. With the cartridge removed, the plunger can now be removed with the hydraulic cylinder
head in place. The plunger is held in position by six retainer pins. The pins close around
the plunger button to retain the plunger, and retract to release the plunger.
Clean the plunger and the ID of the collet with alcohol or a similar solvent. Partially
thread the collet into the plunger removal tool and slide the removal tool over the plunger
with the lobed end toward the plunger button. Note the orientation of the retainer pins on
the plunger button. Align the lobes on the tool with the retainer pins as shown below.
