Section 2
Installation
20412922
8-2012/Rev 10
2-16
4. Check the connection between the main power disconnect and the disconnect/circuit break
on the enclosure door. Verify the proper voltage supply. Close the enclosure door and
turn the control power on.

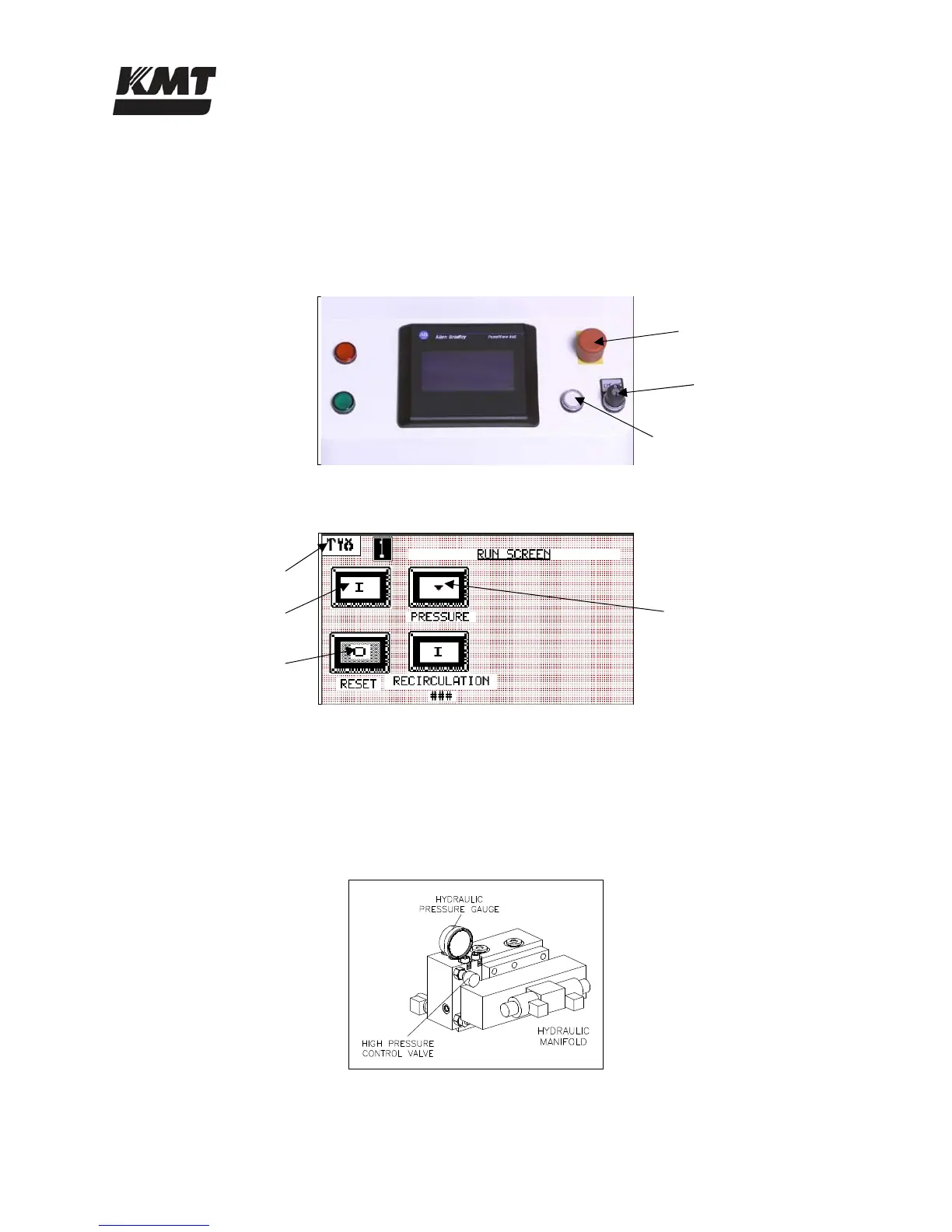

5. To activate the control panel display, pull the
EMERGENCY STOP button out and press the
reset button. The control panel will go through a series of diagnostics, and the Run Screen
will display. Refer to Section 4, Operation, for additional information regarding control
panel functions.
6. On the Run Screen, select the ▼ arrow on the PRESSURE switch to select low pressure
operation.
7. To avoid a sudden increase in pressure, it is necessary to adjust the high pressure setting.
On standard machines, the high pressure adjustment is made at the high pressure control
valve on the hydraulic manifold. Refer to Section 7, Hydraulic System, for additional
information.
Loosen the locking nut on the high pressure control valve by turning counter-clockwise.
Turn the high pressure control valve counter-clockwise, decreasing the pressure to the
lowest setting.
EMERGENCY STOP
RESET BUTTON
LOCAL/REMOTE
SWITCH
PRESSURE
SWITCH
STOP
BUTTON
START
BUTTON
GO TO
MAIN MENU
