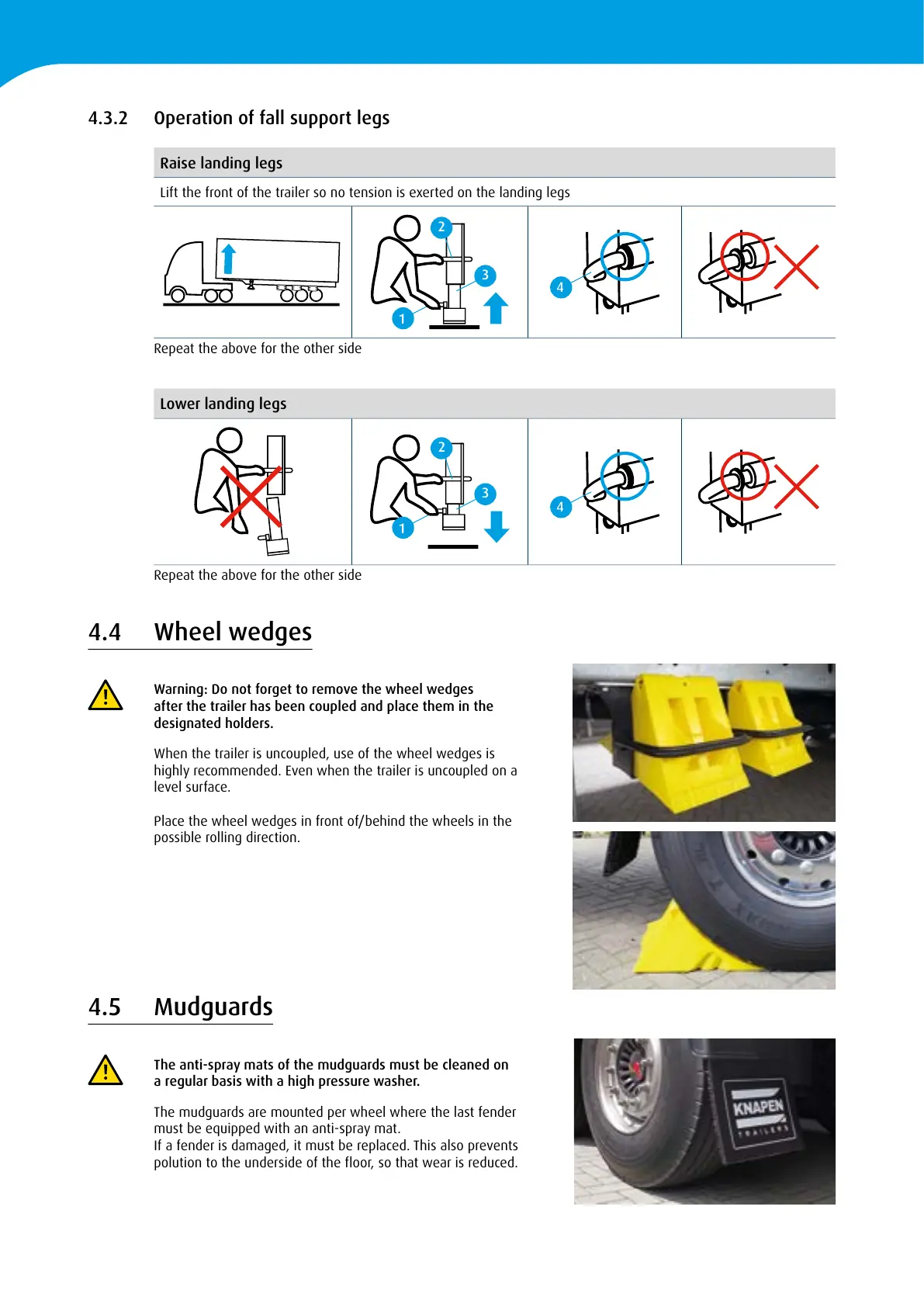

4.3.2 Operation of fall support legs
Raise landing legs
Lift the front of the trailer so no tension is exerted on the landing legs
3
2
1
4
Repeat the above for the other side
Lower landing legs
3
2
1
4
Repeat the above for the other side
4.4 Wheel wedges
Warning: Do not forget to remove the wheel wedges
after the trailer has been coupled and place them in the
designated holders.
When the trailer is uncoupled, use of the wheel wedges is
highly recommended. Even when the trailer is uncoupled on a
level surface.
Place the wheel wedges in front of/behind the wheels in the
possible rolling direction.
4.5 Mudguards
The anti-spray mats of the mudguards must be cleaned on
a regular basis with a high pressure washer.
The mudguards are mounted per wheel where the last fender
must be equipped with an anti-spray mat.
If a fender is damaged, it must be replaced. This also prevents
polution to the underside of the oor, so that wear is reduced.
