5 Use moving oor trailer
5.9 Use of the bars and upper beam
5.9.1 Bars
Bars must be present, in good condition and in correct positions
• Make sure that the roof sheet reinforcement rests on the bar
•Iftheblocktears,putthebaratthesecondposition.Donottiltit
• Bar positions are indicated with stickers (see 3.4)

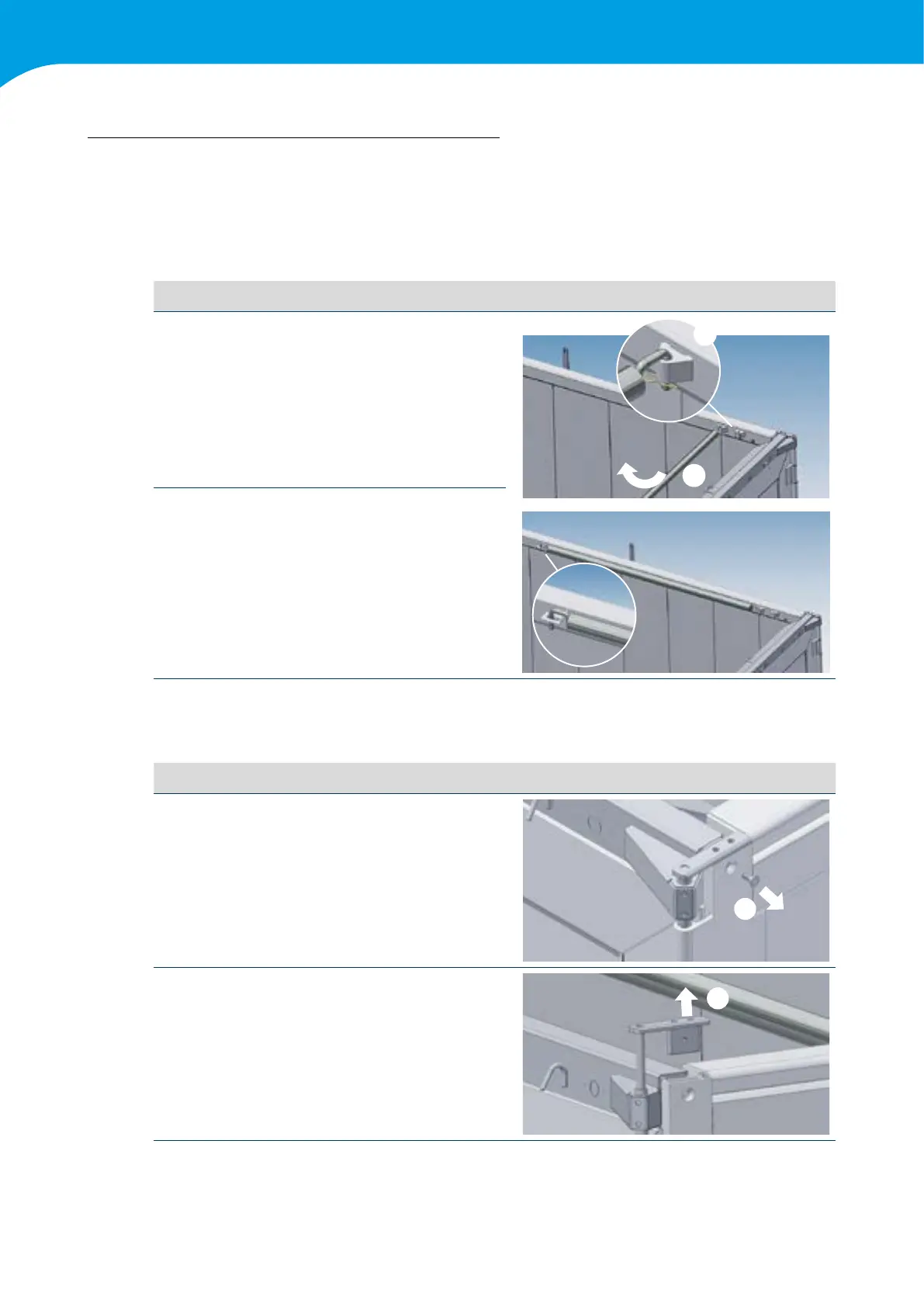

Turning away the bar
1 Remove the locking pin
1
2
2
Lift the bar out of the block, turn the bar towards
the holder and replace the locking pin.
Never turn away all the bars at the same time
5.9.2 Upper beam
Release top beam
1 Remove the M10 hexagon socket locking bolt,
1
2 Remove the locking pin
2
