Knapen Trailers K200 - Emergency control B-control

66
7 Troubleshooting
System malfunction Cause Solution
Switching is
difcultornotpossible.
3 cylinders are all
completely slid in
or out
Threaded rod worn
Adjustthreadedrodcorrectly,determine
cause
Threaded rod switch spring broken
Replace spring, determine cause
stopgapsolution:llspacewithcabletie
Switching plunger Stroke > 12 mm.
[0.5”]->threadedrodloose,distance
bush loose
Fully screw in the threaded rod/end bolt
Shiftedduetolooseprolesinthe
frameprole
Replacescrews,twithlockingdeviceand
check the rod guide bushes*
Switching choke soiled Clean the choke*
WithE-controlloador
unload, the moving
oorwillunload
Break in coil wiring
Temporarily activate the G02 emergency
control and/or repair the power circuit
WithE-controlloading
or unloading, the
movingoorwillstart
loading
Emergency control unloading/loading is
activated
Deactivate emergency control
*Contact your service partner for the correct repair advice
Intheeventofothermalfunctions,contactyourserviceoutlet.Haveyourchassisnumber/systemnumberready.
7.2 Emergency control B-control
Attention: Make sure the doors are open before the emergency control is switched on.
Attention: When using this emergency control, always ensure that, after use, it is returned to its original position.

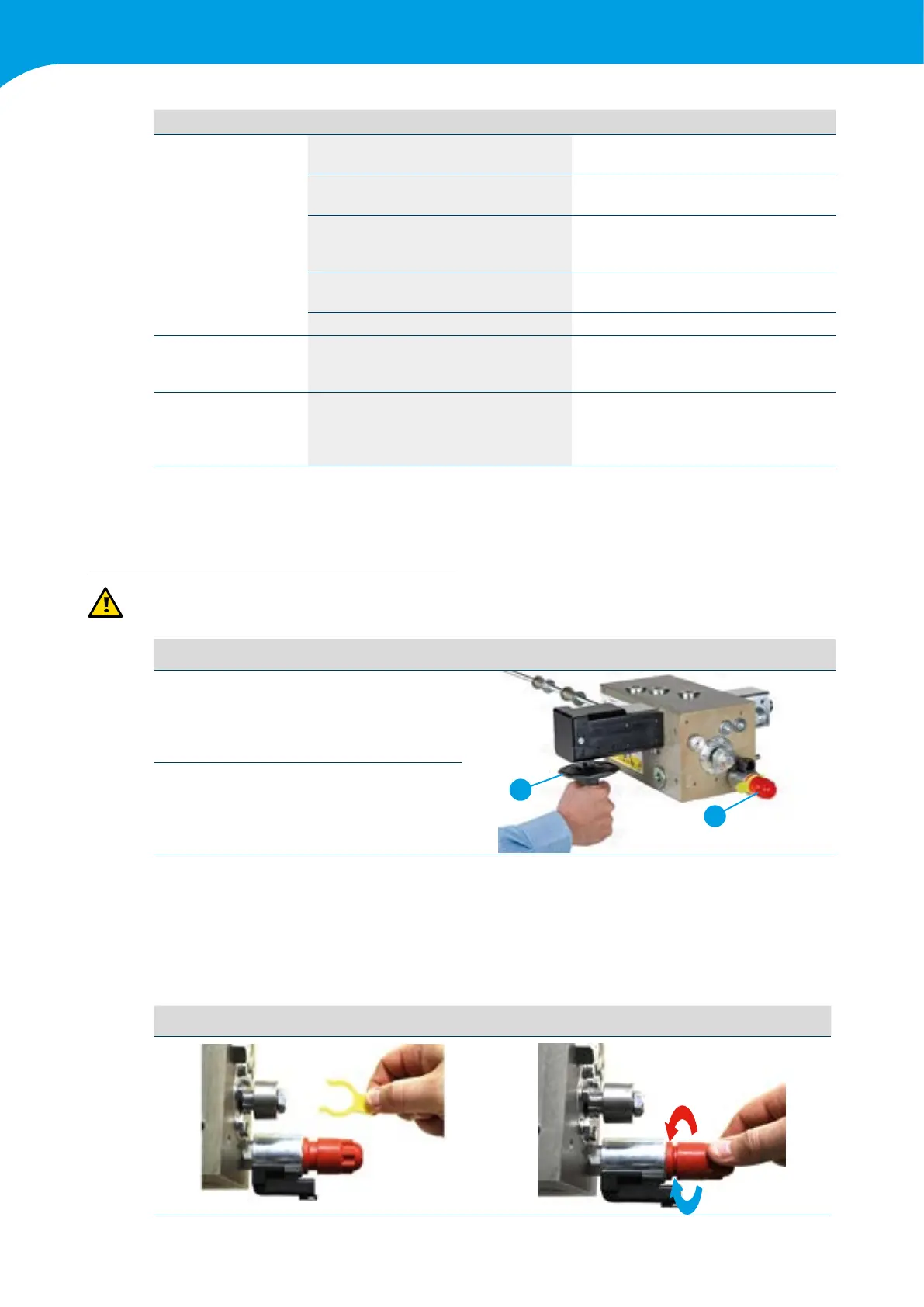

Control valve B-control
1 Function:unloading/loading
1
2
2 Function:on/off
Activate emergency control
Remove the yellow locking clip, then screw in the red knob on the on/off GS02 coil (clockwise), until the blockage.
The system switches "on" when the handle is in the loading or unloading position.
Deactivate emergency control
Unscrewtheredbuttonontopoftheon/offGS02coil(counter-clockwise)untiltheclickandplacetheyellow
locking clip. The system switches off
on/off coil/pin not activated on/off coil/pin manually activated
Deactivate
Activate
