Knapen Trailers K200 - PowerSheet (option)

51
User Manual EN | v201906

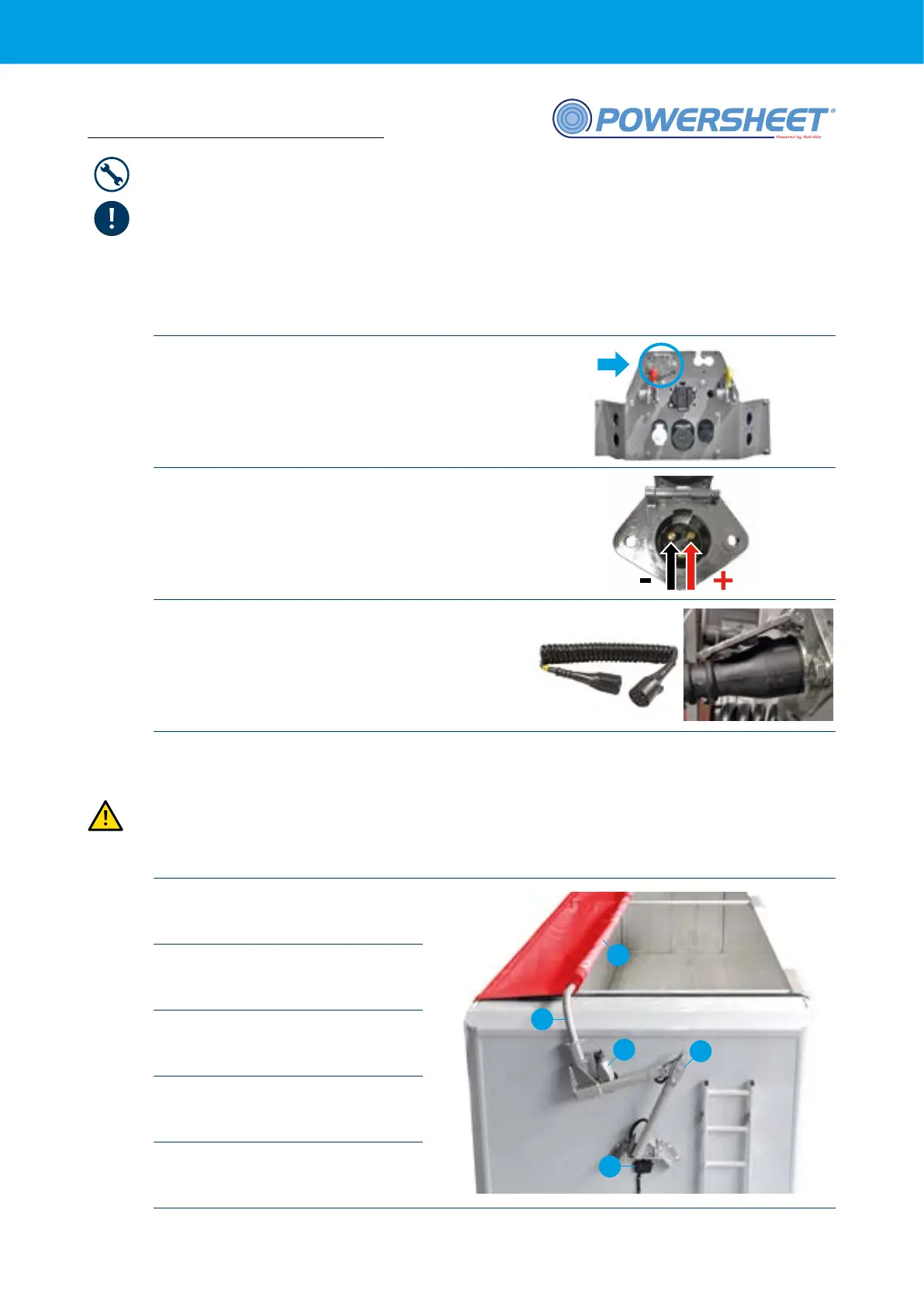

5.11 PowerSheet
®
(option)
For maintenance and/or cleaning of the PowerSheet
®
see Ch 6.9
IntheeventofamalfunctionofthePowerSheet
®
see Ch 7.4
5.11.1 Standard power supply for PowerSheet
®
The truck must be equipped with a separate fused power supply for providing power to the PowerSheet
®
.
Ontheheadboardthereisa3-poleconnectorneartheother
connectors, which provides the PowerSheet
®
power.
Only two pins of this connector are used.
Use the spiral cable supplied with the trailer to power the
system. Always check before use that the locking device is in
place.
5.11.2 Position of components
When operating the Powersheet, there must be absolutely no persons on the ladder due to the crushing hazard.
Make sure that the system is without power when using the ladder. If the trailer is equipped with a platform,
no one may be on it during operation, and the access protection must be closed.
1 Roof sheet tube
3
4
1
2
5
2 Torque shaft
3 Electric motor
4 Arm construction
5 Motor control unit
