Knapen Trailers K200 - Connectors

17
User Manual EN | v201906
4.6 Connectors
Tips for keeping hydraulic couplings clean can be found in the Knapen Trailers Driver Tips No 10
"Hydraulic couplings".
www.knapen-trailers.eu/downloads/tips-for-drivers
1
3
8
2
5
4
6
7

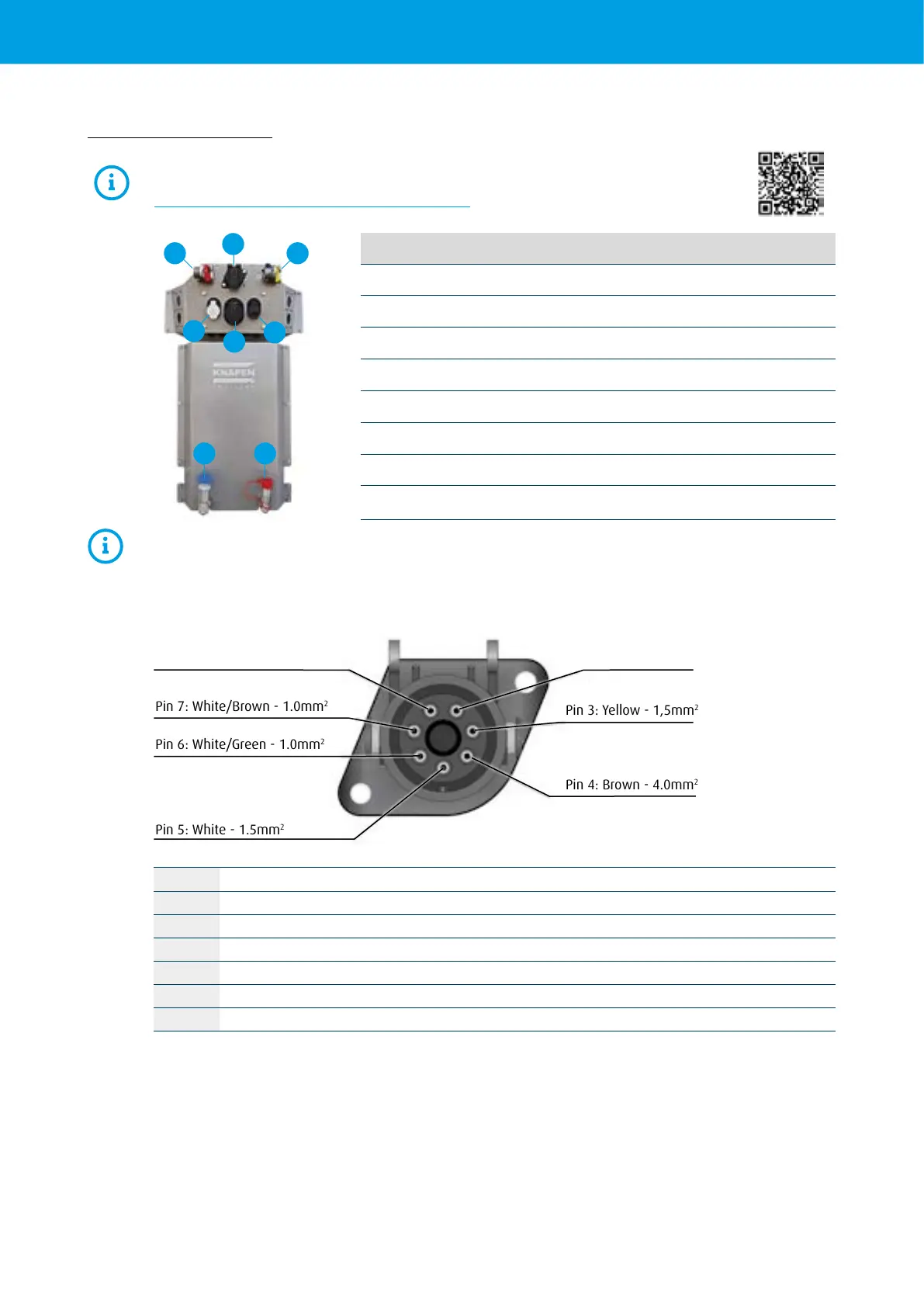

Connectors
1 Air connector red, supply line
2 Air connector yellow, control line
3 EBSplugconnectionISO7638-1
4 Whiteplugconnection-7-pole(ISO1185,24N)
5 Plugconnection-15-pole(ISO12098)
6 Blackplugconnection-7-pole(ISO3731,24S)
7 Hydraulic connector return pressure blue
8 Hydraulic connector pressure red
Iftheconnectors(1-2)arenotused,turnthelidsinfrontofthem(see4.2).
4.6.1 EBS plug connection
Pin1:Red-4.0mm
2
Pin2:black-1,5mm
2
Pin3:Yellow-1,5mm
2
Pin4:Brown-4.0mm
2
Pin7:White/Brown-1.0mm
2
Pin6:White/Green-1.0mm
2
Pin5:White-1.5mm
2
Pin 1 24v unswitched (solenoids)
Pin 2 24v ign. switched (ECU)
Pin 3 Ground for pin 2
Pin 4 Ground for pin 1
Pin 5 Warning lamp
Pin 6 CAN-High24v(ISO11992)
Pin 7 CAN-Low24v(ISO11992)
