Knapen Trailers K200 - Emergency control E-control

67
User Manual EN | v201906
7.3 Emergency control E-control
Make sure the doors are open before the emergency control is switched on.
When using this emergency control, always ensure that, after use, it is returned to its original position.

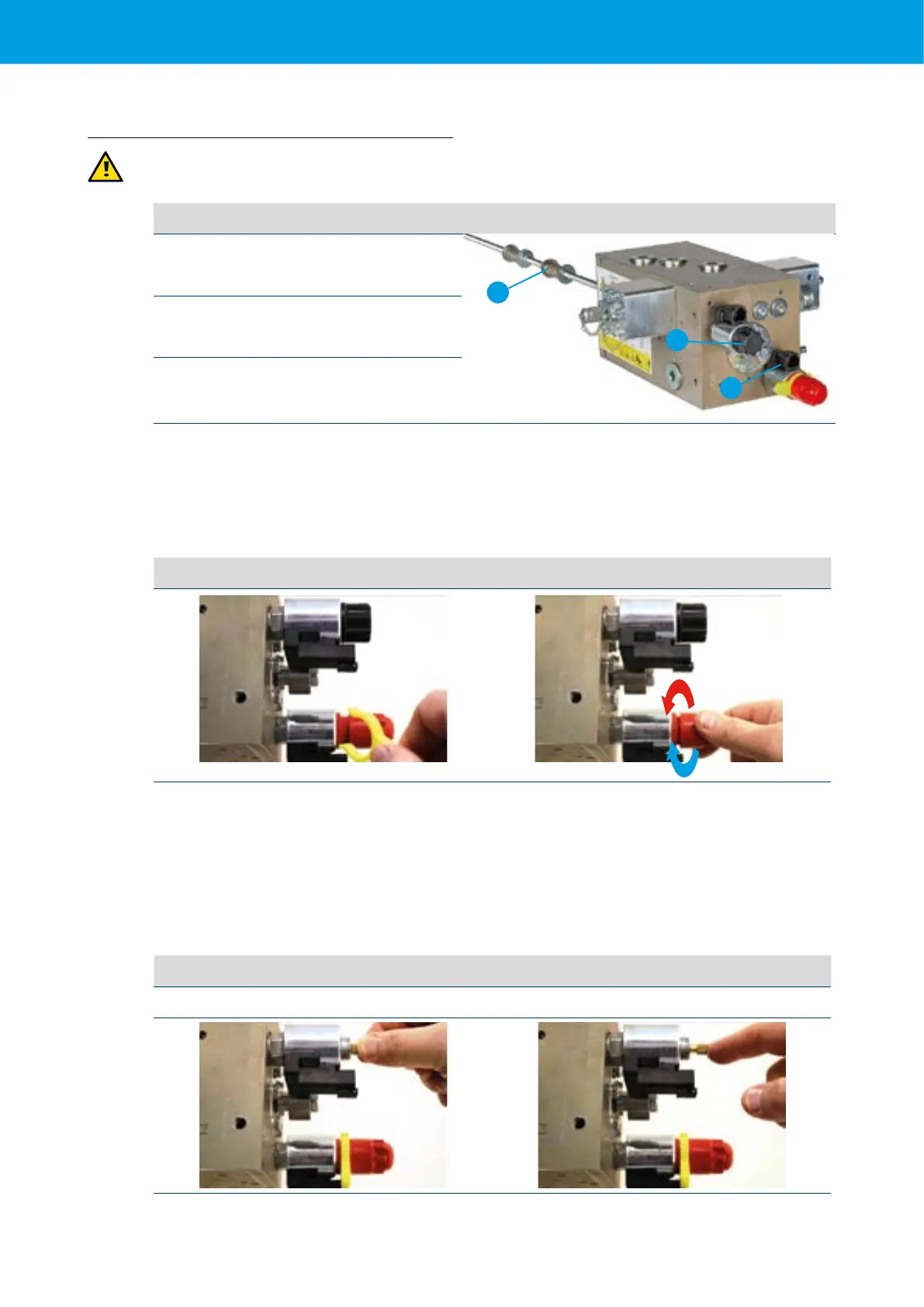

Control valve E-control
1 Threaded rod
1
2
3
2 Function:unloading/loading
3 Function:on/off
Activate emergency control
Remove the yellow locking clip, then screw in the red knob on the on/off coil (clockwise), until the blockage.
Deactivate emergency control
Unscrewtheredbuttonontopoftheon/offGS02coil(counter-clockwise)untiltheclick.
Replace the yellow locking clip. The system switches "off".
on/off coil/pin not activated on/off coil/pin manually activated
Deactivate
Activate
Activate emergency control loading (moving oor can only load):
Unscrewtheblackcap(payattentiontoO-ring).
Unscrewthescrewunderthecapoftheloading/unloadingpin(counter-clockwise)untiltheblockage.
Deactivate emergency control loading:
Screw in the screw of the loading/unloading pin (clockwise) until the blockage. Then screw the black protective cap
backon(payattentiontoO-ringmounting).
loading/unloading coil/pin not activated on/off coil/pin manually activated
Function: unloading Function: loading
