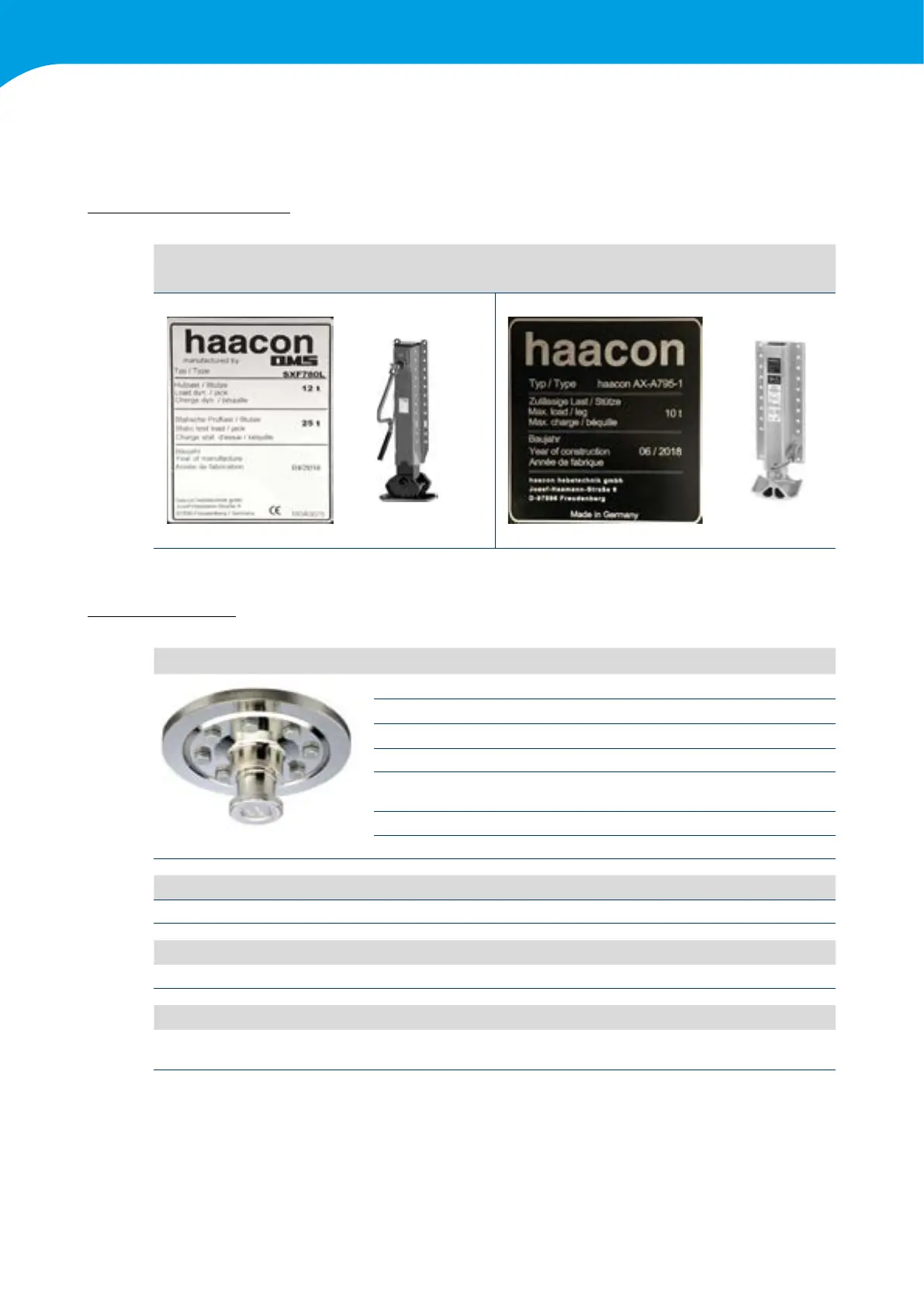

9 Technical data
9 Technical data
9.1 Landing legs
Spindle support leg maximum lifting load per leg 12 t,
maximum static load 25 t
Fall support legs maximum permissible load per leg
10 t
9.2 Kingpin
Kingpin 50S15
50
Kingpin large Ø 50 mm
S:
Mounting bolt
15
pitch circle Ø 150 mm
Used type SAF 50165S1510, Ø 50mm
Thickness of the kingpin
plate
10 mm
Tightening torque 190Nm(8boltsM14x25DIN933class10.9)
Individualpinnumber: 2108 30 000002 0
Type Plate thickness D value Pin Flange Composition
50165S1510 10 mm 165 kN 2108 30 000002 0 2031 10 000003 0 1030 30 000003 0
Permissible tolerances of the kingpin plate thickness Tolerances
Plate thickness 6, 7, 8, 10 mm +0.4/-0.3
Type D value DIN Tightening torque
65 165 KN 8Hex-headscrews
Hex head
M14 x 35 933/10.9 micro-encapsulated 190 Nm
