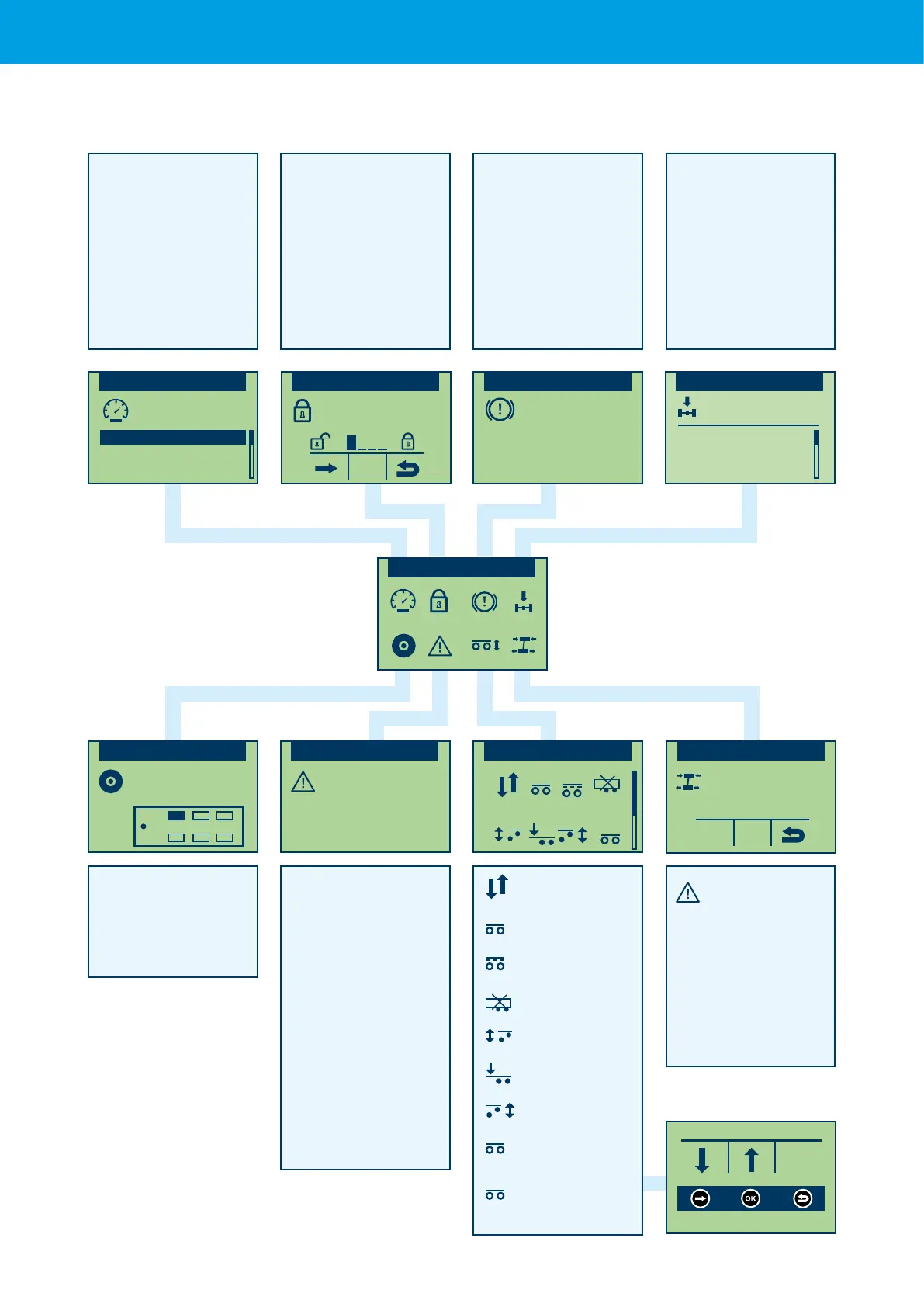

Smartboard main menu 1/2
Odometer:
km reading
recorded by SmartBoard
km reading: by EBS
recorded km reading
EBS journey: EBS day counter
Day counter:
SmartBoard day counter
Tyre pressure
– Tyre pressure
individual tyres
– Nominal
–Conguration
System
Origin alert, e.g. TEBS E
Date
Date of alert
Clock time
Time of alert
Code
Firstnumberblock:
components involved
Secondnumberblock:
Malfunction type
See table “alert codes”
and "instructions" on the
back
Risk of
injuries due to
moving vehicle.
Take all necessary
safety precautions
.
Make sure that with
operation no people
stand between the truck and
the trailer.
Lifting & lowering
1
Driving level
1.2
Switch
driving level
Unloading level
Lift axle(s)
lift/lower
 Start-offassist
Shunting aid
1
Set and save
memory 1
2
Set and save
memory 2
Immobiliser
-Activate
-Deactivate
Brake pad wear
BVA (brake pad wear
indication)
Axle load display
Total axle load display
Load individual axles
Odometer
Total 49832 km
status 49832 km
EBS trip 7234 km
Immobiliser
Enter pin
0
0...9
Brake pad wear
OK
Axle load display
Axle load 1 7.8t
Axle load 2 7.8t
Axle load 3 7.8t
Total axle load 23.4 t
Main menu 1/2
Alerts
Date 10.01.2010
Time 12:29pm
Code 002 05
TEBs E
Tyre pressure
Normal 8.0 bar
8.2 bar
Air suspension
Lifting/lowering
1
1.2
1
Bounce control
Bounce control
STOP
Lifting Lowering stop
