Kodak Ektalite 500 - Focus Light Path and Null Position Adjustments

SERVICE MANUAL Adjustments
23JUL01
SM5766-1
Page
46 of 96
6 If the measurements are not within
specification, adjust the ZERO
POSITION SWITCH ECCENTRIC to
specification.
Focus Light Path - 1500 and 2000 PROJECTORS Only
Warning
Dangerous Voltage
1 Disconnect the main power.
2 Remove the PROJECTION LENS.
3 Do the removal for the LOWER HOUSING ASSEMBLY.

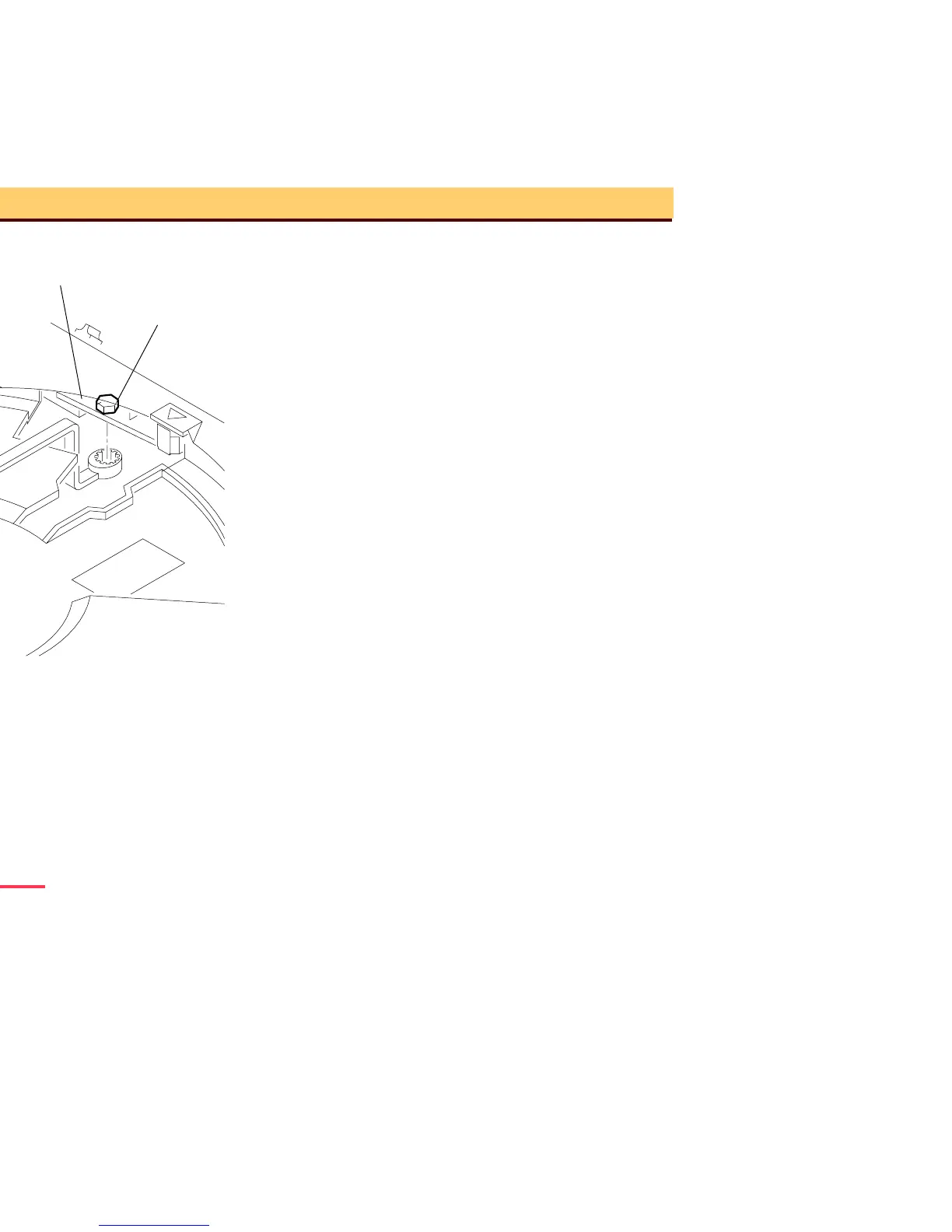

A091_0017GA
NUT
A091_0017GCA
SWITCH
ZERO POSITION
