TP-6277 10/03 Operation 9
1-762
1
2
3
4
1. Engine oil pressure
2. Water temperature
3. Start/stop switch
4. ON light

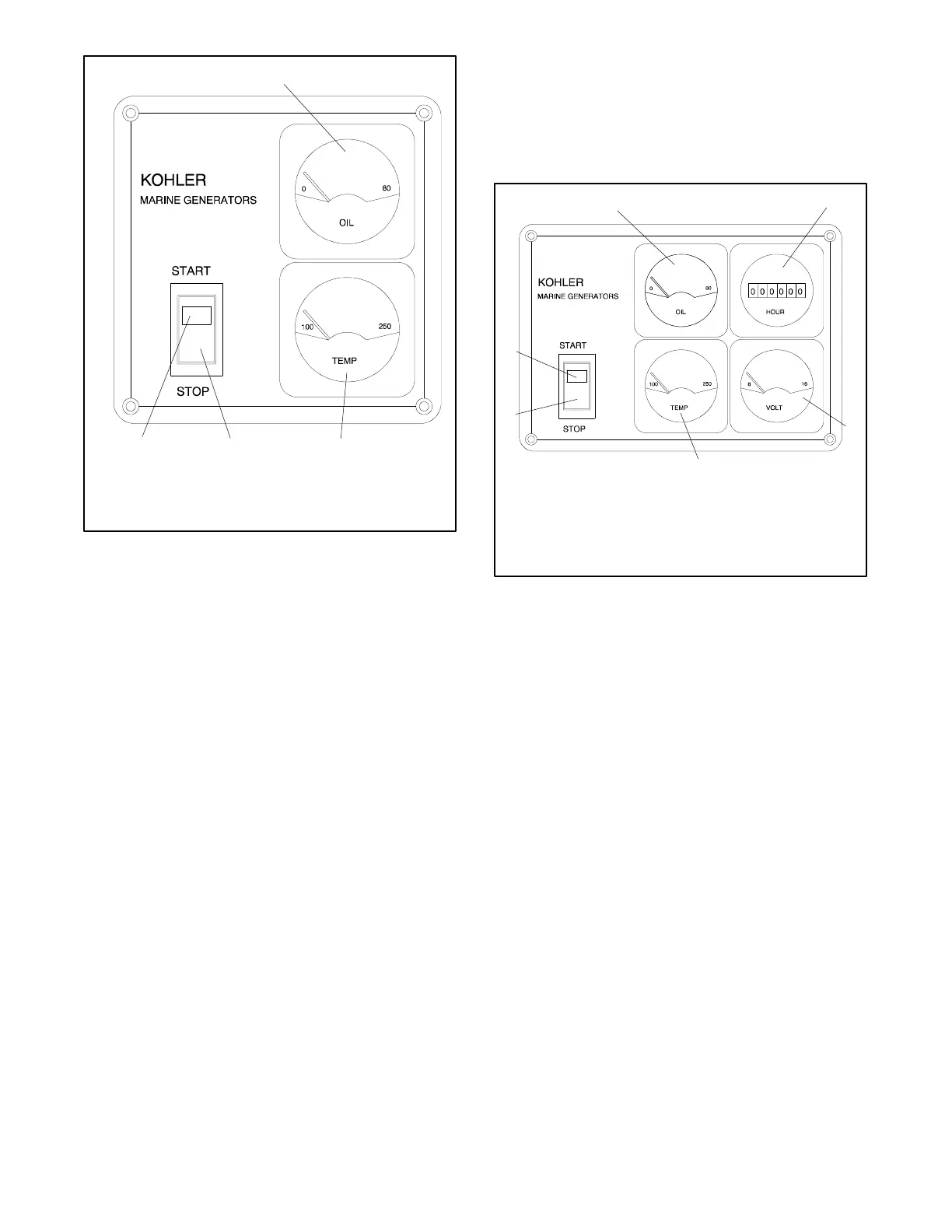

Figure 2-3 Remote Start And Two-Meter Panel
Features
2.9.3 Remote Start and
Four-Meter Panel Kit
The remote start and four-meter panel kit allows starting
and stopping from a location remote of the generator
set. The illuminated gauges include a DC voltmeter,
engine oil pressure gauge, water temperature gauge,
and generator running time hourmeter. Generator sets
come equipped with a 6-pin connector on the controller
back panel for connection of the kit. See Figure 2-4 for
the remote s tart and four-meter panel features.
Start/Stop Switch (rocker-type) with ON light starts and
stops the generator set.
DC Voltmeter measures voltage of starting battery(ies).
Normal battery operating range is 12-14 volts.
Engine Oil Pressure Gauge measures engine oil
pressure. Normal engine operating range is
131-172 kPa (19-25 psi).
Note: During the engine break-in period, the engine
normally produces higher oil pressure readings.
Water Temperature Gauge measures engine coolant
temperature. Normal engine operating range is
66-77_ C (150-170_ F).
Hourmeter records total generator set operating hours
for reference in maintenance scheduling.
1-830
1
2
3
4
5
6
1. Engine oil pressure
2. Hourmeter
3. Voltmeter
4. Water temperature
5. Start/stop switch
6. ON light
Figure 2-4 Remote Start And Four-Meter Panel
Features
