TP-6277 10/03 Installation 39
Section 6 Installation
6.1 Introduction
The safe and successful operation of a marine power
system depends primarily on the installation. See
Figure 6-1. Use this manual as a guide to install the
marine generator set.
Note: Only qualified persons should install the
generator set.
Marine generator set installations must comply with all
applicable regulations and standards.
The installer is responsible for improper installations
resulting in penalties from noncompliance with CARB or
EPA emission standards.
1
2
3
4
5
6
7
8
9
10
11
1. Heat exchanger
2. Coolant recovery tank
3. Seawater strainer *
4. Raw waterline
5. Intake through-hull strainer
6. Seacock *
7. Fuel line *
8. Worm clamps
9. Mounting tray
10. Mounting base
11. Exhaust line *
*Indicated components must conform to USCG Regulations.

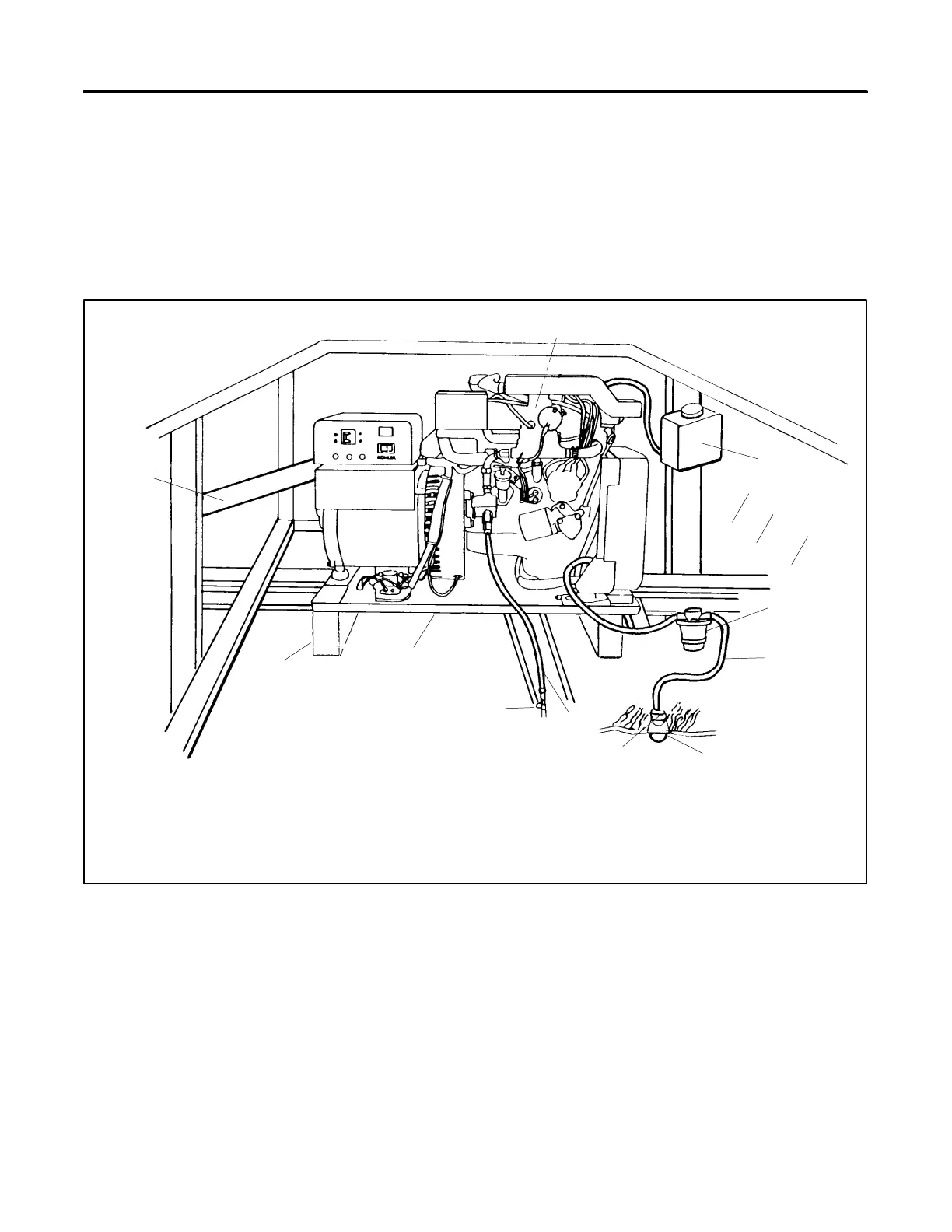

Figure 6-1 Typical Location and Mounting
Note: Use two hose clamps on each end of all flexible
exhaust hose connections.
Note: See text for complete explanation of installation
requirements.
