TP-6277 10/03 Installation 55
6.7.7 Remote Start Switch Connection
Kohler Co. offers several remote panels for connection
to the generator set. Contact your local Kohler
distributor/dealer for further detailed descriptions. See
Figure 6-26 for remote start panel connection to the
generator set controller. Kohler Co. also offers a wiring
harness with a connector keyed to the controller box
connector. The other end of this harness has pigtails
that the installer can use to connect to a
customer-supplied start/stop switch or separate lights
and hourmeter. Consult current wiring diagrams and
instruction sheets for connection.
Note: Gauge senders. Gauge senders are available
for most generator sets. If using gauges, be sure
they are compatible with generator set senders.
Gauges/senders are available as a service item
from authorized Kohler service
distributors/dealers.
WT
OP
123
456
J3
Remote Panel
Lead Designations
Lead
Pin (newer panel) Function
J3-1 N Ground (--)
J3-2 5 Water Temp. Ga.
J3-3 7C Oil Pressure Ga.
J3-4 70 Gen. ON (+)
J3-5 47 Start
J3-6 43 Stop
Note: All wire is 16 gauge.
Tape to insulate all
unused lead ends.
1
2
3
4
6
7
5
1. Use insulink or solder connection (tape to insulate)
2. Hourmeter
3. ON light
4. Stop
5. Start
6. Rocker switch
7. Gauges senders

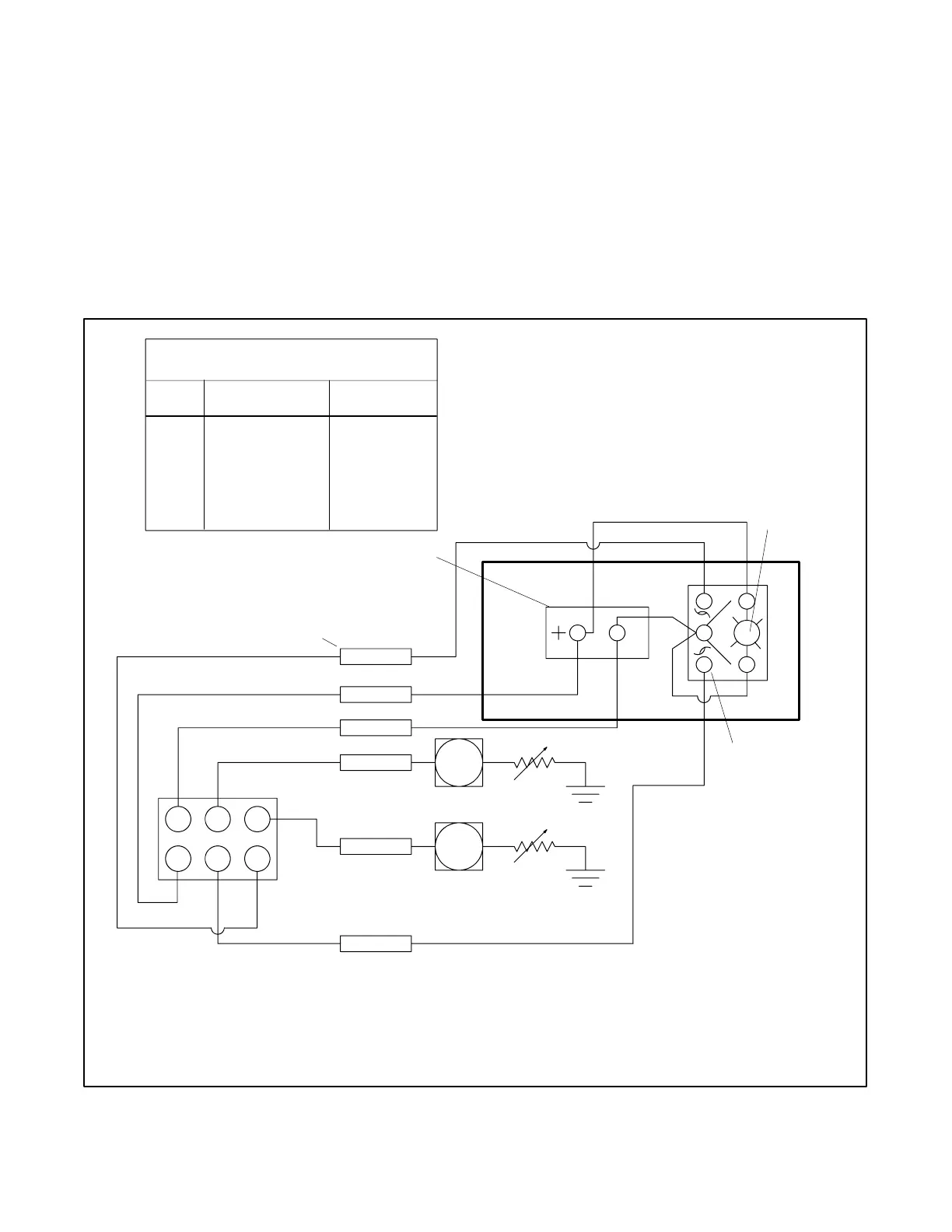

Figure 6-26 Remote Control Panel Wiring
