TP-6277 10/03 Scheduled Maintenance 23
Waterline
NOTE
Numbers in illustrations refer to callouts below
and not to dimensions.
TP-5811--11
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1. Mounting Base
2. Retaining Cap
3. Reed valve assembly
4. Silencer vertical lift 1.2 m (4 ft.) max.
5. Exhaust mixer elbow distance above waterline. If less than
23 cm (9 in.), siphon break is required.
6. Minimum siphon break distance above waterline of 30.5 cm
(1 ft.)
7. Siphon break
8. Exhaust mixer elbow
9. Heat exchanger (locations vary by model)
10. Coolant recovery tank
11. Indicates coolant recovery tank at same height as heat
exchanger
12. Seawater strainer
13. Seacock
14. Intake strainer
15. Engine-driven seawater pump
16. Minimum exhaust hose pitch of 1.3 cm per 30.5 cm (0.5 in.
per ft.)
17. Water lock (optional)
18. Maximum distance between silencer and exhaust mixer elbow
of 3 m (10 ft.)
19. Silencer (customer supplied)
20. Minimum exhaust hose pitch of 1.3 cm per 30.5 cm (0.5 in.
per ft.)
21. Minimum exhaust outlet distance above waterline of 10 cm
(4 in.)
22. Seawater outlet
22

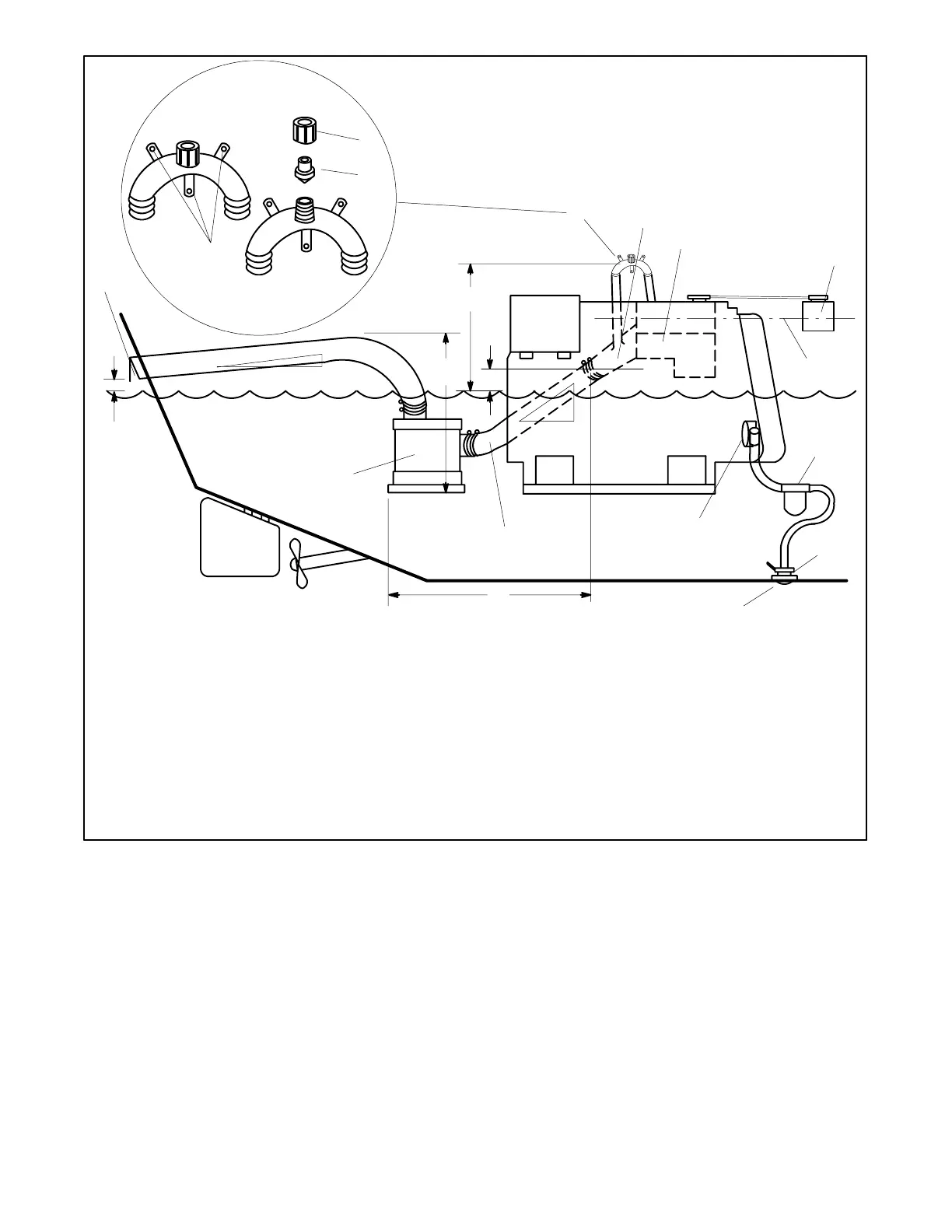

Figure 3-14 Siphon Break (plastic “U” type)
