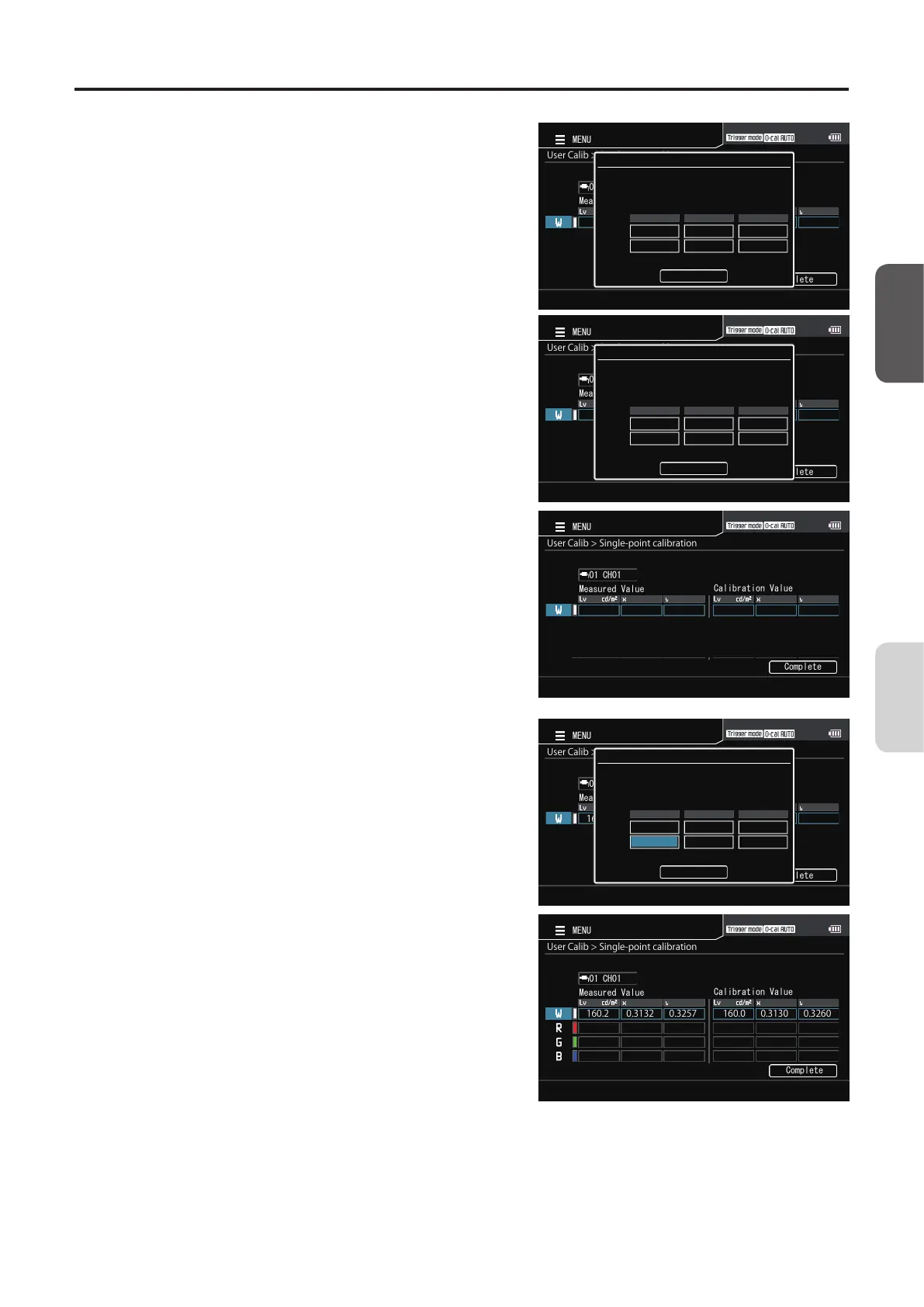

When the pop-up screen for single-point
calibration is displayed, press the
[ENTER] key to perform measurement.
When the measured value is displayed,
press the [ENTER] key to hold the value.
Complete
UserCalib>Single-pointcalibration
Measured Value
校正値
01
CH01
MENU
Single-pointcalibration
Startmeasurement
Meas
MeasuredValue
TargetValue
Lvxy
Complete
UserCalib>Single-pointcalibration
Measured Value
校正値
01
CH01
MENU
160.20.31320.3157
Single-pointcalibration
Stopmeasurement
Stop
MeasuredValue
TargetValue
Lvxy
8
Press the [UP] or [DOWN] key and the
[RIGHT]/[LEFT] keys to select the field of
a calibration value for user calibration,
and then press the [ENTER] key.
Complete
UserCalib>Single-pointcalibration
Measured Value
Calibration Value
01
CH01
MENU
9
Press the [UP] or [DOWN] key and the
[RIGHT]/[LEFT] keys to set a calibration
value, and then press the [ENTER] key.
Press the [ESC] key to cancel configuration of the
setting and restore the original value.
10
Repeat steps 8 and 9 to set the
calibration value, move to [Complete],
and then press the [ENTER] key to
confirm your entry.
(If the entered value is out of the available setting
range, the screen returns to the value entry screen.
Enter another value.)
Complete
UserCalib>Single-pointcalibration
Measured Value
校正値
01
CH01
MENU
160.20.31320.3257
160.20.31320.3257
Single-pointcalibration
EditValue
ToconfirmbypressingtheENTERbutton
inthe“Comp”
Complete
MeasuredValue
TargetValue
Lvxy
11
Press the [ESC] key.
The measurement screen is displayed on the LCD
screen.
The specified values will be kept even if the POWER
switch is set to OFF ().
Complete
UserCalib>Single-pointcalibration
Measured Value
Calibration Value
01
CH01
MENU
160.20.31320.3257160.00.31300.3260
