Konica Minolta CA-410 - Setting the Trigger Mode

71

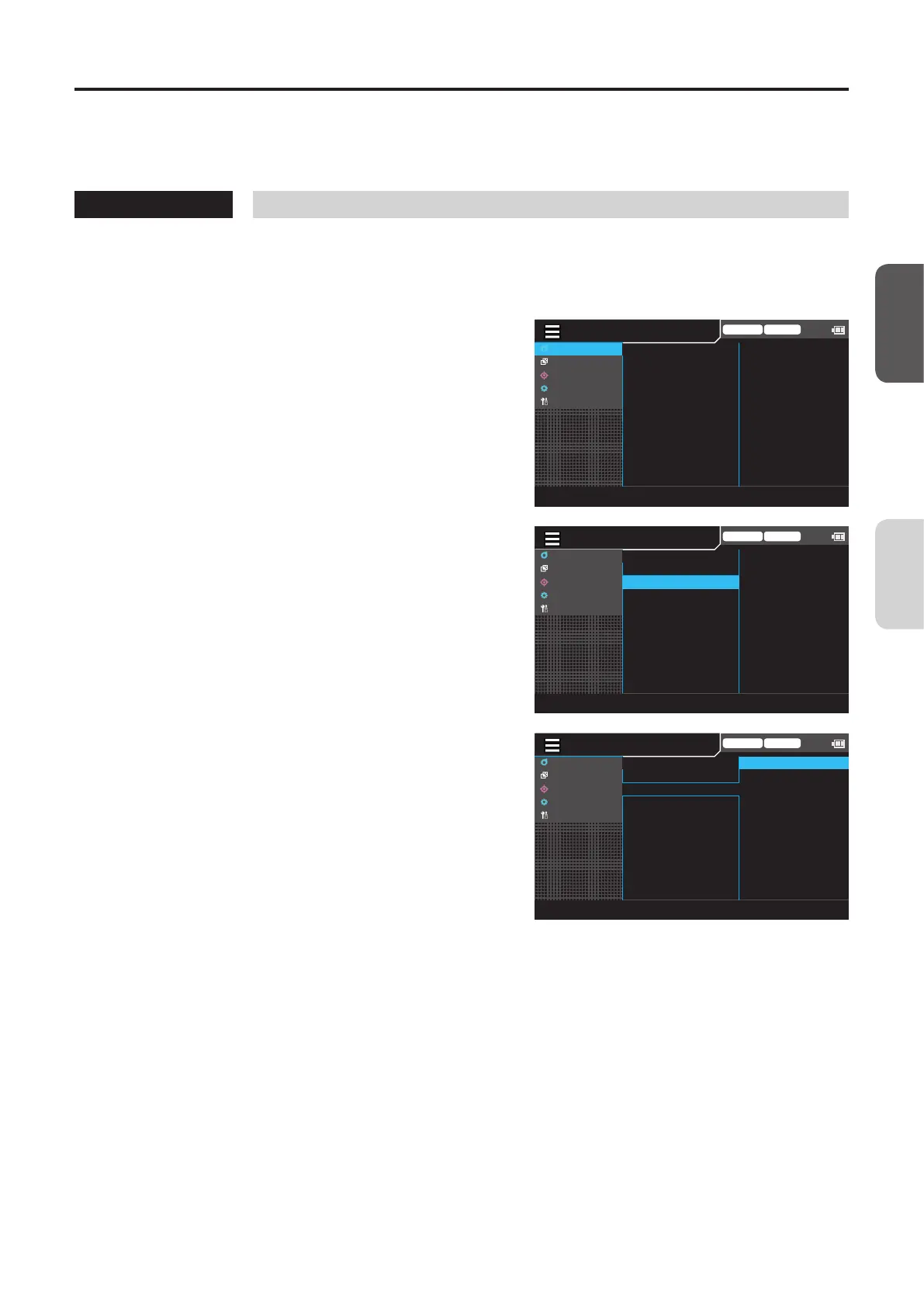

Setting the Trigger Mode
In trigger mode, measurement is started by an external trigger. A delay time can be set for starting measurement after a
trigger.
* Factory setting: OFF
Operating Procedure
1
While the measurement screen is
displayed, press the [MENU] key.
The setting screen is displayed on the LCD screen.
2
Press the [UP] or [DOWN] key to select
[Meas Cond], and then press the [RIGHT]
or [ENTER] key.
Trigger mode 0-cal AUTO
MeasCond
UserCalib
Target
Option
System
NTSC
AUTO
OFF
OFF
OFF
0.07 Hz
SyncMode
MeasSpeed
TriggerMode
IntervalMeas
IntervalAlert
JEITAfreqresolution
3
Press the [UP] or [DOWN] key to select
[Trigger Mode], and then press the
[ENTER] key.
MENU
Trigger mode 0-cal AUTO
MeasCond
UserCalib
Target
Option
System
NTSC
AUTO
OFF
OFF
OFF
0.07 Hz
SyncMode
MeasSpeed
TriggerMode
IntervalMeas
IntervalAlert
JEITAfreqresolution
4
The screen for turning the trigger mode
ON/OFF is displayed. Press the [UP] or
[DOWN] key to select [ON] or [OFF].
MENU
Trigger mode 0-cal AUTO
MeasCond
UserCalib
Target
Option
System
○
ON[Delay 1000 ms]
◉
OFF
SyncMode
MeasSpeed
TriggerMode
IntervalMeas
IntervalAlert
JEITAfreqresolution
5
When selecting [ON], press the [ENTER]
key to display the screen for setting
[Delay].
[Meas Cond] - [Trigger]
CA-DP40
Measurement
Preparation
