Setting the Interval Measurement
The mode can be set to Interval Meas. In this mode, the measurement interval and the number of measurements can be set.
* Factory setting: OFF
Operating Procedure
1

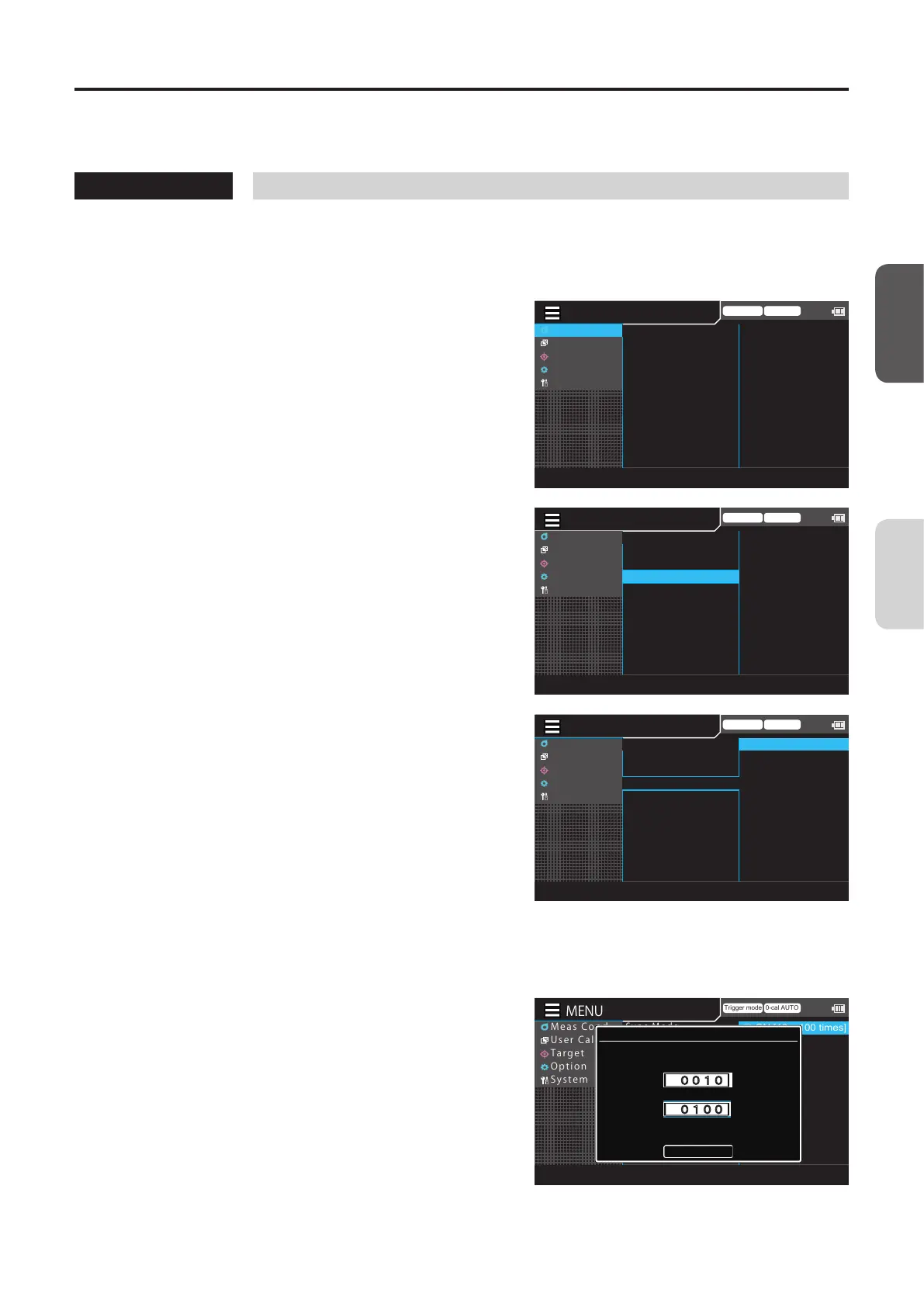

While the measurement screen is
displayed, press the [MENU] key.
The setting screen is displayed on the LCD screen.
2
Press the [UP] or [DOWN] key to select
[Meas Cond], and then press the [RIGHT]
or [ENTER] key.
Trigger mode 0-cal AUTO
MeasCond
UserCalib
Target
Option
System
NTSC
AUTO
OFF
OFF
OFF
0.07 Hz
SyncMode
MeasSpeed
TriggerMode
IntervalMeas
IntervalAlert
JEITAfreqresolution
3
Press the [UP] or [DOWN] key to select
[Interval Meas], and then press the
[ENTER] key.
MENU
Trigger mode 0-cal AUTO
MeasCond
UserCalib
Target
Option
System
NTSC
AUTO
OFF
OFF
OFF
0.07 Hz
SyncMode
MeasSpeed
TriggerMode
IntervalMeas
IntervalAlert
JEITAfreqresolution
4
The screen for turning the interval
measurement ON/OFF is displayed.
Press the [UP] or [DOWN] key to select
[ON] or [OFF].
MENU
Trigger mode 0-cal AUTO
MeasCond
UserCalib
Target
Option
System
○
ON [10 s,100 times]
◉
OFF
SyncMode
MeasSpeed
TriggerMode
IntervalMeas
IntervalAlert
JEITAfreqresolution
5
When selecting [ON], press the [ENTER]
key to display the screen for selecting
[Interval time] and [Interval number].
6
Press the [UP] or [DOWN] key to select
[Interval time] or [Interval number], and
then press the [ENTER] key.
Select [Interval time] and [Interval number],
respectively, and go to step 7 to set each value.
MENU
Trigger mode 0-cal AUTO
MeasCond
UserCalib
Target
Option
System
○
ON [10 s,100 times]
◉
OFF
SyncMode
MeasSpeed
TriggerMode
IntervalMeas
IntervalAlert
JEITAfreqresolution
Interval Time/Number
Set the interval time and number
Complete
０１００ times
００１０
sec
Interval time:
Interval number:
[Meas Cond] - [Interval Meas]
