87
7

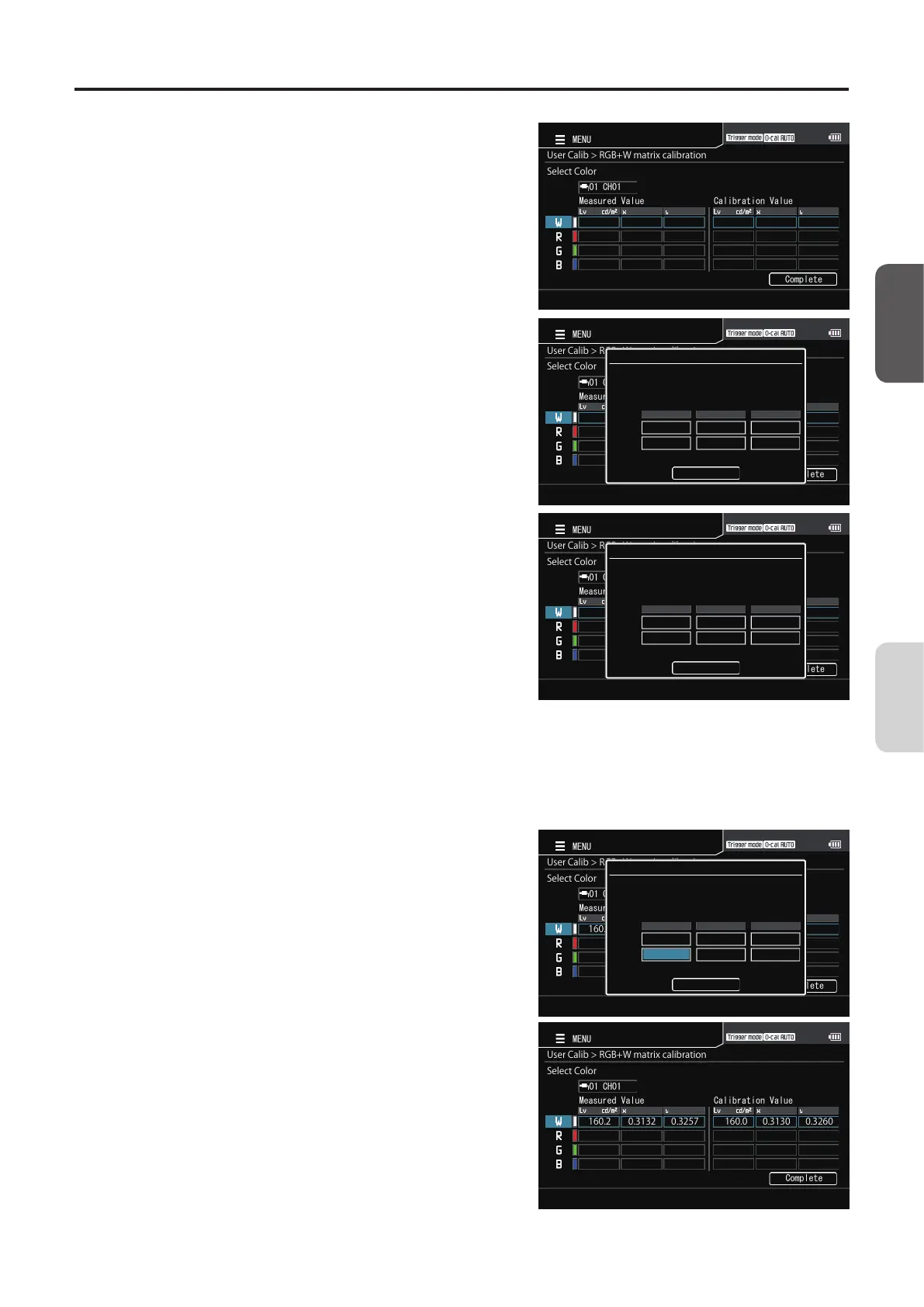

The screen for selecting a color is
displayed. Press the [UP] or [DOWN] key
to select the color to measure and then
press the [ENTER] key.
Complete
UserCalib>RGB+Wmatrixcalibration
SelectColor
Measured Value
Calibration Value
01
CH01
MENU
8
When the pop-up screen for RGB+W
matrix calibration is displayed, press the
[ENTER] key to perform measurement.
When the measured value is displayed,
press the [ENTER] key to hold the value.
Complete
UserCalib>RGB+Wmatrixcalibration
SelectColor
Measured Value
校正値
01
CH01
MENU
RGB+Wmatrixcalibration
White
Startmeasurement
Meas
MeasuredValue
TargetValue
Lvxy
9
Press the [UP] or [DOWN] key and the
[RIGHT]/[LEFT] keys to select the field of
a calibration value for user calibration,
and then press the [ENTER] key.
Complete
UserCalib>RGB+Wmatrixcalibration
SelectColor
Measured Value
校正値
01
CH01
MENU
160.20.31320.3157
RGB+Wmatrixcalibration
White
Stopmeasurement
Stop
MeasuredValue
TargetValue
Lvxy
10
Press the [UP] or [DOWN] key and the
[RIGHT]/[LEFT] keys to set a calibration
value, and then press the [ENTER] key.
Press the [ESC] key to cancel configuration of the
setting and restore the original value.
11
Repeat steps 9 and 10 to set the
calibration value, move to [Complete],
and then press the [ENTER] key to
confirm your entry.
Complete
UserCalib>RGB+Wmatrixcalibration
SelectColor
Measured Value
校正値
01
CH01
MENU
160.20.31320.3257
160.20.31320.3157
RGB+Wmatrixcalibration
White
EditValue
ToconfirmbypressingtheENTERbuttoninthe“Comp”
Complete
MeasuredValue
TargetValue
Lvxy
Complete
UserCalib>RGB+Wmatrixcalibration
SelectColor
Measured Value
Calibration Value
01
CH01
MENU
160.20.31320.3257160.00.31300.3260
12
Repeat steps 7 to 11 to set calibration
values for W, R, G, and B, move to
[Complete], and then press the [ENTER]
key to confirm your entry.
(If the entered value is out of the available setting
range, the screen returns to the value entry screen.
Enter another value.)
13
Press the [ESC] key.
The measurement screen is displayed on the LCD
screen.
The specified values will be kept even if the POWER
switch is set to OFF ().
CA-DP40
Calibration/
Settings
