Setting
*1 Y is displayed instead of L
v
when color matching function is other than CIE1931 (2°).
*2 For non-spectral colors, the complementary wavelength will be displayed. The display indication will
remain λd.
* If the calculated value does not establish a proper combination with the value in the color space
mode, “_ _ _ _ _ _ _ _” will be displayed.

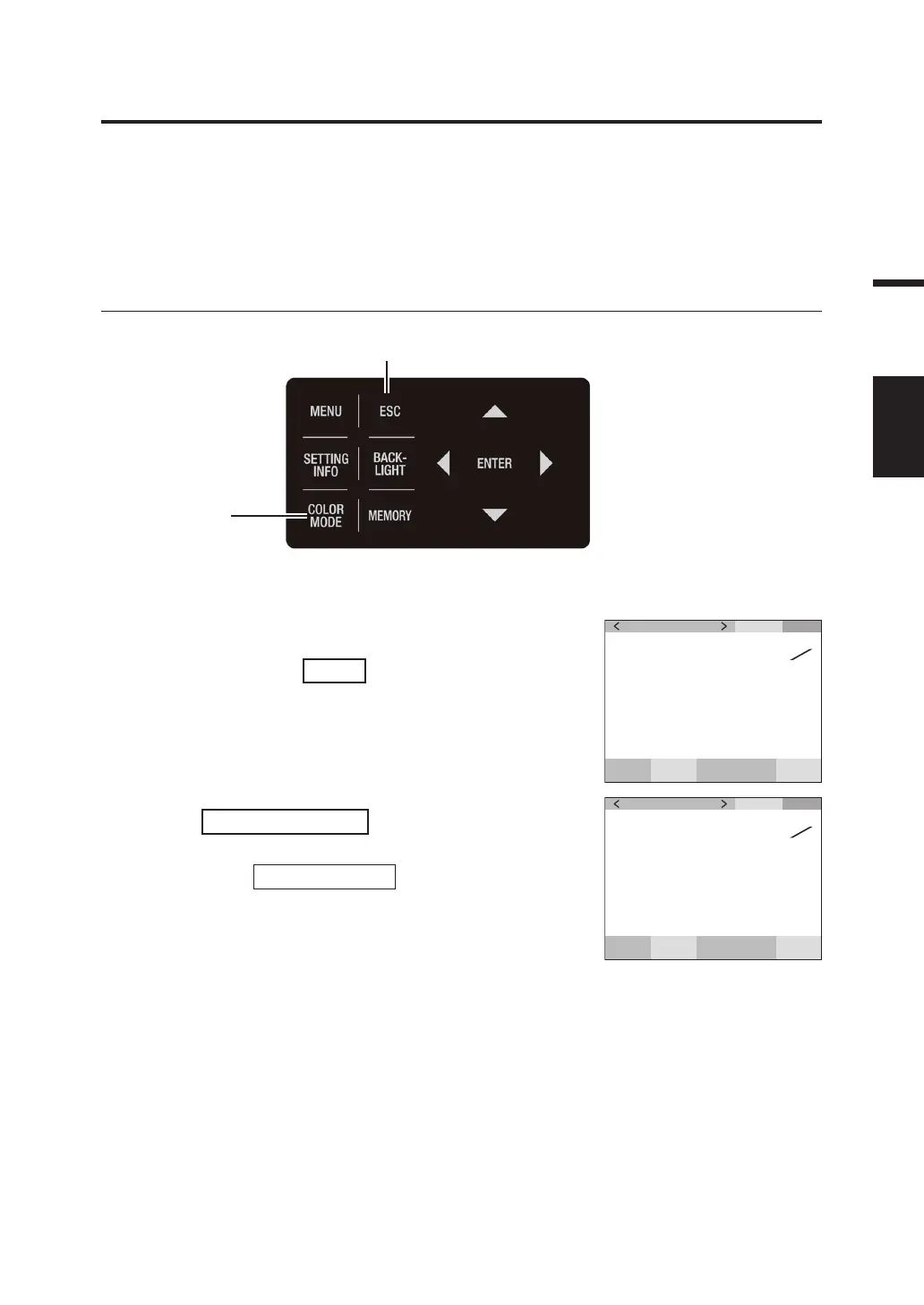

Operating Procedure
2
1
1. When the MENU or MEMORY screen is
displayed, press
ESC
key to switch to
the MEAS screen.
MEAS SNGL
UC00
SPD
Nrm
CMF
2 ˚
SYN
[
Hz
]
59.94
ACC
Non
cd
m
2
Lv 49.66
0 . 4045
0 . 4088
x
y
1 ˚
2. Press
COLOR MODE
key to display
the desired color space.
While pressing
COLOR MODE
key, measurement
screen switches in order of L
v
xy  L
v
u’v’  L
v
T
cp
∆uv 
XYZ  λd/Pe  Spectral graph  L
v
xy  and so on.
When the color matching function is other than
CIE1931 (2°), it switches in order of Yxy

Yu’v’

XYZ

λ
d/P
e

Spectral graph

Yxy

and so on.
The color space setting is saved even after the power
switch is turned off (O).
MEAS SNGL
UC00
SPD
Nrm
CMF
2 ˚
SYN
[
Hz
]
59.94
ACC
Non
cd
m
2
Lv 49.66
0 . 2280
0 . 5185
u’
v’
1 ˚
