500 SERIES INSTALLATION MANUAL JULY 2016PAGE 16
Step 3: Oil Reservoir Installation (continued)

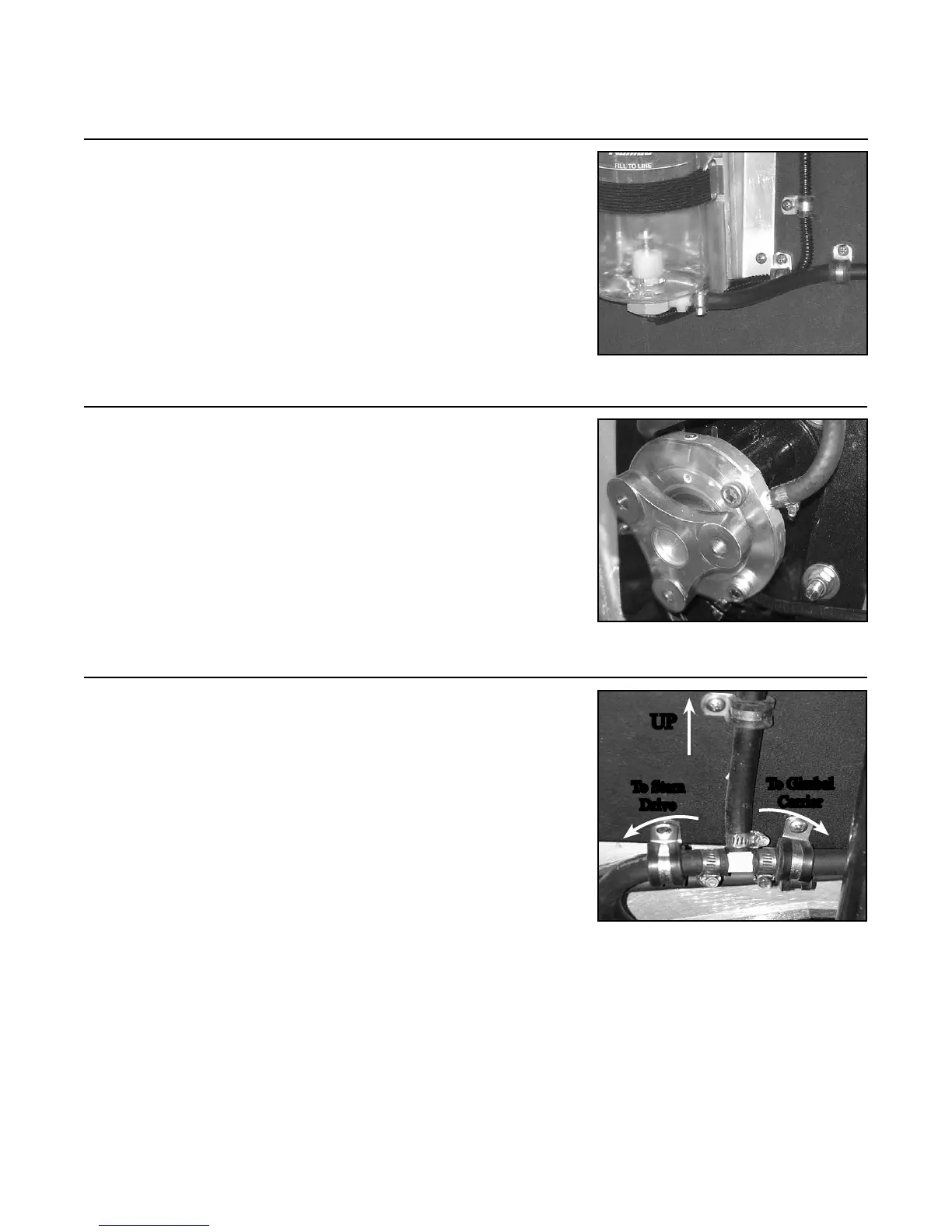

3.3 Connect the long hose (1/4 in. that feeds the brass “T”
tting) to the bottom of the reservoir bottle with a hose
clamp.
NOTE: Ensure the bottle is mounted 4 ft. (122 cm) or
less from the carrier assembly and stern drive, and 4 ft.
(122 cm) or less from the trim pump.
3.4 Connect the 3/8 in. hose from the brass “T” to the gimbal
carrier nipple. Secure hose clamp.
3.5 Connect the 3/8 in. hose (attached to gimbal housing) to
the brass “T” tting.
NOTE: Oil hose should be cut to length for easiest
downward ow.
FIGURE 3D
FIGURE 3E
FIGURE 3F
UP
To Stern
Drive
To Gimbal
Carrier
To Next Page
