NOTE: Drive shaft shrouds are optional equipment and
are not shipped with Konrad stern drives unless ordered.
18.1 If the drive shaft is already installed, remove the lower
plate/strap from the shroud (shrouds are shipped assembled
from Konrad). If the drive shaft is not installed, refer to
Step 16 on page 68 in this manual.
18.2 Place the shroud over the aft portion of the drive shaft.
Position the shroud so end with the tabs or ears are aft.
Replace the lower plate/strap removed in the previous
step.
18.3 Slide the shroud aft and place it on the four (4) center
studs of the transom assembly.
18.4 Secure the shroud using one (1) washer and one (1) nylock
nut on each stud.
18.5 Rotate drive shaft to verify adequate clearance.
Step 18: Drive Shaft Shroud Installation

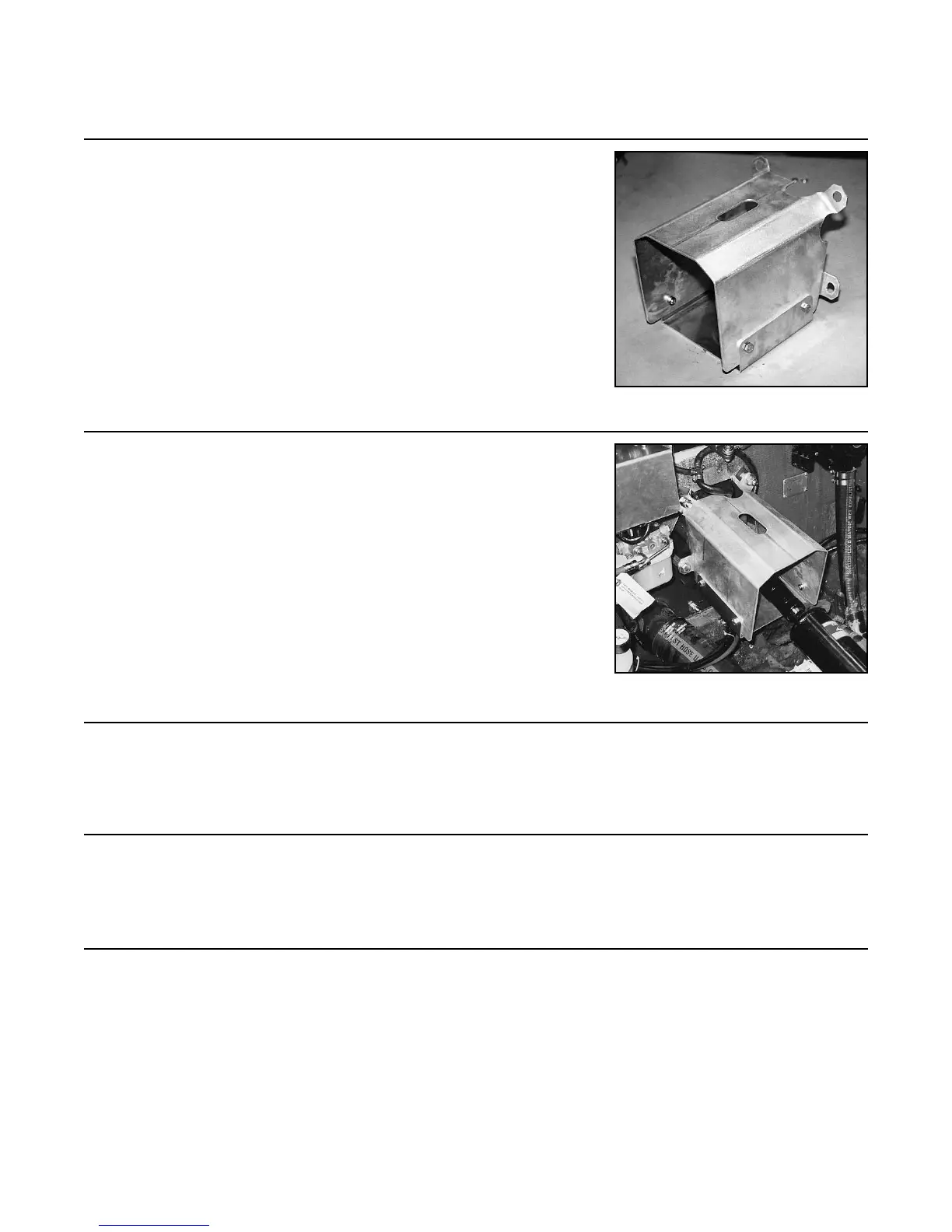

FIGURE 18A
FIGURE 18B
500 SERIES INSTALLATION MANUAL JANUARY 2010PAGE 72
