500 SERIES INSTALLATION MANUALJULY 2016 PAGE 39
Step 9: Stern Drive Lubrication
Pour Method:

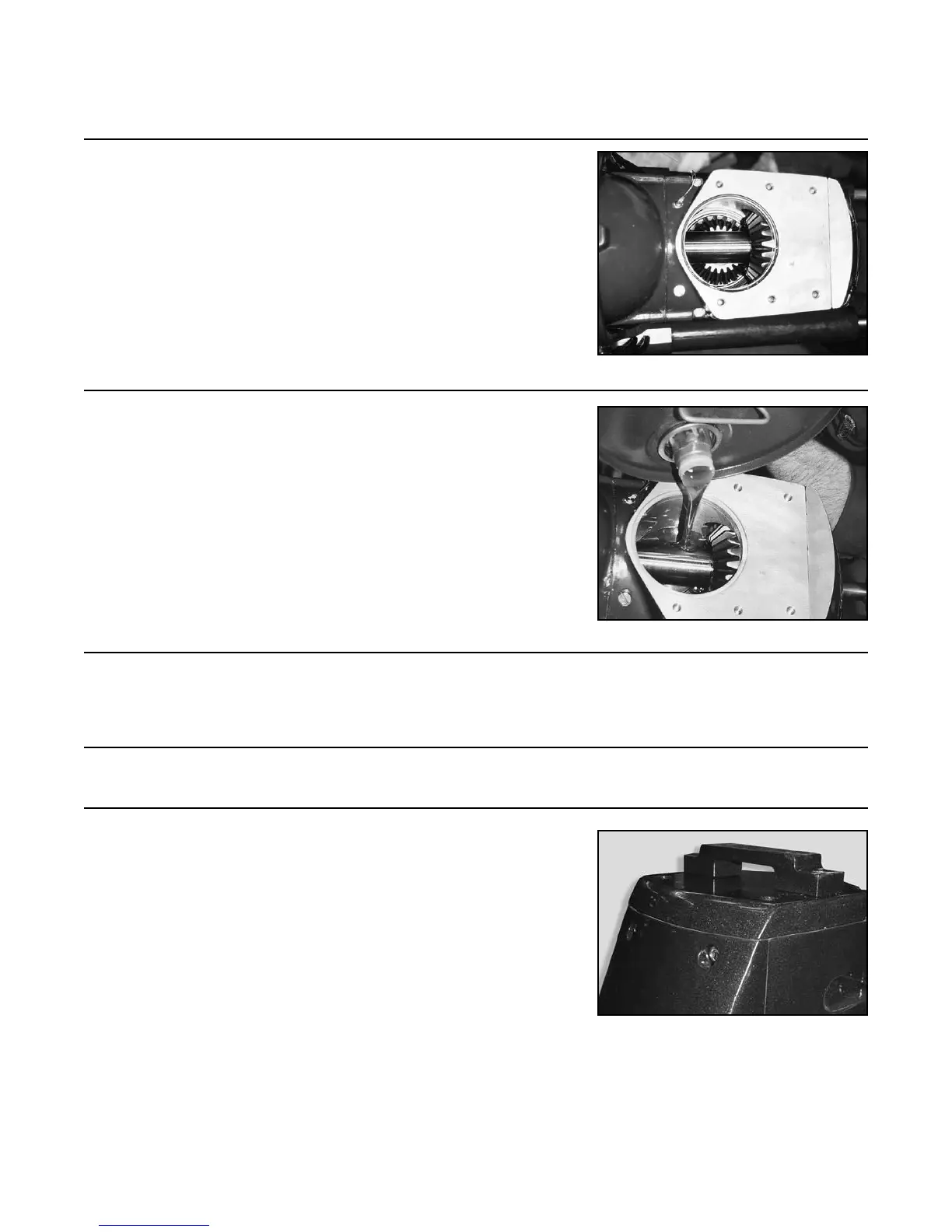

9.1 Remove the top cover (10-209) of the stern drive by
removing the six (6) socket head cap screws (10-110).
If applicable, remove emergency tiller arm bracket (12-
388) by removing the two (2) socket head cap screws (12-
421) and two (2) nylon washers (11-033) and the four (4)
socket head cap screws (10-110).
9.2 Pour in gear oil until drive is full.
9.3 Wait fteen (15) minutes. Rotate the propeller ve or six
(5-6) times in both directions during those fteen (15)
minutes.
9.4 Repeat steps 9.2 and 9.3.
9.5 Replace the top cover and the emergency tiller arm bracket
if applicable, and torque to 20 lb. ft. (27 Nm).
NOTE: Make sure top cover o-ring (10-303) is greased
and properly seated.
FIGURE 9B
FIGURE 9A
FIGURE 5C
