500 SERIES INSTALLATION MANUAL JULY 2016PAGE 68

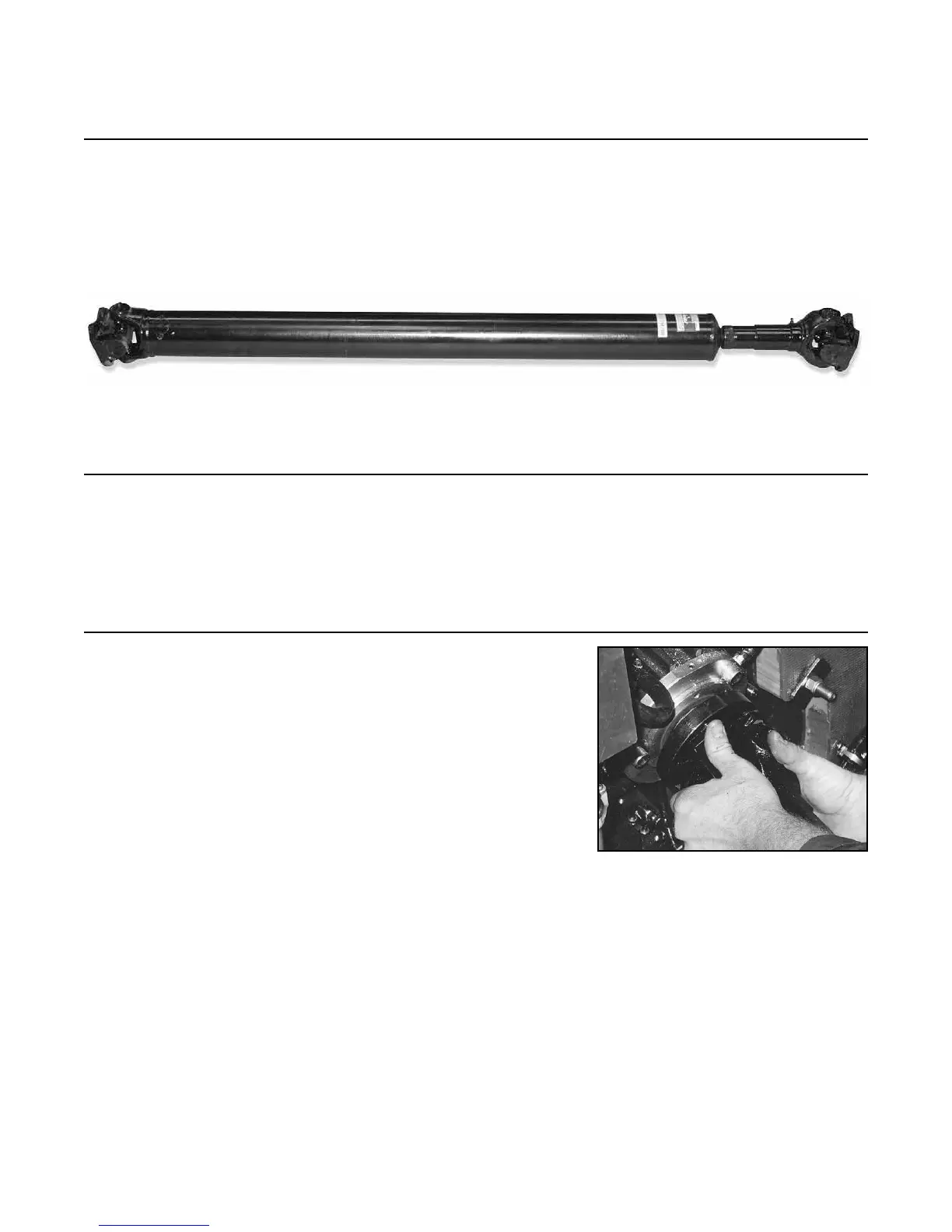

Step 16: U-Joint Extension Shaft Installation
16.1 Verify correct shaft length and installation parameters as
dened in the Alignment Specications Chart (Figure E on
page 28 in this manual) and the alignment procedure from
Step 6D on page 31 in this manual before proceeding.
16.2 If applicable, bolt transmission output ange adaptor on
to the transmission output ange. Apply Loctite to the
fasteners before tightening. Torque fasteners correctly
according to their size.
16.3 Bolt u-joint shaft on to gimbal carrier ange. Apply
Loctite to the four (4) fasteners before tightening. Torque
to 88 lb. ft. (120 Nm).
NOTE: Ensure pilot is correctly sized and fully engaged
(if applicable).
FIGURE 16A
FIGURE 16B
