500 SERIES INSTALLATION MANUAL JULY 2016PAGE 46

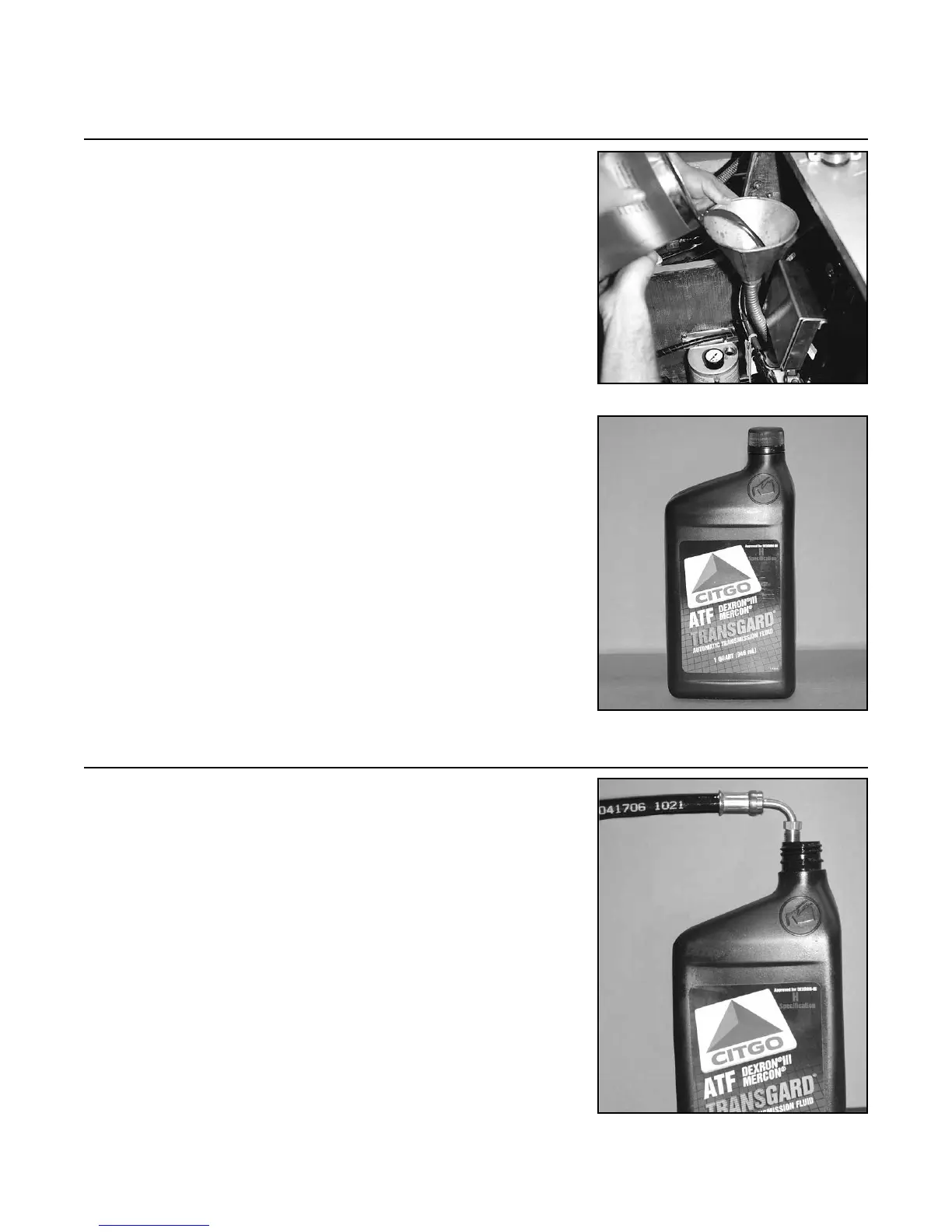

Step 11: Trim/Lift Pump Filling/Bleeding Procedure
11.1 Fill the trim/lift pump reservoir with Automatic Trans-
mission Fluid type Dextron III or a non-foaming light hy-
draulic uid.
NOTE: If ATF Dextron III is not used, it is recommended
that the trim cylinders be purged of any uid since they
are shipped new from Konrad with this uid in them.
11.2 Place the return line of the trim cylinders (the line labeled
“down”) in a container to catch any purged uid. The “up”
line should already be attached from Step 4.12 on page 21
in this manual (Trim/Lift Pump Installation). Hold one
nger over the “down” line port of the trim/lift pump to
prevent the intake of air. Trim the drive all the way up
using the toggle switches on the trim/lift control plate.
NOTE: Only the toggle switch whose LED is illuminated
can be used to trim or lift the drive.
NOTE: Fluid may need to be added if the reservoir bottle
level goes below the minimum.
FIGURE 11A
FIGURE 11B
FIGURE 11C
