500 SERIES INSTALLATION MANUALJULY 2016 PAGE 55
14.1 Steering cylinder bracket should have been mounted when
the transom assembly was installed (Step 2.3 on page 13
in this manual). If not, take the two (2) nuts and washers
off the transom assembly studs, and mount the steering
cylinder bracket at this time.
NOTE: It is also necessary to connect the continuity
cable ring to the port side stud (if applicable), if this has
not been previously done.
14.2 Install steering cylinder assembly.
14.3 With the steering cylinder ram and tiller arm in the center
position, adjust the drag link to the correct length and
attach it between the cylinder and the tiller arm with the
hardware provided (see Figure 14C).
NOTE: For a twin engine installation with an internal tie
bar, verify center to center stern drive mounting distance
and adjust tie bar to length to match. Attach the tie bar
to the tiller arms with the hardware provided (see Figure
14D).
Step 14: Power Steering System Installation

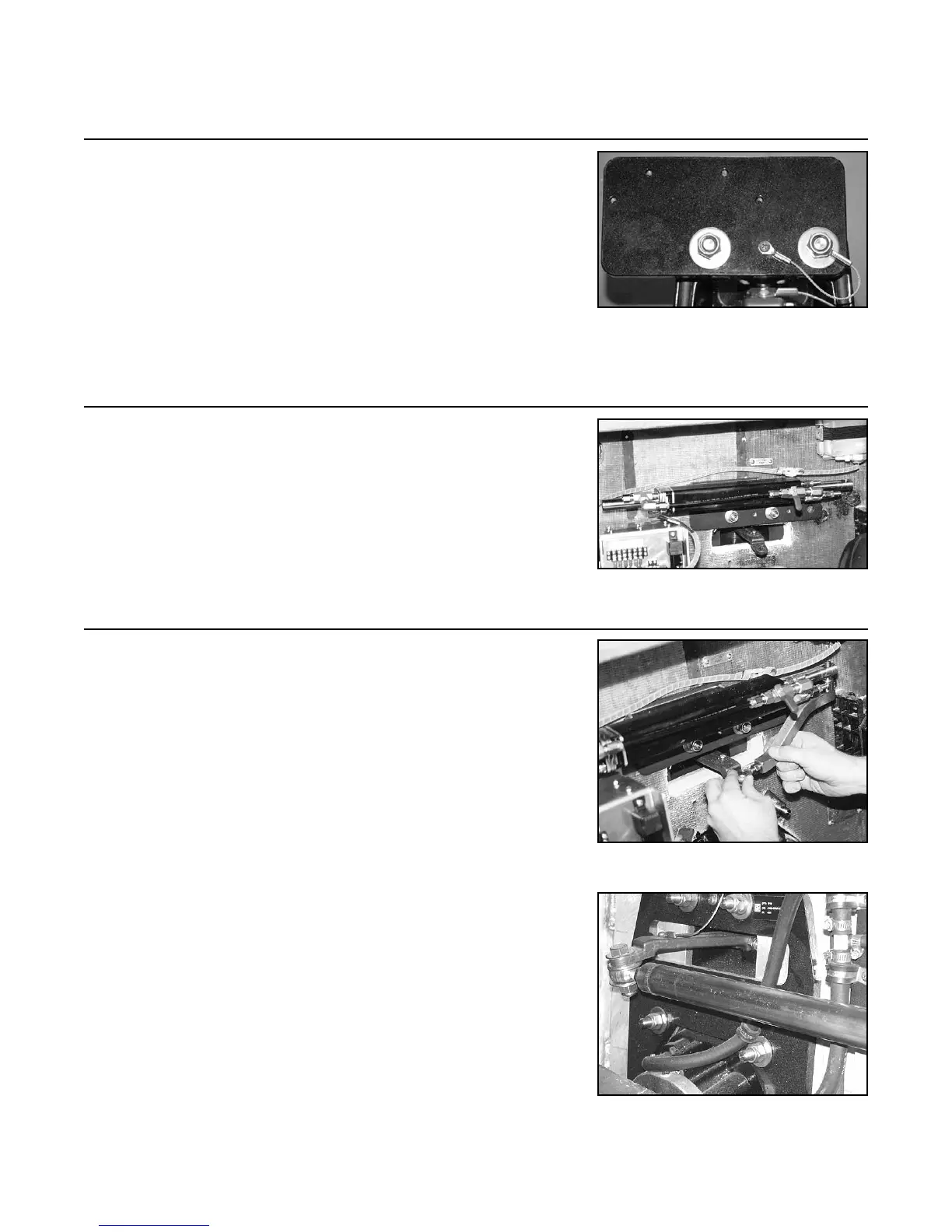

FIGURE 14D
FIGURE 14A
FIGURE 14C
FIGURE 14B
