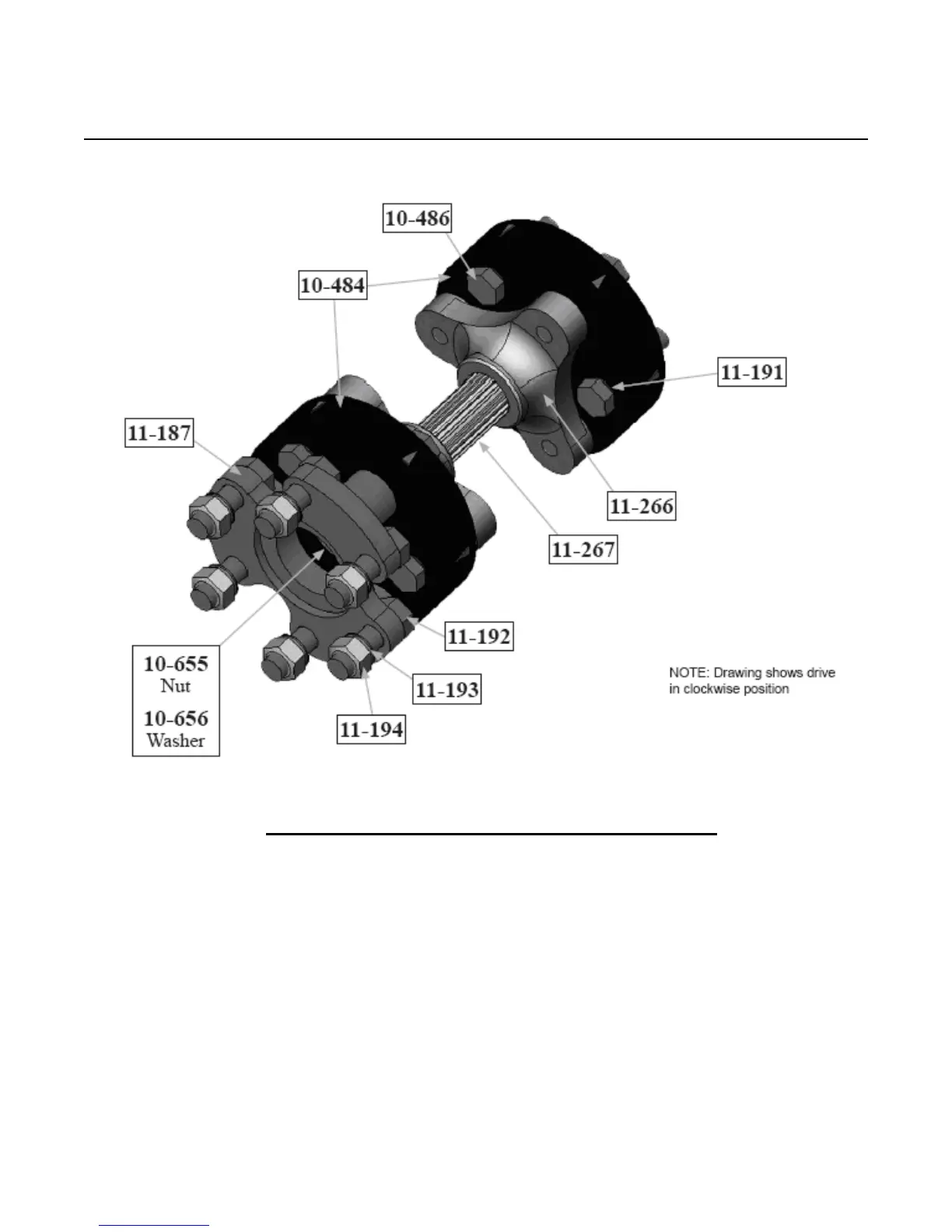

KONRAD 520 - Figure K: 30-264 Parts List

500 SERIES INSTALLATION MANUAL JULY 2016PAGE 62
PART NO. DESCRIPTION QTY.
10-484 Rubber Coupling 2
10-486 M-14 H. H. C. S. 12
10-655 Nut 2
10-656 Washer 2
11-187 Adapter Flange 1
11-191 M-14 Belleville Washer 12
11-192 M-16 H. H. C. S. 6
11-193 M-16 Belleville Washer 6
11-194 M-16 Nut 6
11-266 Flange, Female 2
11-267 Shaft, Splined 1
FIGURE K: 30-264 Parts List
