500 SERIES INSTALLATION MANUAL JULY 2016PAGE 42
Step 10: Trim/Lift Control Module Installation

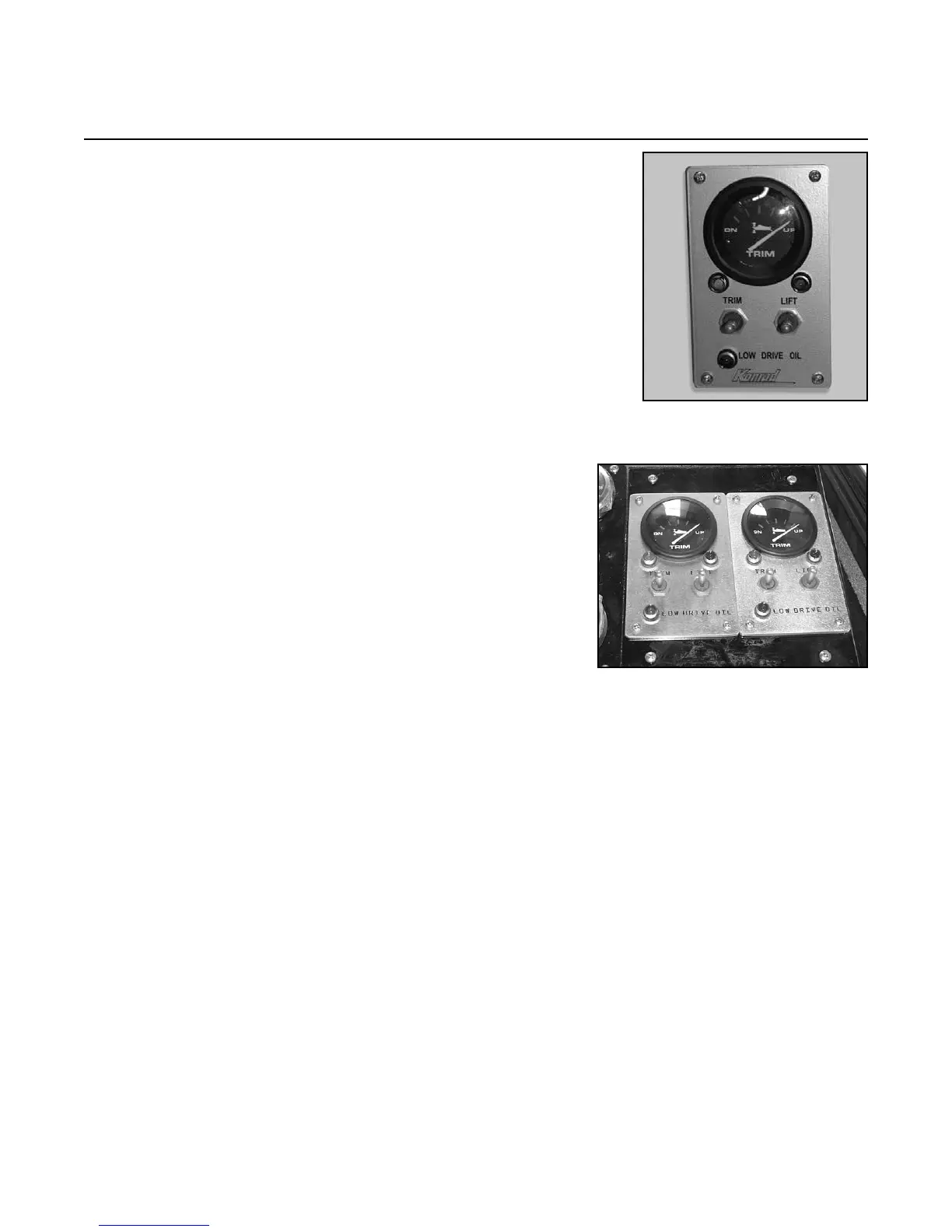

FIGURE 10A
FIGURE 10B
10.1 Select an appropriate location at the helm to mount the
trim/lift control module (the dimensions are 3.125 in.
(7.938 cm) x 5.032 in. (12.781 cm) and 4 in. (10 cm)
deep, see Figure 10A). The module should be mounted in
plain view and reach of the boat operator.
NOTE: For a twin application, it may be desirable to
mount both modules next to each other so they can be
operated with one hand simultaneously (see Figure
10B).
