500 SERIES INSTALLATION MANUAL JULY 2016PAGE 24
NOTE: If this is a direct couple tailpiece application, do
not install the stern drive at this time. Return to this step
after completing Step 6A on page 29 in this manual.
5.1 Rig the Konrad drive for lifting. Secure the stern drive to
the lifting device with a nylon strap.

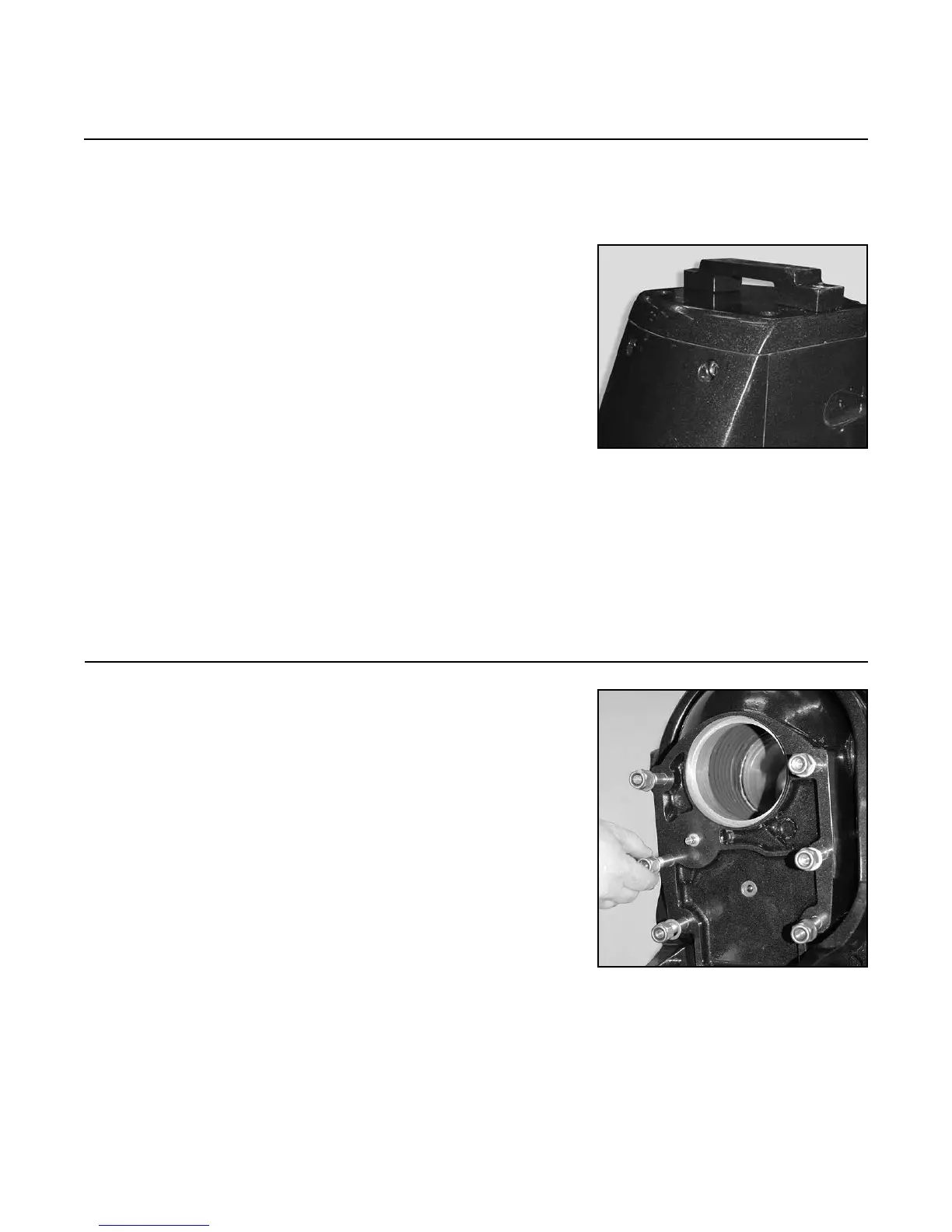

NOTE: Optional lifting bracket (12-388) is available to
assist in the lifting process (see Figure 5A).
520 Stern Drive Weight is 188 lbs. (85.3 kg)
540 Stern Drive Weight is 153 lbs. (69.4 kg)
560 Stern Drive Weight is 167 lbs. (75.7 kg)
NOTE: An overhead lifting device is the preferred meth-
od of lifting the Konrad drive. A lifting cart or forklift may
be used as an alternate lifting device.
5.2 Remove the six (6) nuts (10-334) and six (6) washers
(10-415) from the bell housing studs (10-250). (These
nuts and washers are on the studs when shipped from
Konrad).
FIGURE 5A
Step 5: Stern Drive Installation
FIGURE 5B
