500 SERIES INSTALLATION MANUALJULY 2016 PAGE 25
Step 5: Stern Drive Installation (continued)
5.3 Using marine grade grease, grease both sides of the gasket
(10-305) and slide it over the six (6) studs on the bell
housing. Slide it forward until it makes full contact with
the bell housing face.
NOTE: Observe proper orientation of gasket.
5.4 Grease the o-rings (10-306) (see Figure 5D) and (10-493)
(see Figure 5E).

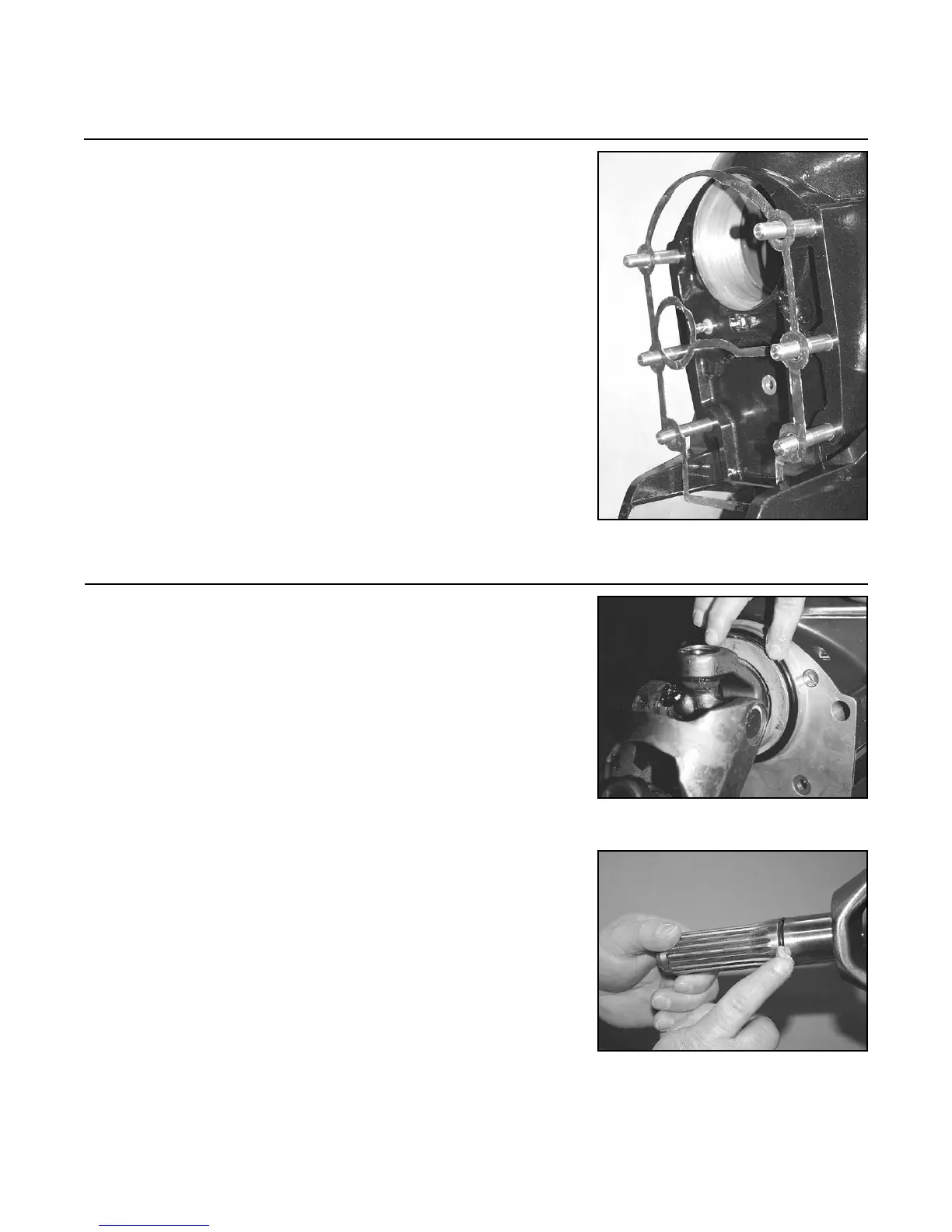

FIGURE 5C
FIGURE 5E
FIGURE 5D
