500 SERIES INSTALLATION MANUALJULY 2016 PAGE 69

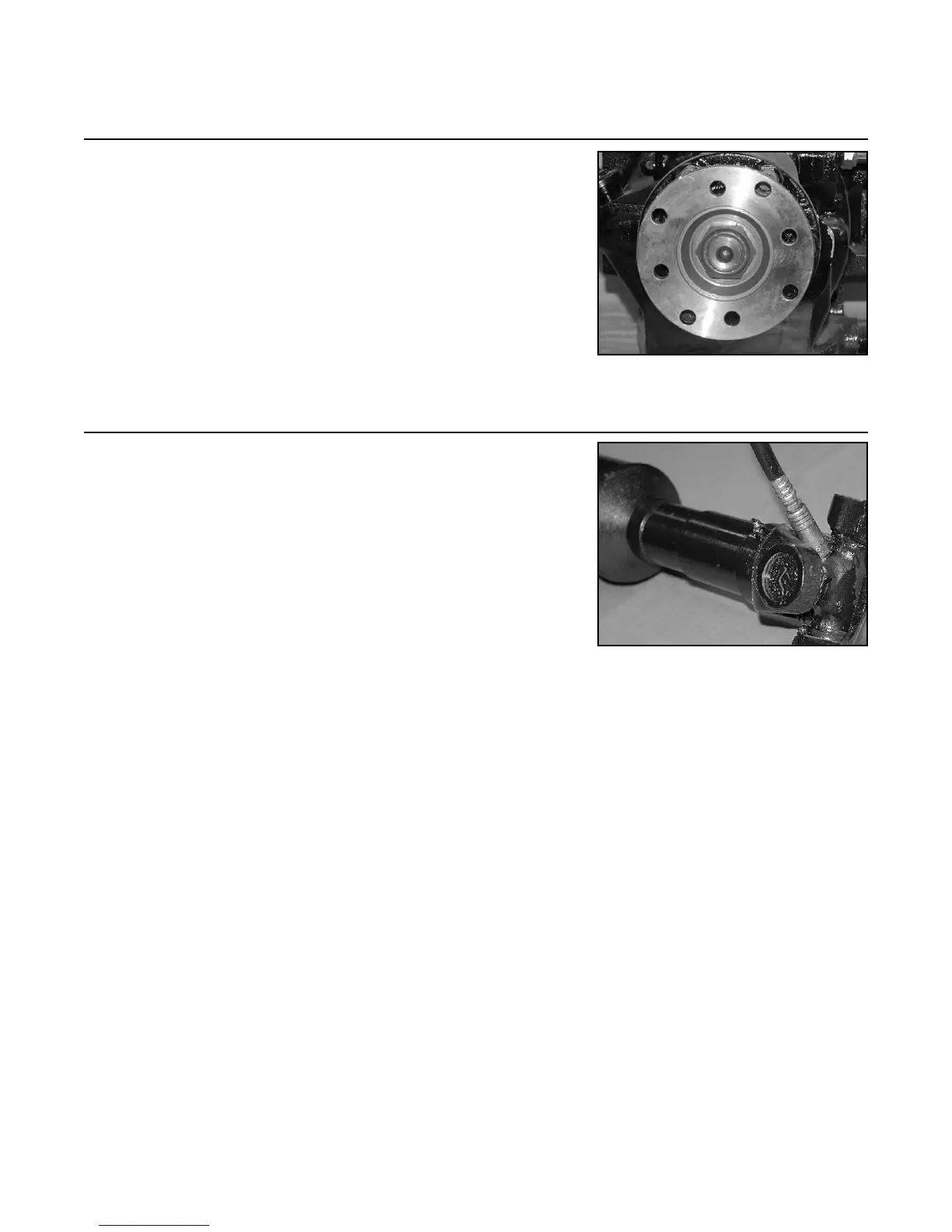

16.4 Adjust u-joint shaft to appropriate length and bolt it on to
the transmission output ange (or output ange adaptor).
Apply Loctite to the four (4) fasteners before tightening.
Torque to 88 lb. ft. (120 Nm).
NOTE: Ensure pilot is correctly sized and fully engaged
(if applicable).
NOTE: Ensure that the shaft is installed within the
working limitations of the slip compensating spline.
16.5 Grease u-joints and extension joint before operation of
the shaft occurs.
FIGURE 16C
Step 16: U-Joint Extension Shaft Installation (continued)
FIGURE 16D
