500 SERIES INSTALLATION MANUAL JULY 2016PAGE 40
Step 9: Stern Drive Lubrication (continued)
Pump Method: (Pump Required)

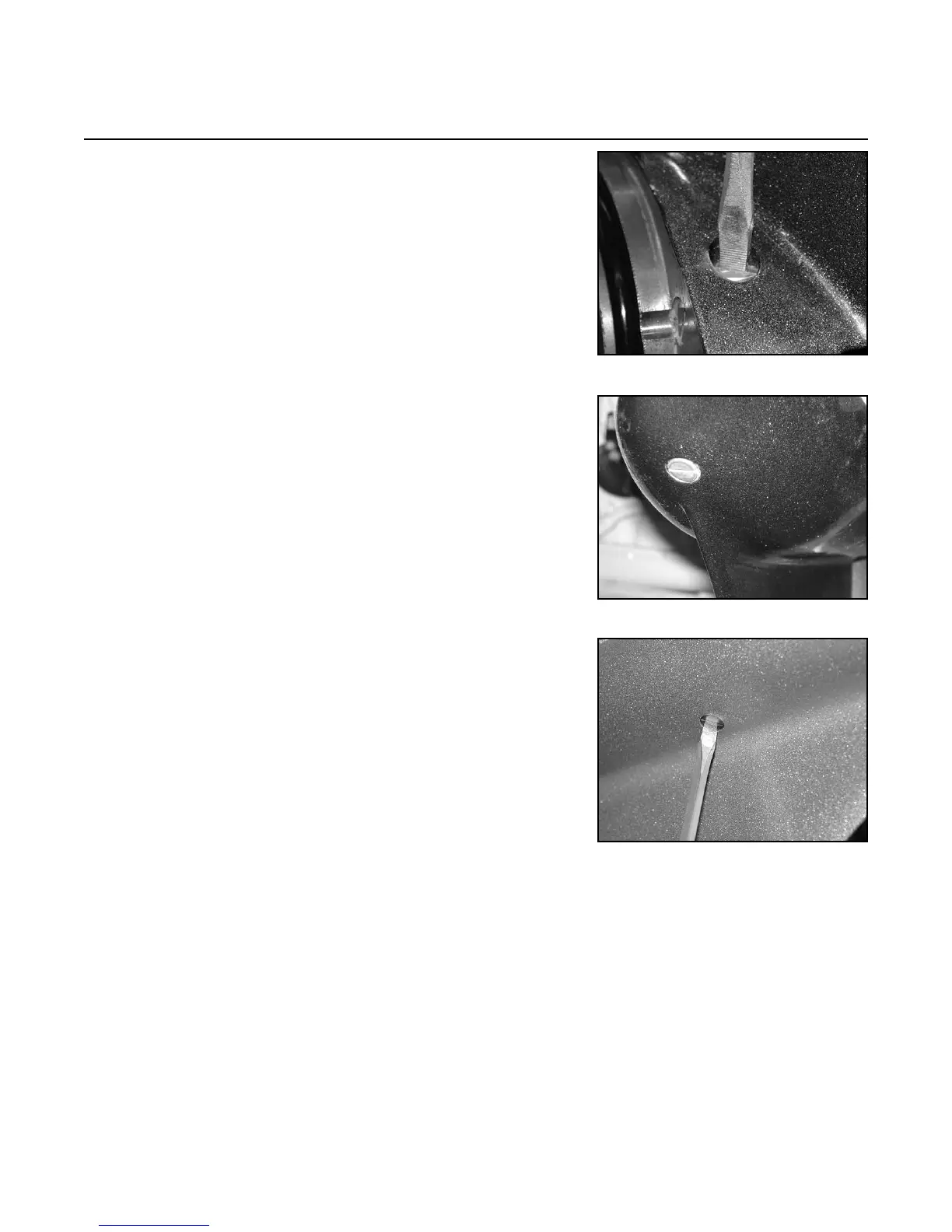

9.1a Remove the upper breather screw (10-010) located on
the top port side of the upper housing (see Figure 9D).
Remove the lower drain plug (10-155) located on the
lower housing under the tip of the nose cone on the 520
model (see Figure 9E), and the starboard side of the lower
housing on the 540 and 560 models (see Figure 9F).
FIGURE 9E
FIGURE 9D
FIGURE 9F
