500 SERIES INSTALLATION MANUALJULY 2016 PAGE 71

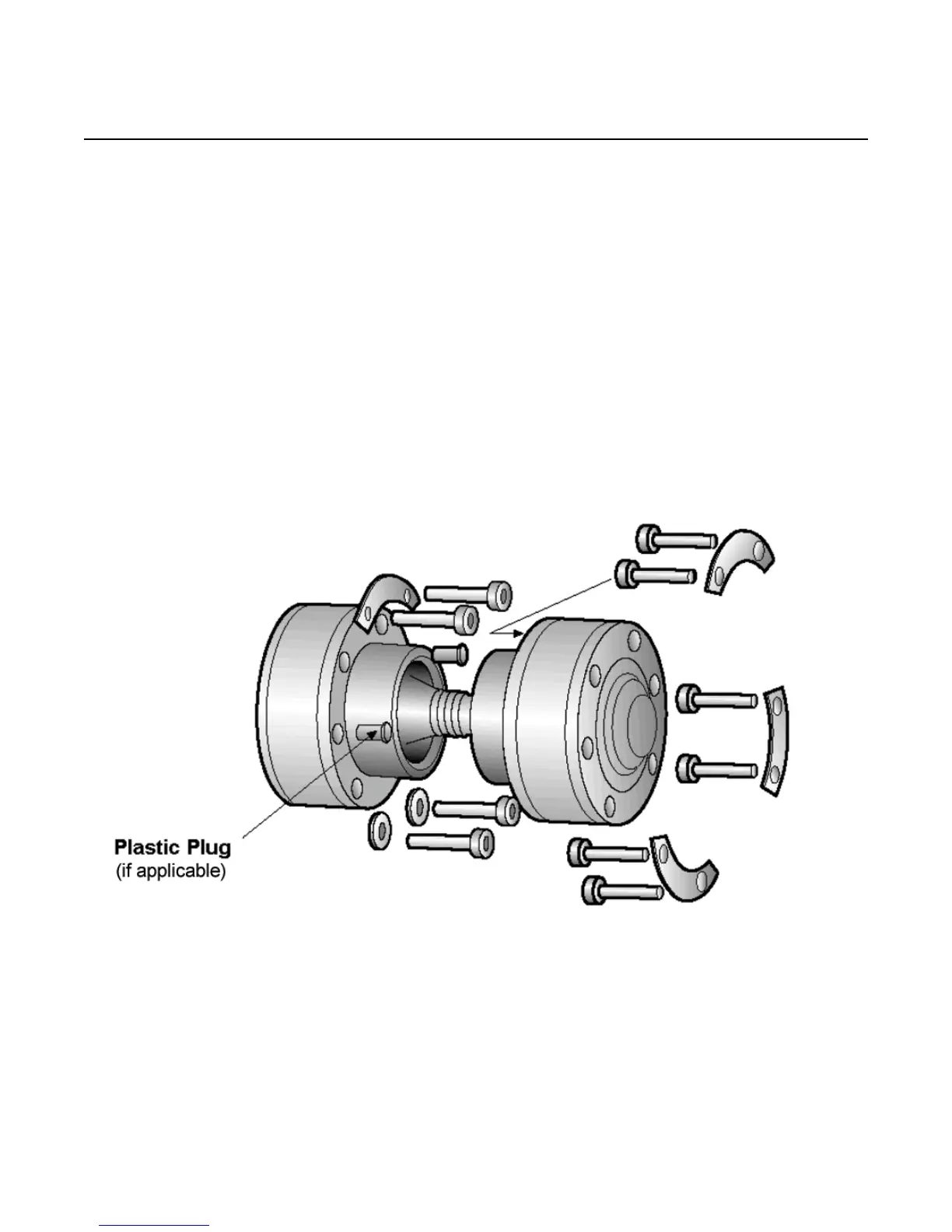

17.4 Place the CV shaft between the adaptor anges. The
shaft may be installed either direction. Fasten the shaft
to the adaptor ange on the transmission using the six (6)
S. H. C. S.s and the three (3) 2-hold washer plates
provided. Repeat this for the gimbal carrier ange. Apply
Loctite to the threads of the fasteners and torque to 85 lb.
ft. (115 Nm).
NOTE: In some cases only four (4) of the six (6) fasteners
can be installed. Inspect adaptor anges prior to shaft
installation. In this case insert a plastic plug (provided
with shaft hardware) in each of the two (2) holes without
a fastener.
Step 17: CV Extension Shaft Installation (continued)
FIGURE 18C
