Korg opsix User Manual

15

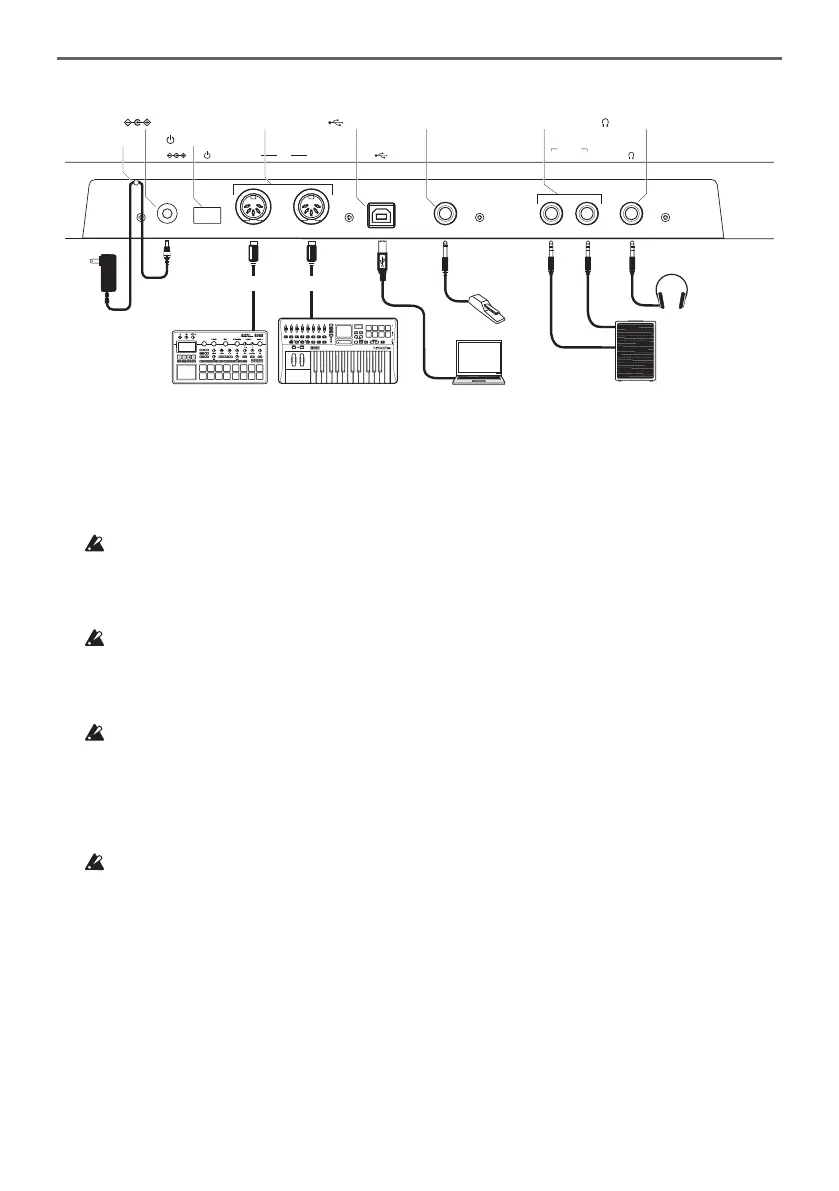

2. Rear panel connections
OUTINDAMPERMIDI
OUTPUT
L/MONOR
DC 12V
MIDI IN, OUT connectors
OUTPUT L/MONO, R jacks
Headphones
INPUT L
INPUT R
Mixer, Monitors,
Audio Interface, etc.
Damper pedal,
Pedal switch, etc.
DAMPER jack
Cord hook
(Headphones) jack
(Power) switch
(USB B) port
AC adapter
(included)
USB
Computer
USB cable
MIDI keyboard,
DAW MIDI interface, etc.
MIDI OUT
Sound module,
DAW MIDI interface, etc.
MIDI cable
MIDI IN
MIDI cable
DC 12V jack
Connecting the AC adapter
1.
Connect the DC plug of the included AC adapter to the DC 12V jack on the rear panel of the
opsix.
Be sure to use only the included AC adapter. Using any other AC adapter may cause
malfunctions.
2.
Aer connecting the DC plug, loop the AC adapter cord onto the Cord Hook.
Do not use excessive force when pulling the cord o the hook. Doing so may damage
the plug.
3.
Connect the plug of the AC adapter to an AC outlet.
Be sure to use an AC outlet of the correct voltage for your AC adapter.
Other connections
Connect the devices as appropriate that you will use.
Be sure that the power on all of your devices is turned o before you make connec-
tions. Leaving the power on when you make connections may cause malfunctions, or
damage your speaker system and other components.
Audio equipment
OUTPUT L/MONO, R jacks (impedance-balanced 6.3 mm TRS phone jacks): Connect these TRS
jacks to a mixer, audio interface, monitor system, etc. Adjust the volume level using the VOLUME
knob.
Headphone jack (6.3 mm stereo phone jack): Connect the headphones here. is carries the same
signal as that of OUTPUT L/MONO and R.

Korg opsix Specifications

General

Equalizer	Yes
Product type	Digital synthesizer
Product color	Black
Sound effects	Chorus, Flanger/Digital Signal Processing (DSP), Phaser, Reverberation
Sound effects quantity	500
Keyboard number of keys	37
Maximum polyphony (notes)	32
Headphone outputs	1
DC input voltage	12 V
Power source type	AC

Weight and Dimensions

Depth	338 mm
Width	565 mm
Height	90 mm
Weight	2900 g
