Korg opsix User Manual

68

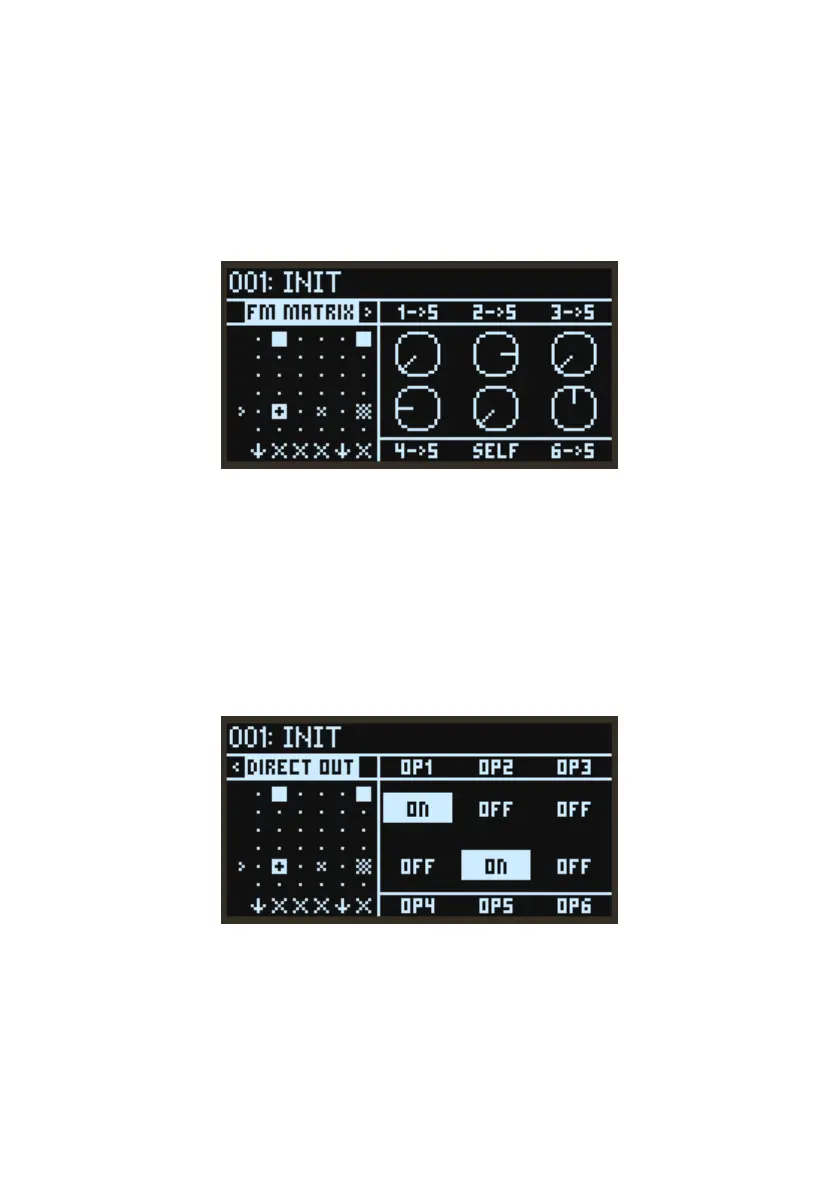

FM MATRIX
is sets how the Operators connect to each other and how strongly they connect.
e rows show how the Operators are lined up, and the columns show whether they send their
signals to other Operators. For instance, op1 is shown in the lemost column. e six dots shown
from top to bottom show the signal feed level going from Operator 1 to Operators 1–6. Increasing
the signal feed will make the dots bigger.
e lowest row shows whether the Operator itself will output to the lter of the next row. “
Ô
”
indicates that it will output, and “X” indicates that it will not output.
x->y (OPx -> OPy)
is sets the modulation signal level sent from OPx to OPy. Setting this to 100% will set the same
level as when the preset algorithm is connected.
SELF (OPx Self Feedback)
is sets the size of the modulation signal that OPx send to itself. is will have the same eect as the
FB (Feedback) parameter when the Operator mode is “FM”, but this can be used in other modes
besides FM.
DIRECT OUT
OPx (OPx Direct Out)
When this is on, the OPx output signal will be outputted as audio.

Korg opsix Specifications

General

Equalizer	Yes
Product type	Digital synthesizer
Product color	Black
Sound effects	Chorus, Flanger/Digital Signal Processing (DSP), Phaser, Reverberation
Sound effects quantity	500
Keyboard number of keys	37
Maximum polyphony (notes)	32
Headphone outputs	1
DC input voltage	12 V
Power source type	AC

Weight and Dimensions

Depth	338 mm
Width	565 mm
Height	90 mm
Weight	2900 g
