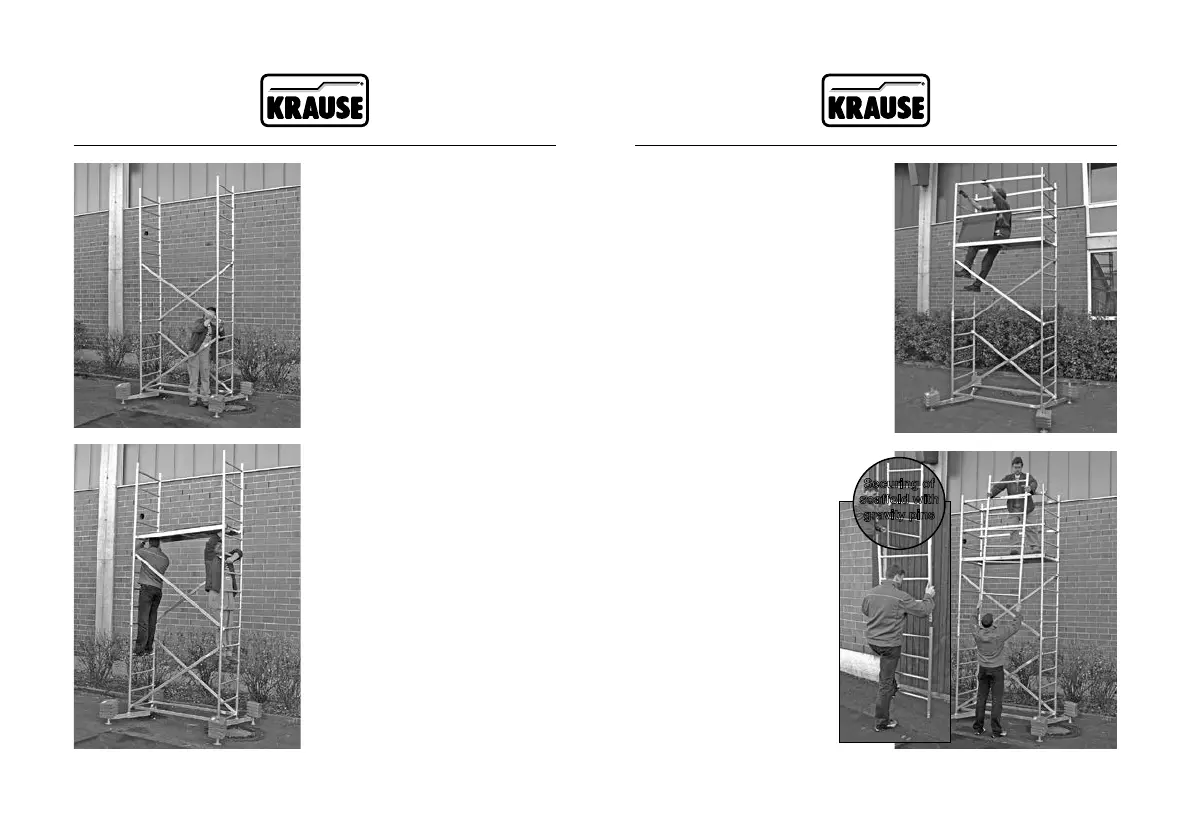

Step 5
Connect the two vertical frames
with two diagonal braces mounted
crosswise, attaching them to the 6th
rung on one side and to the 10th
rung on the other side.
Secure all braces with safety sets.
Step 6
Attach the platform at the 5th rung
from the top. Secure the platform with
safety sets.
Basicscaffoldwithrstandsecondextension
65 66
Basicscaffoldwithrstandsecondextension
Securing of
scaffold with
gravity pins
Step 8
Mount one vertical frame
(1.0 x 0.65 m) to the other
and secure them with
gravity pins.
Take the pre-assembled
vertical frames which are
handed up to you, and insert
the vertical sections into the
already mounted vertical
frames.
Secure them with the gravity
pins.
Step 7
Climbing half standing down in the
hatch, give the rail braces up and
assemble the rail braces front and
behind in the 1st and 3rd rung from
the top.
Secure all braces with safety sets.
Climb only then on the platform.
