Krone X-Disc 620 - Stop Points; Parking the Machine

Commissioning
32
Pos: 45.7 /Überschri ften/Überschri ften 2/A-E/Anschlagpunk te @ 7\mod_1216717518036 _78.docx @ 106550 @ 2 @ 1

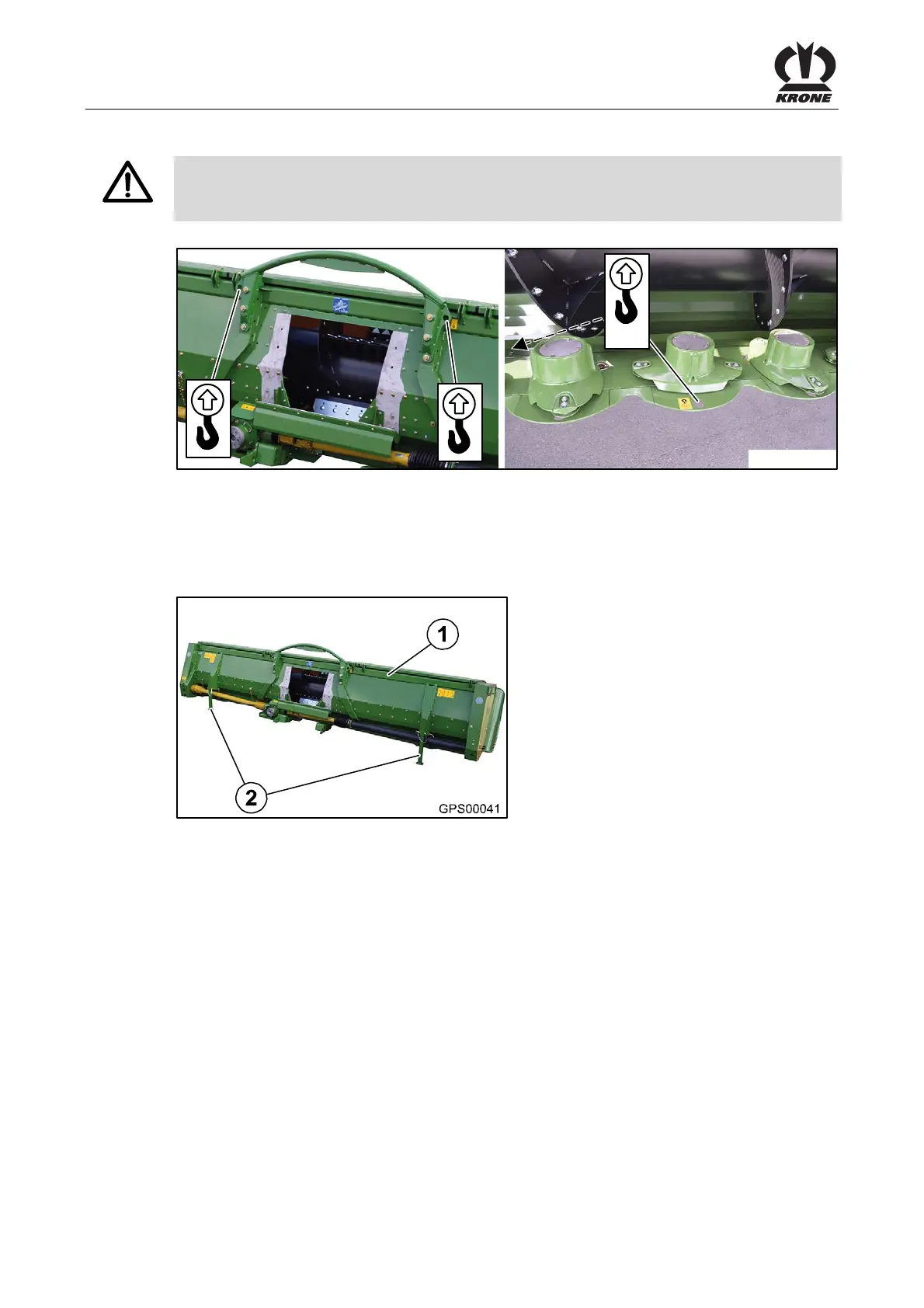

5.3 Stop points
Pos: 45.8 /BA/Inbetr iebnahme/Vorsätze/ Anschlagpunkte Gefahr hinweis @ 12\mod_1224 668106422_78.doc x @ 152419 @ @ 1
Warning! - Stop and transportation equipment inadequately dimensioned.
Effect: Danger to life, serious injuries or serious damage to the machine
Use only adequately dimensioned stop and transportation equipment (crane, ropes)!
Pos: 45.9 /BA/Inbetr iebnahme/Vorsätze/ Adapterrahmen/Ansc hlagpunkte Bild X-Di sc 620 @ 336\mod_14298694870 83_78.docx @ 2556877 @ @ 1
GPS00040
2x
Fig. 4
Pos: 45.10 /BA/Inbetr iebnahme/Vorsätze/ Anschlagpunkte @ 12\m od_1224668047156_7 8.docx @ 152398 @ @ 1
• For transporting from one place to another onsite, (e.g. loading) brace the lifting tool against
the illustrated points.
Pos: 45.11 /Übersc hriften/Überschri ften 2/A-E/Abstellen der Maschine @ 19\mod_12384 03937949_78.docx @ 2156 39 @ 2 @ 1
5.4 Parking the machine
Pos: 45.12 /WHB/Allg emeines/X-Disc/ X-Disc 620 abstellen @ 336\ mod_1429870638582_78. docx @ 2556934 @ @ 1
Fig. 5
• Put cutting system (1) down with moved out and secured parking supports (2) on fixed and
level ground.
