10.15 Rubber Strip
GPS00030
Fig. 45

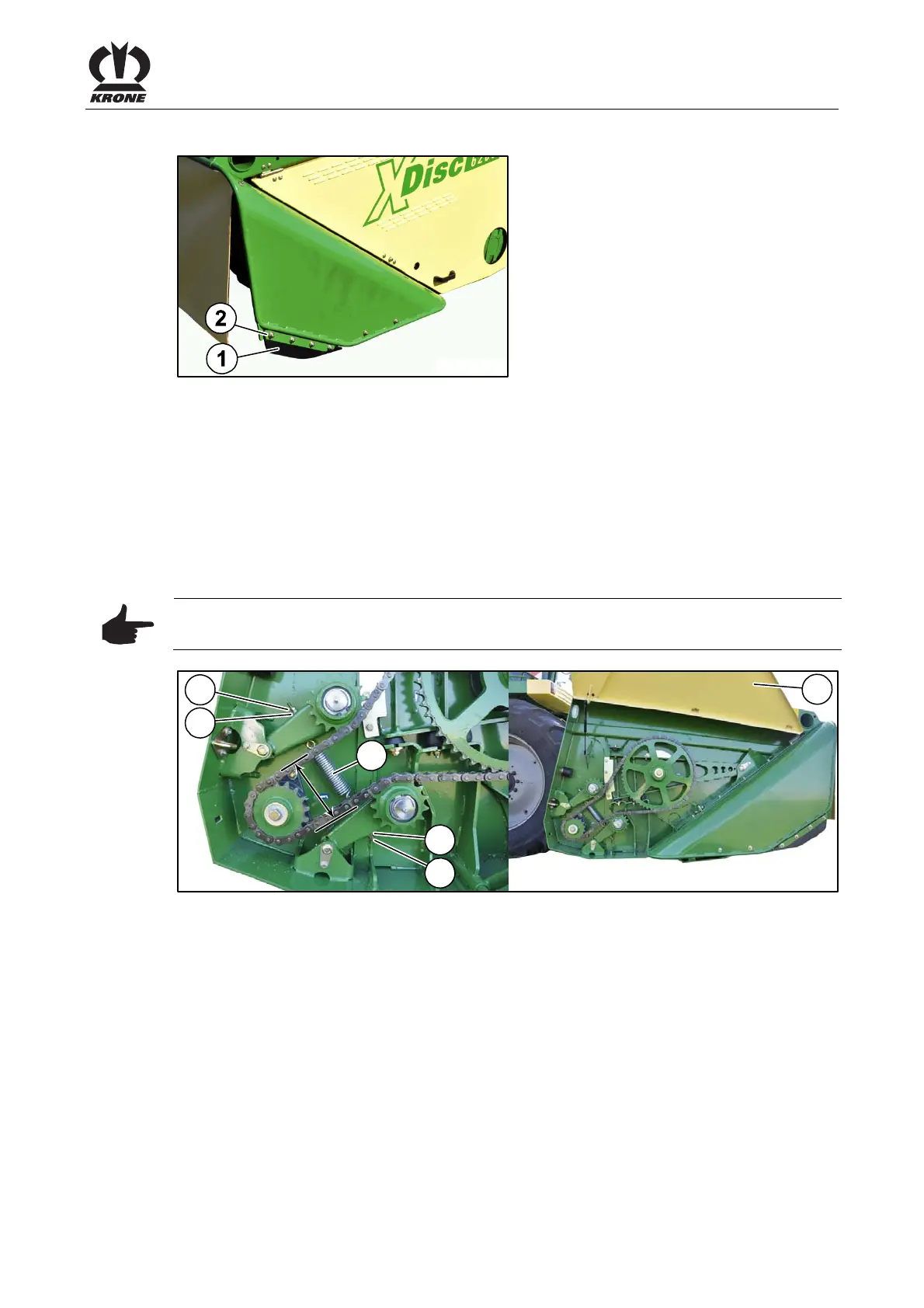

The rubber strips (1) (right and left machine side) are subject to a natural wear caused by the
crop. They must therefore be checked for wear and damage before every use and they must be
replaced, if necessary.
Replacing rubber strips:
• Unscrew the screw connections (2) and replace the rubber strips by new ones.
• Tighten screw connections (2).
Pos: 59.33.1 /Überschr iften/Überschr iften 2/A-E/Antri ebsketten @ 27\mod_12463552 34599_78.docx @ 267399 @ 2 @ 1
10.16 Drive chains
Pos: 59.33.2 /BA/W artung/Antriebskett en (Ketten)/Hinweis Antr iebsketten Kontr ollieren @ 92\mod_1326 780628689_78.doc x @ 781669 @ @ 1
Note
Check the pretension of the drive chains every 10 hours of operation and correct if necessary.
Pos: 59.33.3 /BA/W artung/Antriebskett en (Ketten)/Antrieb skette X-Disc @ 92\ mod_1326780583141_78.doc x @ 781641 @ @ 1
GPS00027
1
2
3
4
3
2
Fig. 46
• Open the protective cover (1) on the right-hand side of the machine
• Loosen the counter nut (2) and turn the hexagonal nut (3) to correct the pretension of the
chain in the upper and lower areas so that the spring path between the eye screw is 150-
180 mm
• Tighten the counter nut (2)
