10.8 Oil level check and oil change on the cutter bar
Pos: 59.23.2 /Überschr iften/Überschr iften 3/K-O/Ölwechsel @ 0\ mod_1197021941955_78. docx @ 16139 @ 3 @ 1
10.8.1 Oil change
Pos: 59.23.3 /BA/W artung/Mähwerke/Hin weis Ein Ölwechsel am Mähholm is t nicht erforder lich. @ 68\mod_130457739138 8_78.docx @ 628708 @ @ 1
Note
No oil change is required on the cutter bar.
Pos: 59.23.4 /Überschr iften/Überschr iften 3/K-O/Ölkontr olle @ 0\mod_1197021908190 _78.docx @ 16120 @ 3 @ 1
10.8.2 Checking the oil level
Pos: 59.23.5 /BA/Si cherheit/7. Gefahr enhinweise alt/Mäh werke/Gefahr - Schnell rotier ende Messerteller /Messertrommel_2 @ 0\ mod_1197022569252_78. docx @ 16165 @ @ 1
Danger! - Rapidly rotating cutting discs/blade drums.
Effect: Danger to life or serious injuries.
Lower guards. Nobody should be in the danger zone around the machine.
Pos: 59.23.6 /BA/Si cherheit/7. Gefahr enhinweise alt/Mäh werke/Gefahr - Schnell rotier ende Messerteller /Messertrommeln_1 @ 0\ mod_1197017696736_78. docx @ 16001 @ @ 1
Danger! - Rapidly rotating cutting discs/blade drums.
Effect: Danger to life or serious injuries.
• Switch off the engine and remove the ignition key.
• The cutting discs/blade drums continue to run!
• Do not leave the driver’s cab until the cutting discs/blade drums have come to a complete
stop.
Pos: 59.23.7 /Überschr iften/Überschr iften 3/K-O/Mähholm au srichten @ 0\mod_11970179 56815_78.docx @ 16042 @ 3 @ 1
10.8.3 Aligning the Cutter Bar
Pos: 59.23.8 /BA/W artung/Mähwerke/Mähhol m ausrichten EasyCu t @ 3\mod_1204721803648_7 8.docx @ 72358 @ @ 1
EC-0-001

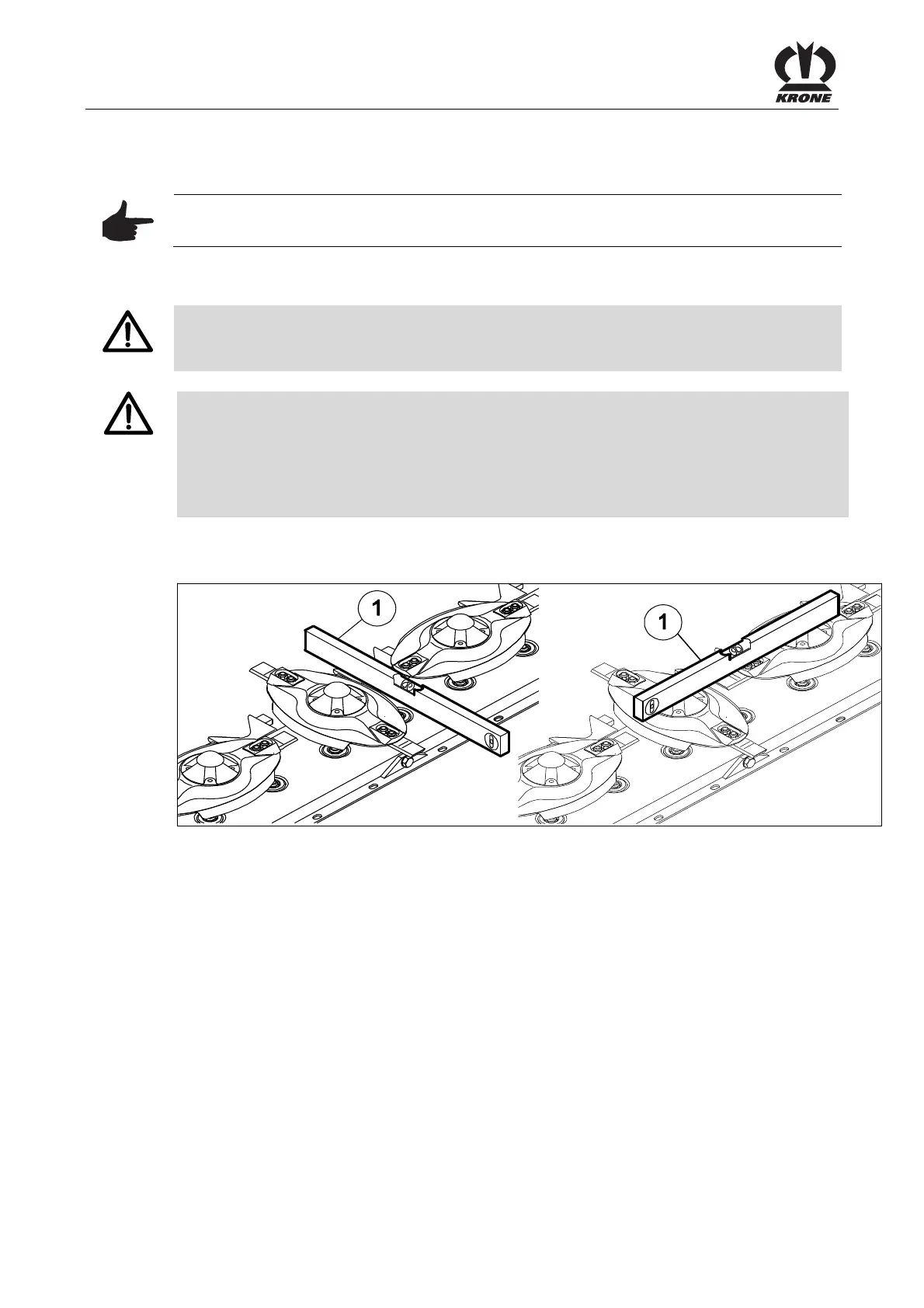

Fig. 29
Oil level check
• Align the cutter bar using a spirit level (1).
Crosswise
• Lay the spirit level on top of the cutting disc hub parallel to the direction of travel.
Lengthwise
• Lay the spirit level (1) on top of two mower discs.
