Operation
47
Pos: 53.10 /Übersc hriften/Überschri ften 2/A-E/Abbau der Masc hine @ 3\mod_12047923878 24_78.docx @ 73245 @ 2 @ 1
8.2 Detaching the machine
Pos: 53.11 /BA/Sic herheit/Vorsätze/ Gefahr - Maschine abstel len X-Disc @ 12\mod_12247429 50045_78.docx @ 153301 @ @ 1
DANGER! – Unexpected movements of the machine
Effect: Danger to life, serious injuries
• No one is permitted inside the danger zone.
• Place the machine on solid and level ground only and with the parking supports extended.
• You should not unhitch the machine until the engine has been switched off and the ignition
key has been removed.
• Secure the forage harvester to prevent it from rolling back.
• Use extreme caution when attaching implements to or detaching them from the forage
harvester! The accident prevention regulations must be complied with absolutely.
• When detaching the machine, do not walk between the forage harvester and the machine!
Pos: 53.12 /BA/Bedienun g /Vorsätze/Maisgebi ss/Abbau/Schneid werk ausheben @ 68\mod_ 1304420964999_78.doc x @ 627351 @ @ 1
• Lifting cutting system
Pos: 53.13 /BA/Bedienun g /Hinweis Maschine s tillsetzen @ 26\mod_12444 43159144_78.doc x @ 257575 @ @ 1
Note
Stop the machine.
Pos: 53.14 /BA/Bedienun g /Vorsätze/EASYFLOW/ Abbau T1 Bild X-Disc 620 @ 337\mod_1430206 458918_78.doc x @ 2559428 @ @ 1

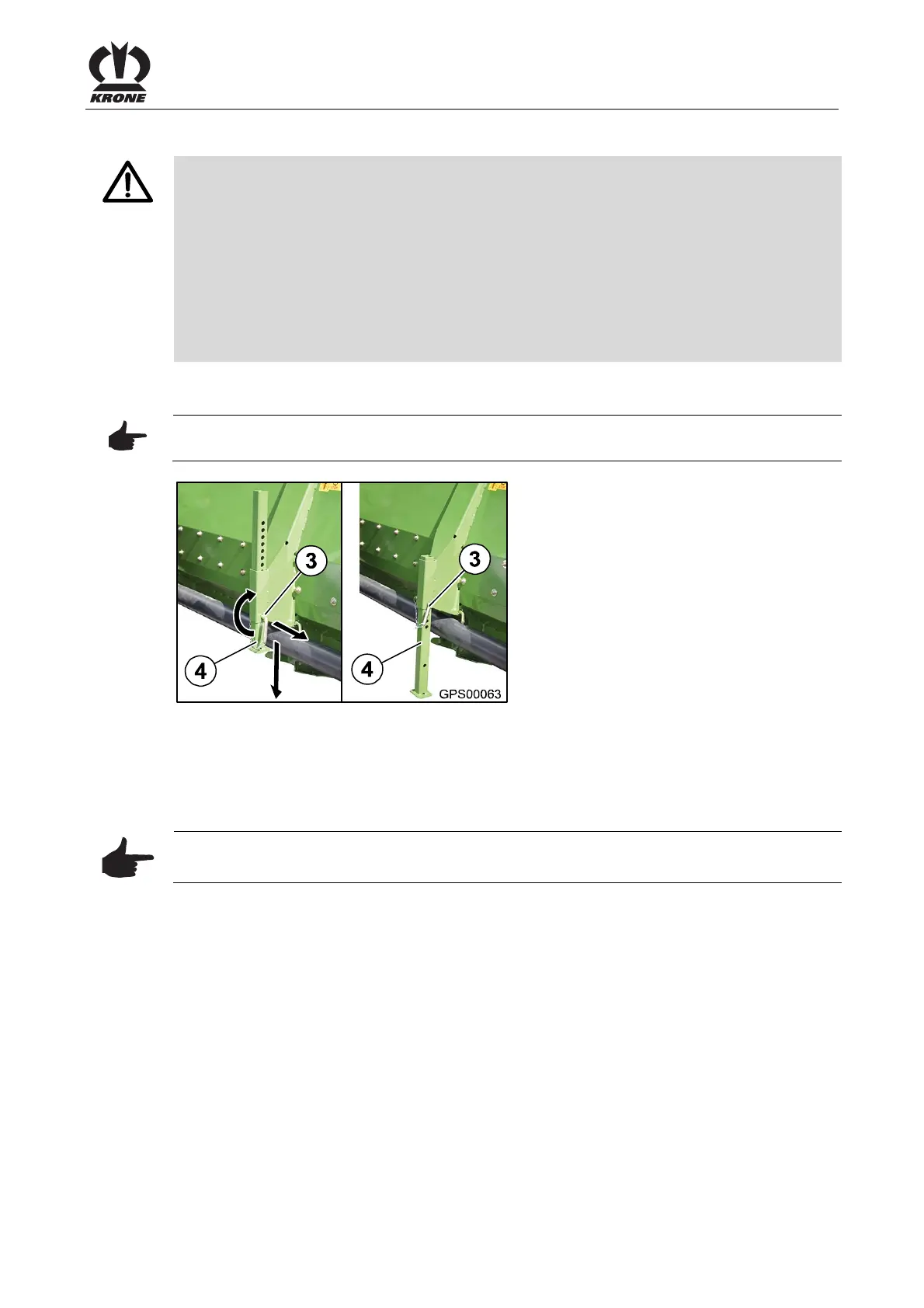

Fig. 21
Pos: 53.15 /BA/Bedienun g /Vorsätze/EASYFLOW/ Abbau T2 EasyFlow 300/BV014 @ 160\mod_13 65580006314_78.doc x @ 1413300 @ @ 1
• Swivel socket pin (3) of the parking supports (4) by 180° upward on both sides and pull
them out.
• Pull out the parking supports (4) and lock them with socket pins (3) in the fifth hole from
below by a rotation of 180°.
Pos: 53.16 /WHB/Allg emeines/EasyFlow 3001/ 3801/Pickup abstel len EasyFlow 300/BV014 Hin weis @ 163\mod_1366097942 243_78.docx @ 1424949 @ @ 1
Note
Always mark out the parking support in the fifth hole from below.
