10.13 Wear Sheets for Trough
GPS00062
2
1
3
1
3

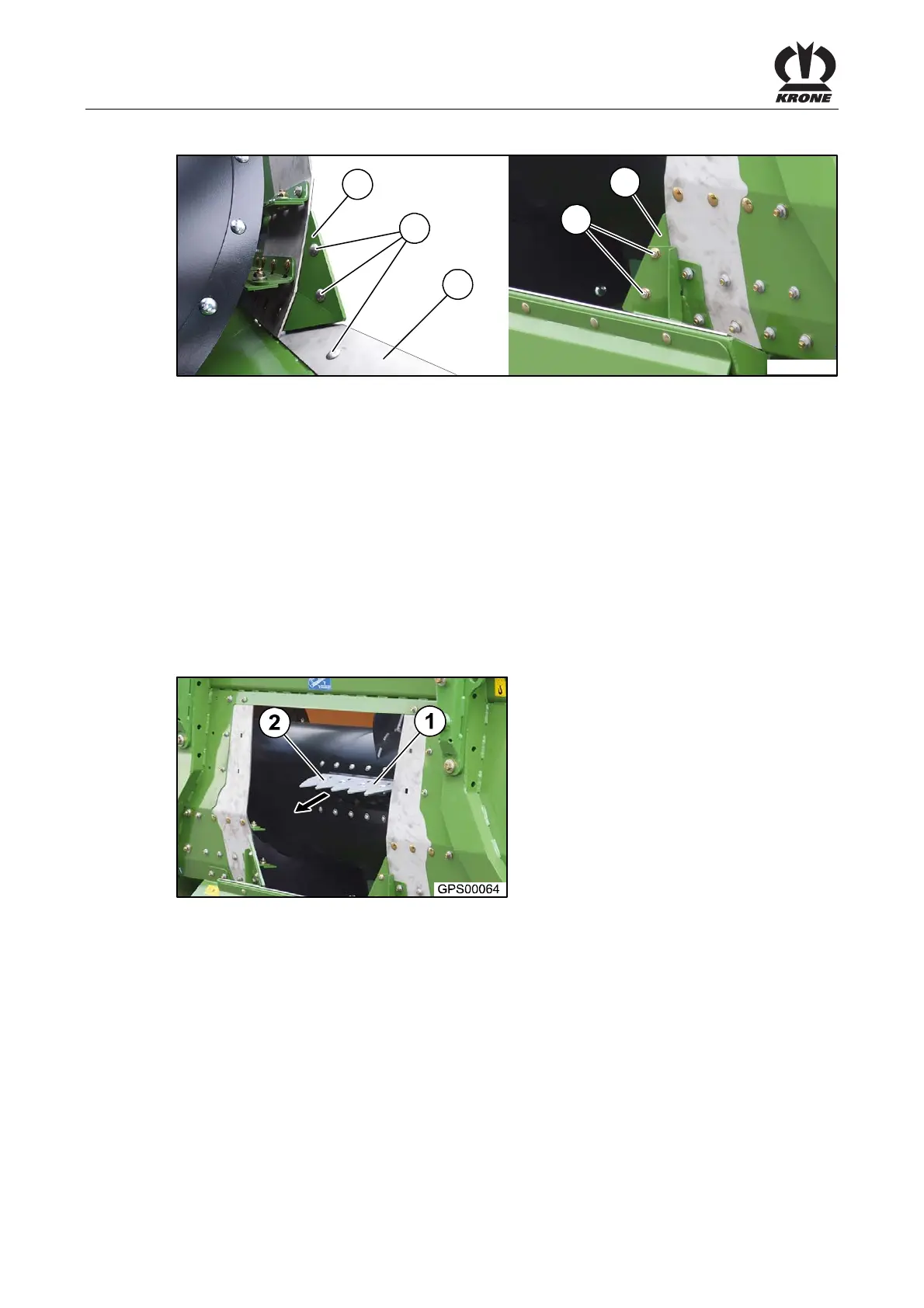

Fig. 43
The wear sheets (1, 2) of the trough are subject to natural wear due to the crop. Therefore they
must be checked for wear once a year, at the latest before the beginning of the season.
Replace them, if necessary.
In case of increased abrasive crops, the wear sheets must be checked for wear several
times a year and they must be replaced, if necessary.
To do this:
• Unscrew the screw connections (3).
• Replace worn wear sheet by new one.
• Ensure that the wear sheet (1) rests neatly against the wear sheet (2).
• Tighten the screw connections (3).
