5.5.2 Adjusting the main angular gearbox
Pos: 45.36 /BA/Inbetr iebnahme/Vorsätze/ Pendelrahmen/Kup plung einstellen Bil d BiG X 480/580__X_Disc 620 @ 336\ mod_14301232620 84_78.docx @ 2557663 @ @ 1
GPS00039
3
2
GPS00048
1
Fig. 10
Pos: 45.37 /BA/Inbetr iebnahme/Vorsätze/ Pendelrahmen/Kup plung einstellen Big X 480/ 580 @ 261\mod_1399367453 066_78.docx @ 1990396 @ @ 1

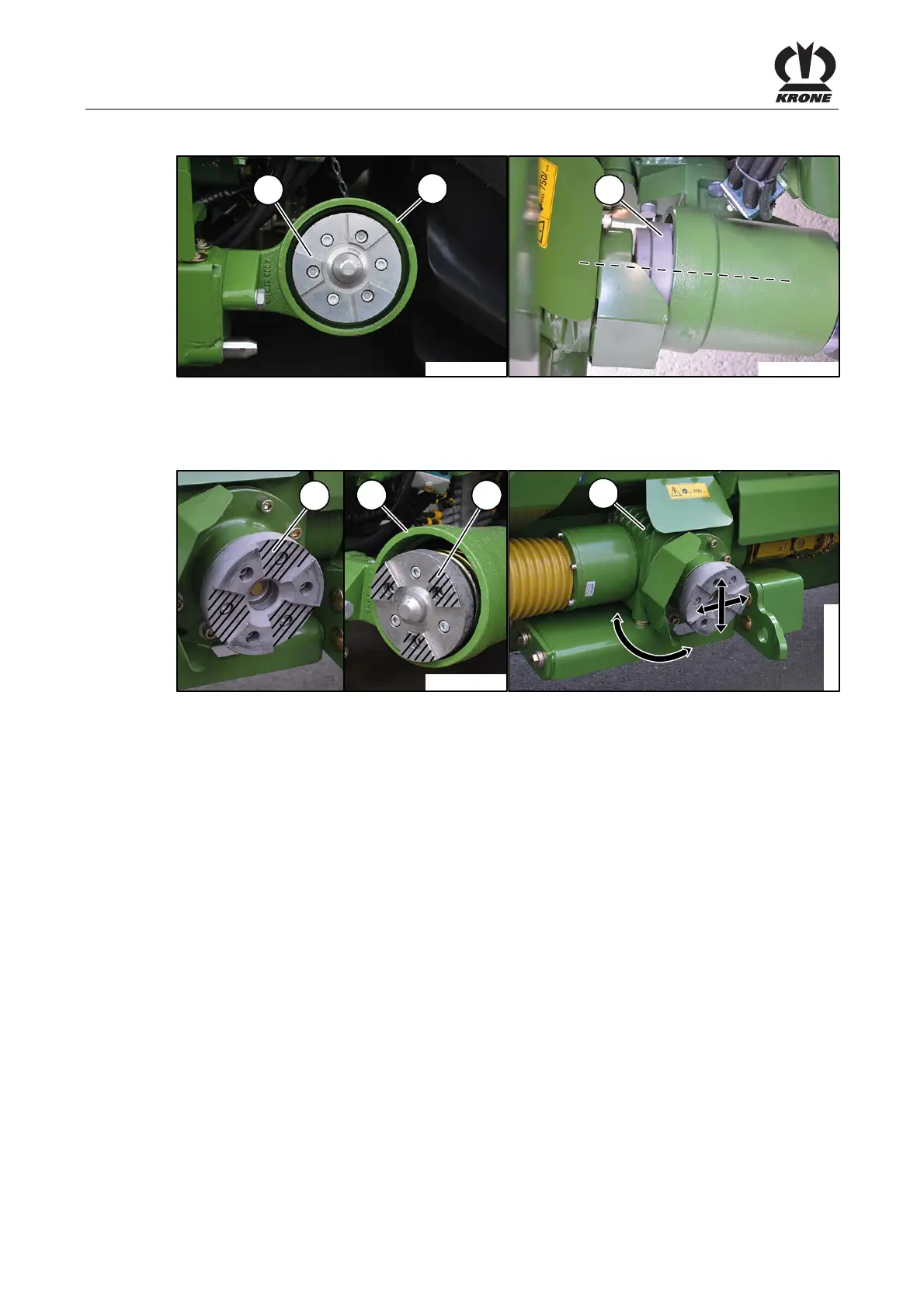

The coupling disc (1) of the front attachment must be aligned with the coupling journal (2) of the
forage harvester until the coupling journal (2) is positioned centrally in the housing (3). The
coupling disc must be positioned evenly and flat on the coupling journal.
Pos: 45.38.1 /BA/I nbetriebnahme/Vorsät ze/Adapterrahmen/ Getriebe einstellen - Einleitung X-Disc 620_Bild @ 336\mod_14301288491 60_78.docx @ 2558310 @ @ 1
GPS00038
5
6
4
GPS00049
7
Fig. 11
Pos: 45.38.2 /BA/I nbetriebnahme/Vorsät ze/Adapterrahmen/ Getriebe einstellen - Einleitung X-Disc 620_Text @ 337\mod_14302197 10996_78.doc x @ 2559970 @ @ 1
Correct position of clutch disc
The clutch disc is correctly aligned when:
– it rests evenly and with its entire surface against the coupling journal.
– the contact area (4) of the clutch disc or the contact area (5) of the coupling journal is flush
(+/- 5 mm) with the front surface of the coupling housing (6).
– the coupling journal is centrically in the coupling housing, i.e. it does not rub against the
coupling housing during operation.
The inclination (I), the side (II) and the height (III) of the main angular gearbox can be adjusted.
