Commissioning
37
Pos: 45.38.4 /BA/I nbetriebnahme/Vorsät ze/Pendelrahmen/Vor satz an den Feldhäcksler anbauen EasyCollect 600- 3, 750-3 @ 328\mod_1 426494918949_78.doc x @ 2511379 @ @ 1
Mounting header on forage harvester
• Mount header on forage harvester.
Pos: 45.38.5 /BA/I nbetriebnahme/Vorsät ze/Pendelrahmen/Kup plungsscheibe kon trollieren X-Disc 620 @ 337\mod_1430219870615_ 78.docx @ 2560001 @ @ 1
Checking the position of the clutch disc
• Check the position of the clutch disc.
When the clutch disc is correctly aligned:
• The setting is OK, the header can be used with forage harvester.
When the clutch disc is not aligned correctly:
• Set the main angular gearbox.
Pos: 45.38.6 /Layout Module /----------------Leerzeile-------------------- @ 240\mod_1395147357027_0.docx @ 1890988 @ @ 1
Pos: 45.38.7 /Überschr iften/Zwischenü berschriften/K- ONeigungseinstellun g (I) @ 326\mod_14259988512 23_78.docx @ 2503940 @ @ 1
Inclination setting (I)
Pos: 45.38.8 /BA/I nbetriebnahme/Vorsät ze/Adapterrahmen/ Getriebe einstellen - Neigungseinstellu ng X-Disc 620_Bild @ 336\ mod_1430146207936_78. docx @ 2558655 @ @ 1

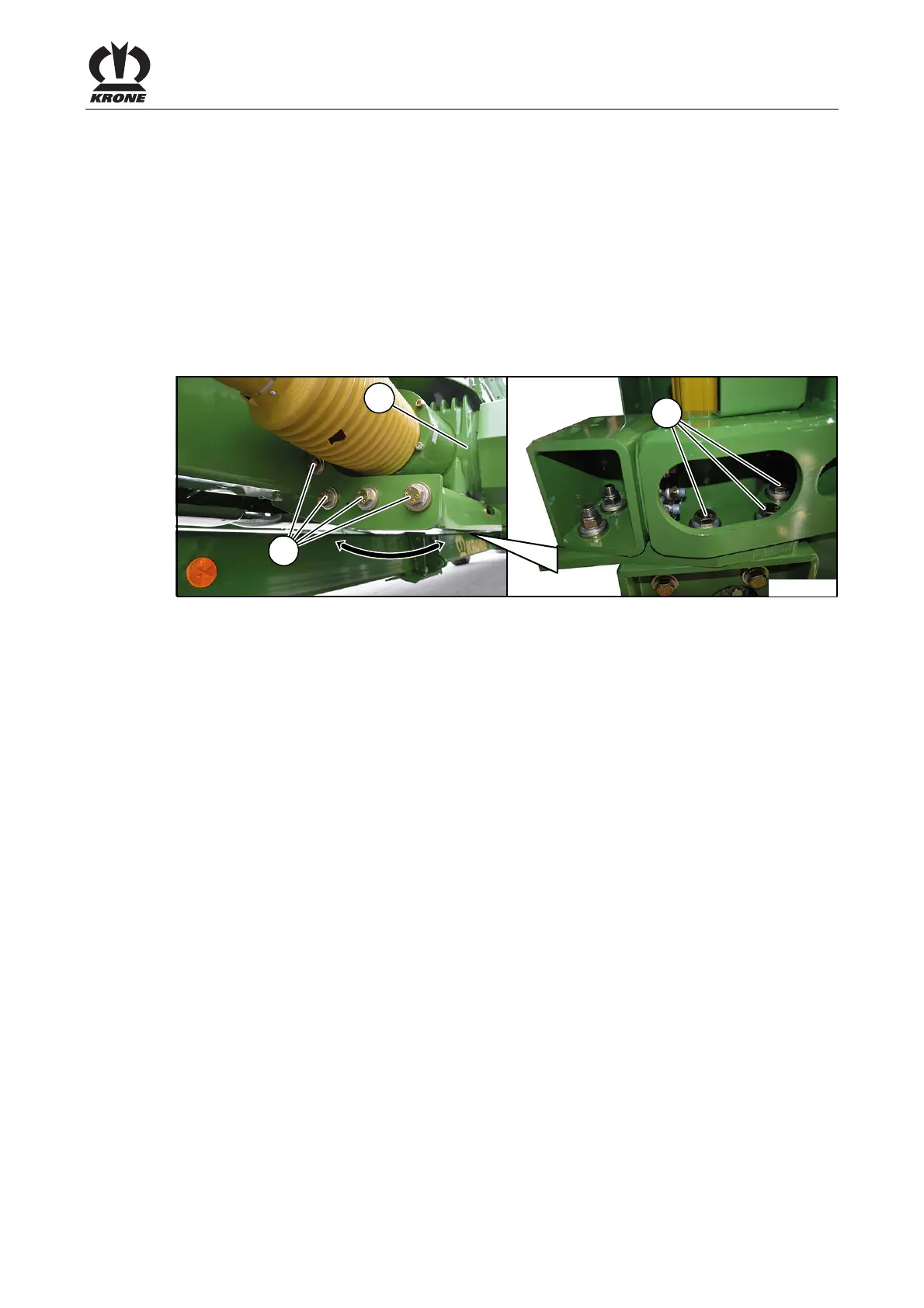

GPS00050
1
2
3
Fig. 12
Pos: 45.38.9 /BA/I nbetriebnahme/Vorsät ze/Adapterrahmen/ Getriebe einstellen - Neigungseinstellu ng X-Disc 620_Text @ 337\mod_1 430220151171_78.doc x @ 2560032 @ @ 1
• Unscrew screw connections (1, 2).
• Position main angular gearbox (3) so that the clutch disc rests evenly on the coupling
journal.
• Tighten screw connections (1,2).
